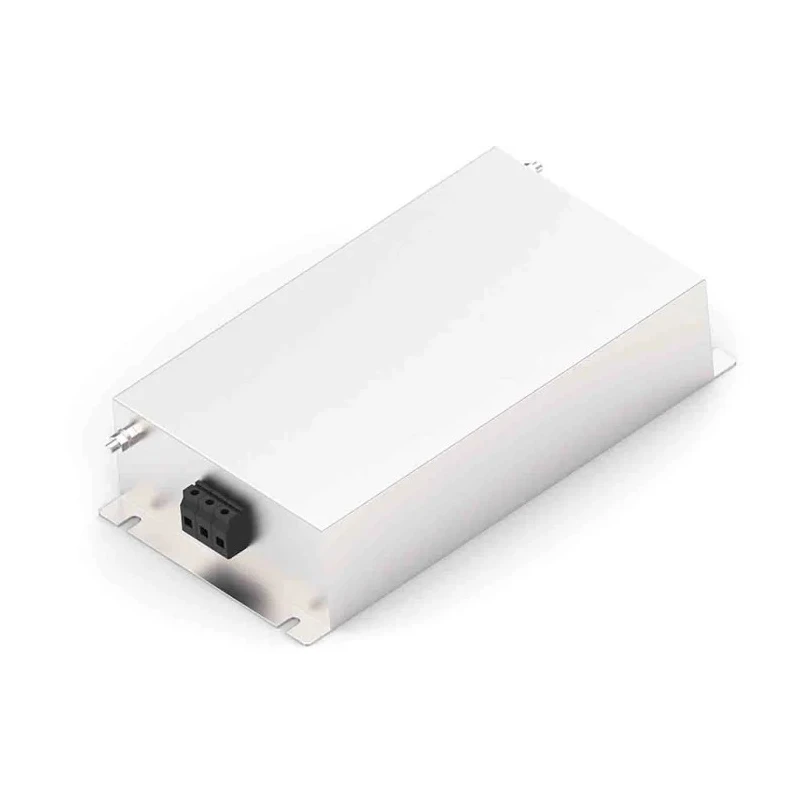

TE Connectivity Chassis Mount EMI Filter Terminal Block 3 Phase 20A 520V AC 50Hz 60Hz 20KEHD10BFPD
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | 20KEHD10BFPD |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | KEH |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 2 |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 20A |
| Number of Phases | 3 |
| Leakage Current | 5mA |
| Maximum Voltage | 520V ac |
| Standards/Approvals | RoHS |
| Termination Style | Terminal Block |
Key Features
- Designed for EMI attenuation in industrial and HVAC control systems.
- Suitable for 3-phase electrical circuits with terminal block termination.
- Operates reliably within -25°C to 85°C temperature range.
- Features 2-stage filter construction and low leakage current of 5mA.
- Complies with RoHS standards for environmental safety.
- Robust chassis mount design ensures secure installation.
- Universal and cost-effective with high power attenuation performance.
- Manufactured in India ensuring quality assurance.
Product Description
TE Connectivity 20KEHD10BFPD is a high-performance chassis mount EMI filter designed for 3-phase power line applications requiring 20A maximum current and 520V AC maximum voltage, with operating frequency 50Hz to 60Hz.
This EMI filter utilizes a 2-stage configuration with terminal block termination for secure connections and optimal noise suppression. Its chassis mount design facilitates easy integration into control panels and industrial equipment.
Operating temperature spans from -25 degrees Celsius to +85 degrees Celsius, allowing use in demanding HVAC systems, rectifiers, and industrial control environments. The filter features a low leakage current of 5mA and meets RoHS environmental compliance standards, ensuring both safety and regulatory adherence.
TE Connectivity's KEH series is recognized for universal applicability and cost-effectiveness, delivering reliable power attenuation and electromagnetic interference reduction essential for maintaining equipment performance and longevity.
Designed for EMI attenuation in industrial and HVAC control systems. Suitable for 3-phase electrical circuits with Terminal Block termination. Operates reliably within -25°C to 85°C temperature range. Features 2-stage filter construction and low leakage current of 5mA.
Complies with RoHS standards for environmental safety. Robust chassis mount design ensures secure installation. Universal and cost-effective with high power attenuation performance. Manufactured in India ensuring quality assurance.
This EMI filter is ideal for industrial, HVAC, manufacturing, and commercial electrical equipment requiring noise suppression. Choose TE Connectivity filters for durable and efficient power line interference reduction. Browse our extensive range of power line filters and related components from TE Connectivity at EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 20A.
This model operates at a maximum voltage of 520V AC.
It operates reliably within a temperature range of -25°C to 85°C.
The filter uses terminal block termination for secure connections.
Yes, it complies with RoHS standards for environmental safety.
This model is suitable for 3-phase electrical circuits.
The leakage current is low at 5mA.
It features a robust chassis mount design for secure installation.
The operating frequency for this filter is 50Hz to 60Hz.
The filter utilizes a 2-stage construction for optimal noise suppression.
This model is manufactured in India, ensuring quality assurance.
It is ideal for industrial, HVAC, manufacturing, and commercial electrical equipment requiring noise suppression.
