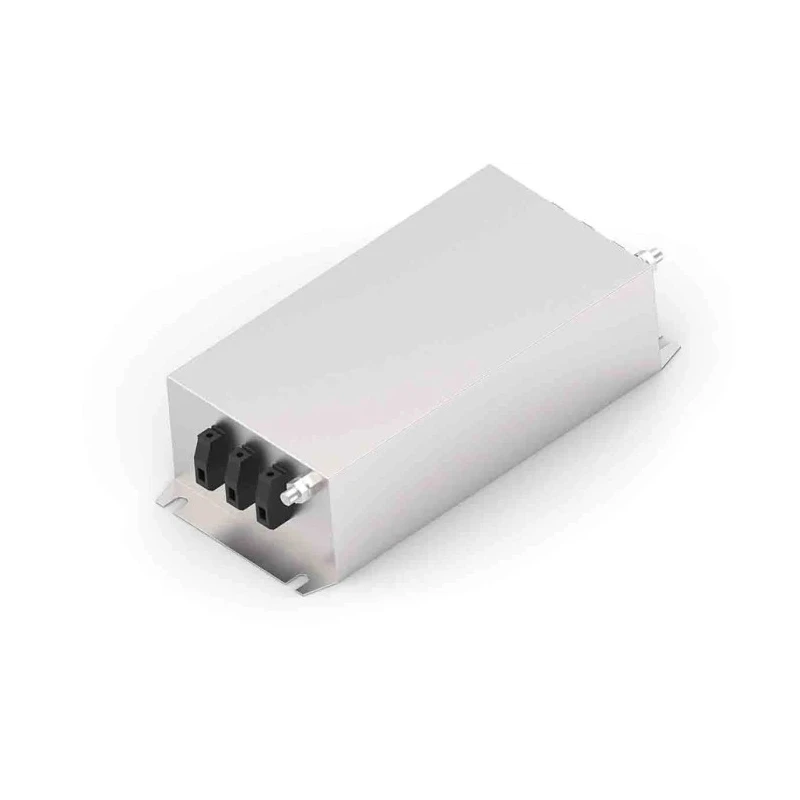

TE Connectivity Chassis Mount 3-Phase EMI Filter Terminal Block 440V AC 100A KEH 100 100KEHD10AFPD
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | 100KEHD10AFPD |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | KEH |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 2 |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100A |
| Number of Phases | 3 |
| Leakage Current | 6mA |
| Maximum Voltage | 440V ac |
| Standards/Approvals | RoHS |
| Termination Style | Terminal Block |
Key Features
- Designed for 3-phase power systems with a 2-stage KEH series configuration.
- Operates effectively within -25°C to 85°C temperature range.
- Features a chassis mount and terminal block termination for secure installation.
- Leakage current is limited to 6mA, ensuring minimal energy loss.
- Conforms to RoHS standards for environmental compliance.
- Provides reliable EMI attenuation suitable for HVAC, rectifier, and industrial control systems.
- Universal design compatible with global 50Hz and 60Hz power frequency.
- Manufactured in India ensuring quality and local production standards.
Product Description
TE Connectivity 100KEHD10AFPD is a high-performance 3-phase EMI filter designed for chassis mounting in industrial power line applications. With a maximum current rating of 100A and a maximum voltage rating of 440V AC, it ensures reliable suppression of electromagnetic interference in complex electrical systems.
The filter operates within the standard frequency range of 50Hz to 60Hz and incorporates a 2-stage KEH series design featuring a single stage delta configuration (3-wire plus ground). Its compact chassis mount form factor and terminal block termination style facilitate secure and convenient installation in electrical panels and systems.
Operating reliably within a temperature range of -25°C to +85°C, this EMI filter maintains low leakage current levels at 6mA, helping to improve energy efficiency. Compliance with RoHS standards guarantees adherence to environmental and safety requirements commonly demanded in industrial and commercial settings.
Typical applications for the TE Connectivity KEH 100 EMI filter include HVAC systems, rectifiers, and industrial control units, where it provides universal compatibility and cost-effective power attenuation. Its design supports stable operation across a wide range of harsh industrial environments.
Rated for maximum current of 100A and voltage of 440V AC. 3-phase, 2-stage KEH series configuration ensures robust EMI attenuation. Chassis mount with Terminal Block termination for ease of installation. Operating temperature range from -25°C to +85°C suits diverse environments.
Low leakage current of 6mA enhances efficiency and safety. RoHS compliant to meet global environmental standards. Ideal for industrial, HVAC, rectifier, and control system applications. Manufactured in India, reflecting quality standards.
This product is part of the Power Line Filters category at EnvMart, suitable for electronics, power connectors, and control system integrations. Explore more EMI filters and power line filters for comprehensive electromagnetic compatibility solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 100A.
It supports a maximum voltage of 440V AC.
The operating temperature range is from -25°C to +85°C.
It features a terminal block termination style for secure installation.
The leakage current is limited to 6mA, which helps improve energy efficiency.
It incorporates a 2-stage KEH series design with a single stage delta configuration (3-wire plus ground).
Yes, it conforms to RoHS standards for environmental compliance.
Typical applications include HVAC systems, rectifiers, and industrial control units.
It operates effectively within the standard frequency range of 50Hz to 60Hz.
This product is manufactured in India, ensuring adherence to local production standards.
It is designed for chassis mounting, which facilitates secure installation in electrical panels.
This filter is designed for 3-phase power systems.
