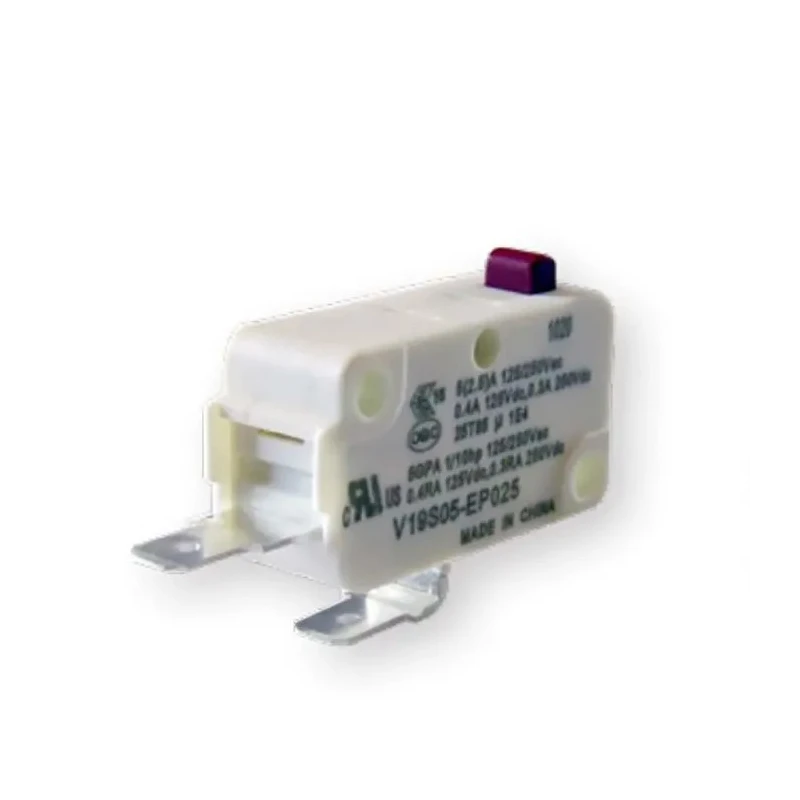

Honeywell Technologies Pin Plunger Micro Switch 5A 250 V ac SPCO IP40 V19S05-HZ015

Honeywell Technologies V19S05-HZ015 Pin Plunger Micro Switch is a high-quality, cost-effective solution designed for industrial and electrical systems requiring precise switching control. Rated at 5 amperes and 250 V ac with a single pole changeover (SPCO) contact configuration, this unsealed microswitch is engineered to meet rigorous operational demands across various sectors including automation, manufacturing, HVAC systems, and industrial control panels.

The pin plunger actuator mechanism provides accurate and repeatable operation, ensuring system reliability. The housing is constructed from polybutylene terephthalate, offering excellent mechanical durability and resistance against wear. With an IP40 rating, it safeguards against ingress of solid particles larger than 1 mm, suitable for moderate environmental conditions.

Operating efficiently between -25°C and 85°C, it is capable of deployment in diverse climates and industrial settings. The compact size with dimensions of length 27.8 mm, width 10.3 mm, and depth 15.9 mm allows for space-saving installations in constrained electrical enclosures.

The switch enjoys a robust mechanical life expectancy of one million cycles, ensuring long-term performance with minimal maintenance. Compliance with multiple international standards such as RoHS, cUL, CSA, ENEC, UL, and CQC underlines its reliability and safety for use in industrial and commercial applications.

Actuator type is pin plunger ensuring precise actuation. Switch contact current is rated at 5 amperes for robust electrical load handling. Contact configuration is SPCO providing single pole changeover functionality. Operates within a temperature range of -25°C to 85°C for versatile environmental usage.

Housing material is durable polybutylene terephthalate offering mechanical strength. IP40 rated housing protects against solid objects greater than 1 mm. Mechanical life of 1,000,000 cycles ensures long-term reliability.

Compact dimensions with length 27.8 mm, width 10.3 mm, depth 15.9 mm for space-efficient integration. Unsealed microswitch type for standard industrial applications. Standards compliance includes RoHS, cUL, CSA, ENEC, UL, and CQC certifications.

This product is manufactured in China and is ideal for industrial automation, electrical control systems, and safety applications requiring dependable switching components. Explore more Honeywell Technologies Micro Switches and related products on EnvMart for your sourcing needs.
