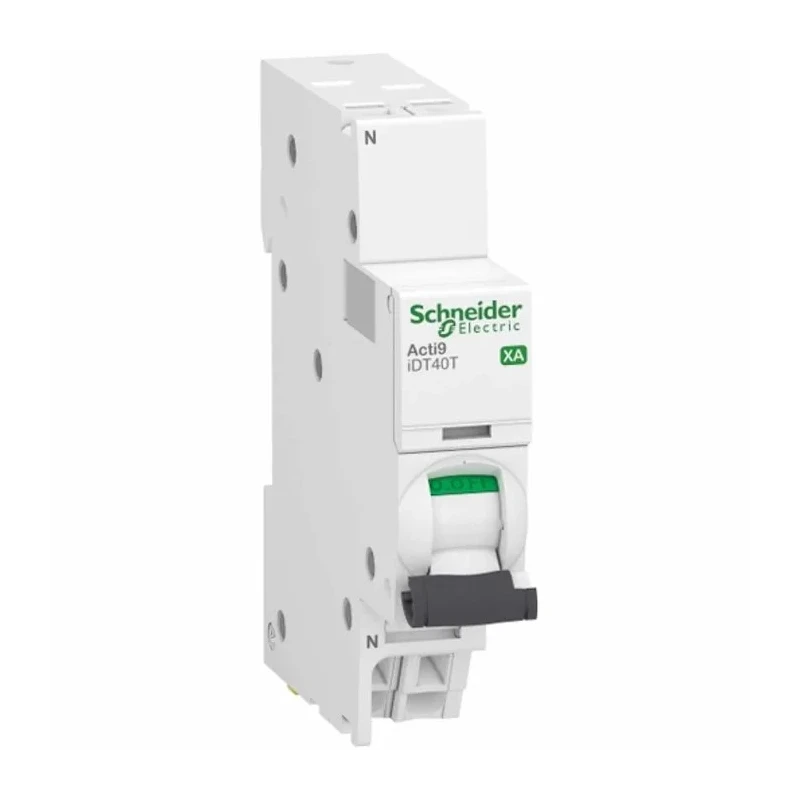

Schneider Electric Acti9 Acti9 iDT40 Miniature Circuit Breaker, 1-Pole, 6A, Type C, 230V AC, 7.5 kA Breaking A9PA2606

Schneider Electric A9PA2606 is a single-pole Miniature Circuit Breaker featuring a 6 ampere current rating and Type C thermal magnetic tripping mechanism. This device is designed for reliable protection against overload and short circuit currents in residential, commercial, and industrial electrical circuits.

The breaker is sized at 85 mm height, 74 mm depth, and 18 mm width, with screw terminals and DIN rail mounting for secure installation in electrical panels. Its IP20 rating provides protection suitable for indoor environments.

Fully compliant with international standards IEC/EN 60898-1 and IEC/EN 60947-2, the Acti9 iDT40 series circuit breaker delivers quality assurance and ease of use with a toggle switch for manual reset. The product is built to protect circuits and personnel, especially in TN and IT neutral systems, making it suitable for multiple electrical applications including commercial, industrial, and residential installations.

The device offers a breaking capacity of 7.5 kiloamperes, ensuring high fault current interruption capability, enhancing safety and electrical system protection. Manufactured in Hungary, the circuit breaker meets several certifications including CE, REACH, and RoHS.

Key features include its compact form factor and standardized mounting and terminal types facilitating integration into existing setups. The product supports electrical automation and distribution needs across multiple sectors such as industrial facilities, laboratories, and HVAC systems.

Designed for 1-pole circuit protection with a 6 amp current rating. Thermal magnetic tripping mechanism ensures safety against overloads and short circuits. Type C tripping characteristic suitable for inductive loads. Mounts easily on DIN rail with screw terminal type connections.

Compact dimensions with 85mm height, 74mm depth, and 18mm width. IP20 rated protection for indoor electrical panel use. Toggle switch actuator for manual reset functionality. Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

Manufactured in Hungary ensuring quality and performance. Explore more Schneider Electric circuit breakers and electrical protection devices at EnvMart for robust and certified electrical safety solutions.
