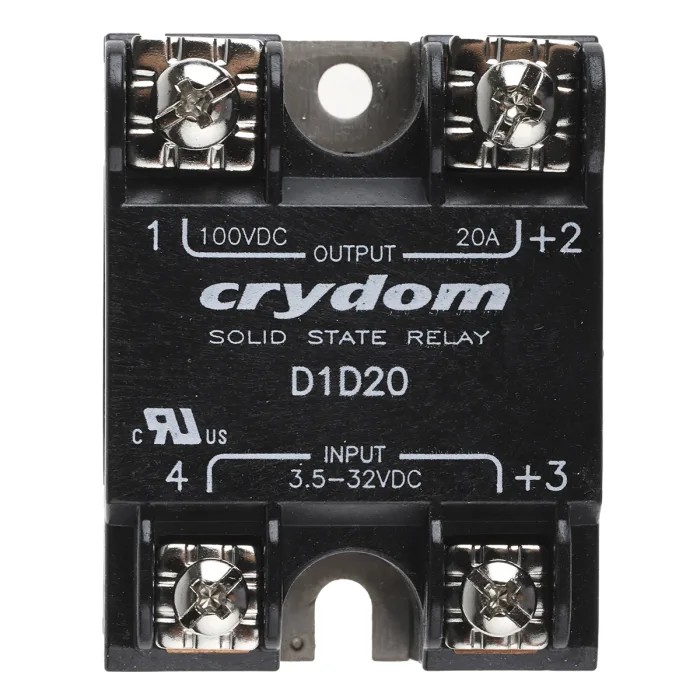

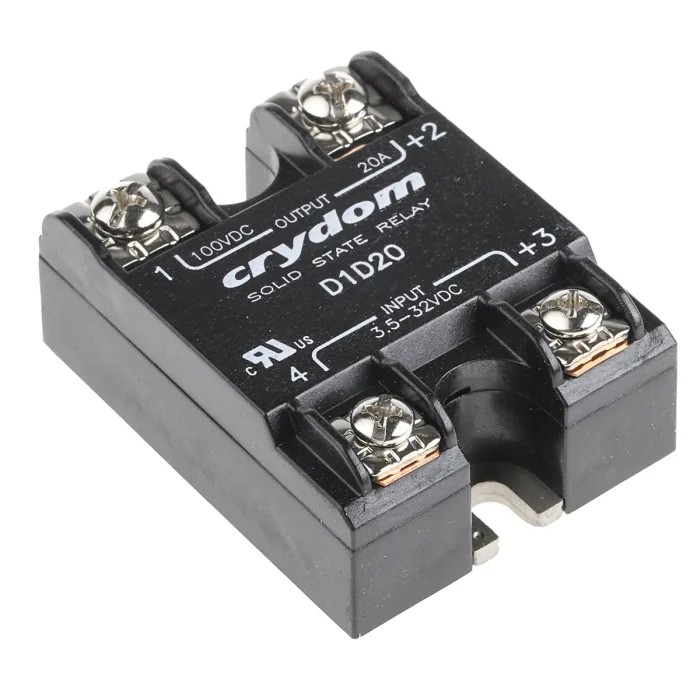

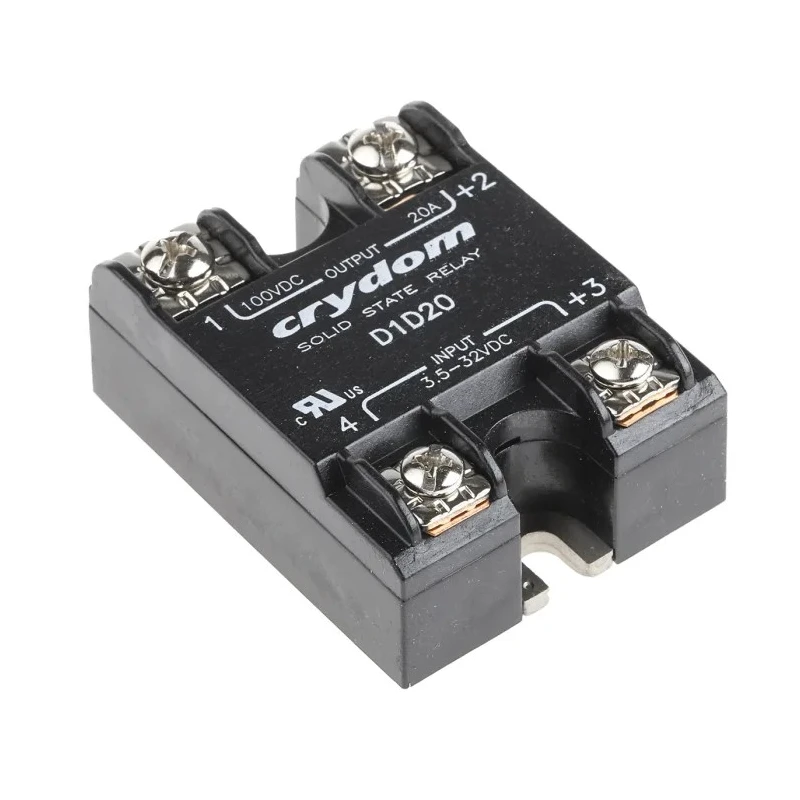

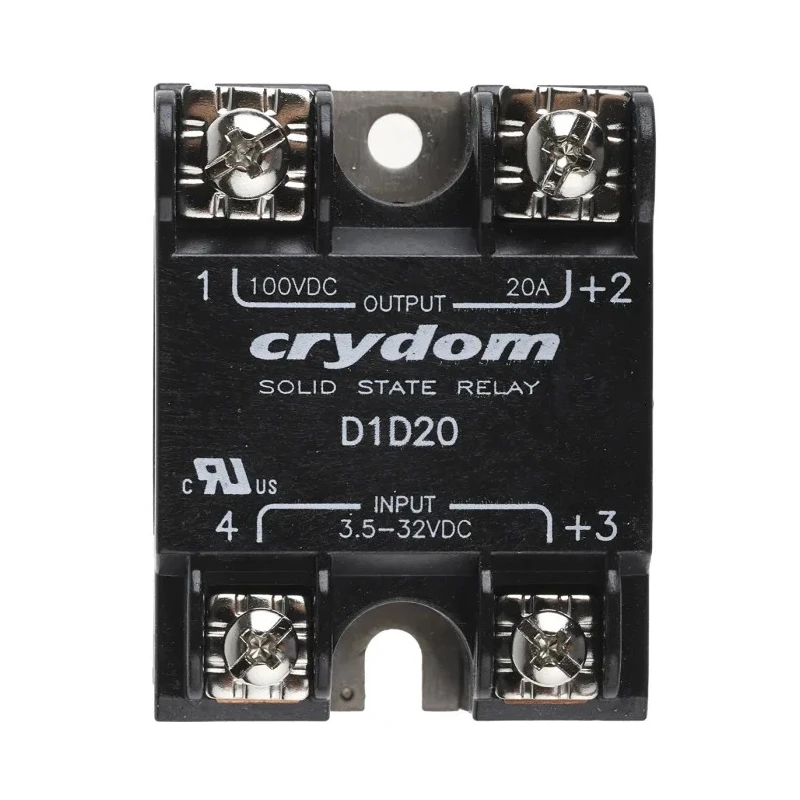

Crydom Solid State Relay Panel Mount 20 A Load 100 V Load 32V Control D1D20

Crydom D1D20 Solid State Relay is a panel mount relay capable of handling a 20 ampere load at 100 volts, with control voltages up to 32 volts, designed for reliable and efficient switching in industrial and commercial settings.

This relay converts electrical signals into optical signals processed via an integrated transistor, eliminating mechanical contact wear and ensuring high durability. It is suited for precise control in sensitive environments such as medical devices, manufacturing automation, and electrical panels.

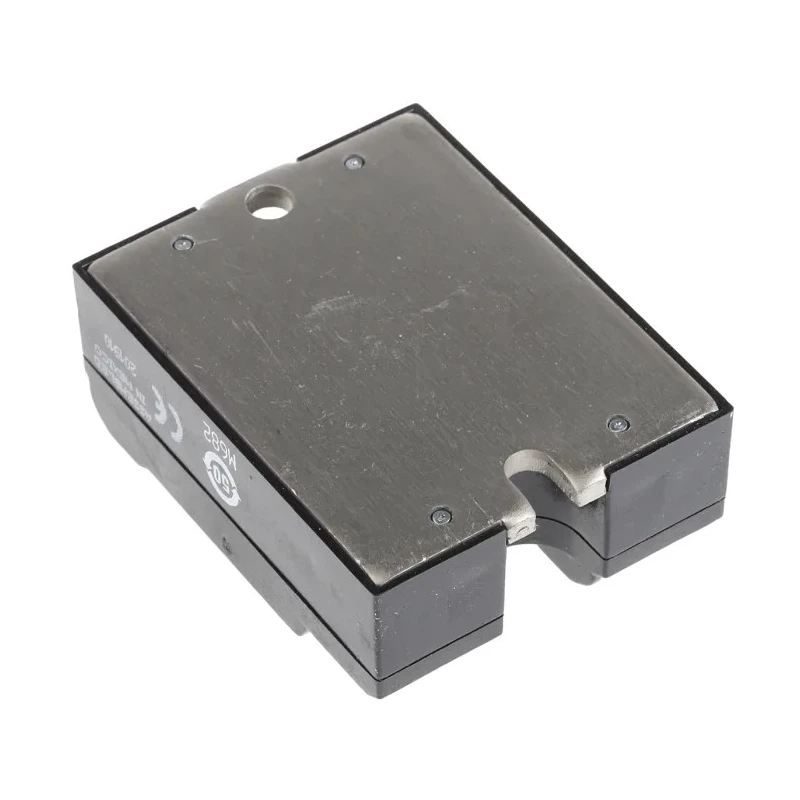

The robust aluminium baseplate provides excellent corrosion resistance and impact durability, supporting long-lasting operation in challenging industrial environments. With a wide operating temperature range from -20°C to 80°C, it can function reliably under diverse climatic conditions.

Featuring zero cross switching, the relay minimizes electrical interference and switching noise, making it ideal for control circuits requiring smooth operation. The device is fitted with screw terminals for secure panel mounting, simplifying installation and maintenance.

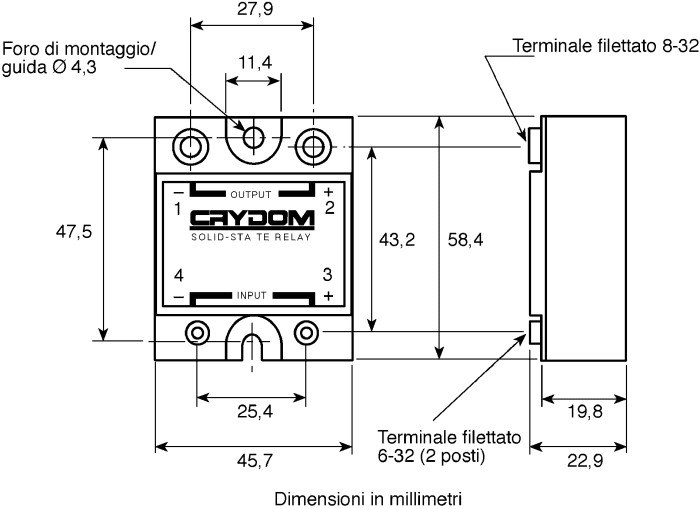

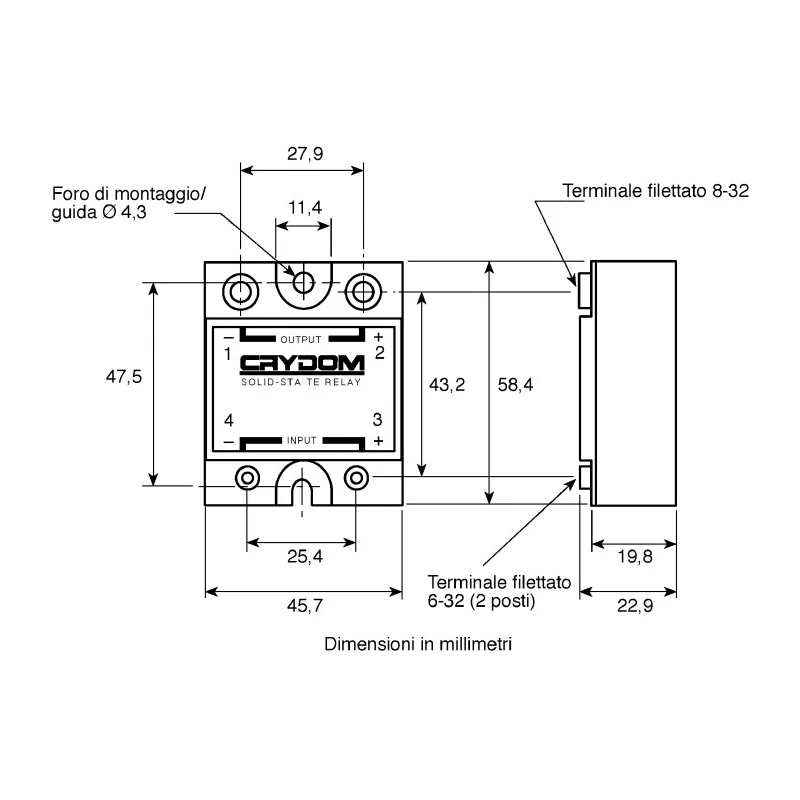

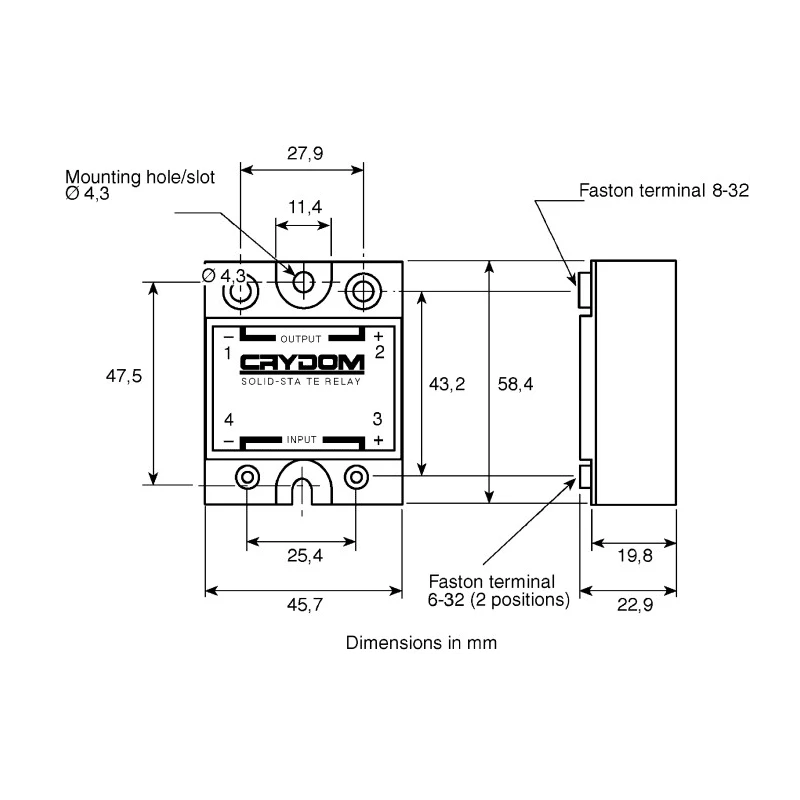

Its compact size of 45.7 mm length, 22.6 mm width, and 23 mm height allows convenient integration into control panels and electrical enclosures. The relay has a low off-state leakage current of 0.3 mA and a capacitance of 8 pF, ensuring energy efficiency and minimizing stray currents.

With certifications including UR, CSA, and compliance with RoHS directives, this product meets rigorous quality and safety standards. The unit is manufactured in Mexico, guaranteeing global manufacturing quality.

This solid state relay is an excellent choice for electrical automation, HVAC systems, manufacturing control panels, process control, and other industrial electronic equipment applications requiring compact, fast, and durable switching devices.

Has a maximum load current of 20 A for versatile power handling. Operates with a control voltage range between 3.5 V DC and 32 V. Features a panel mount design with screw terminals for secure installation. Incorporates zero cross switching for reduced electrical noise.

Rated IP20 protection ensuring reliable indoor operation. Wide operating temperature range from -20°C to 80°C ideal for varied environments. Compact dimensions: 45.7 mm length, 22.6 mm width, and 23 mm height. Low off state leakage current of 0.3 mA and capacitance of 8 pF for efficient performance.

Constructed with an aluminium baseplate to resist corrosion and mechanical impact. Designed for long operational life with very high MTBF values under normal ambient conditions. Manufactured in Mexico meeting UR, CSA, and RoHS standards.
