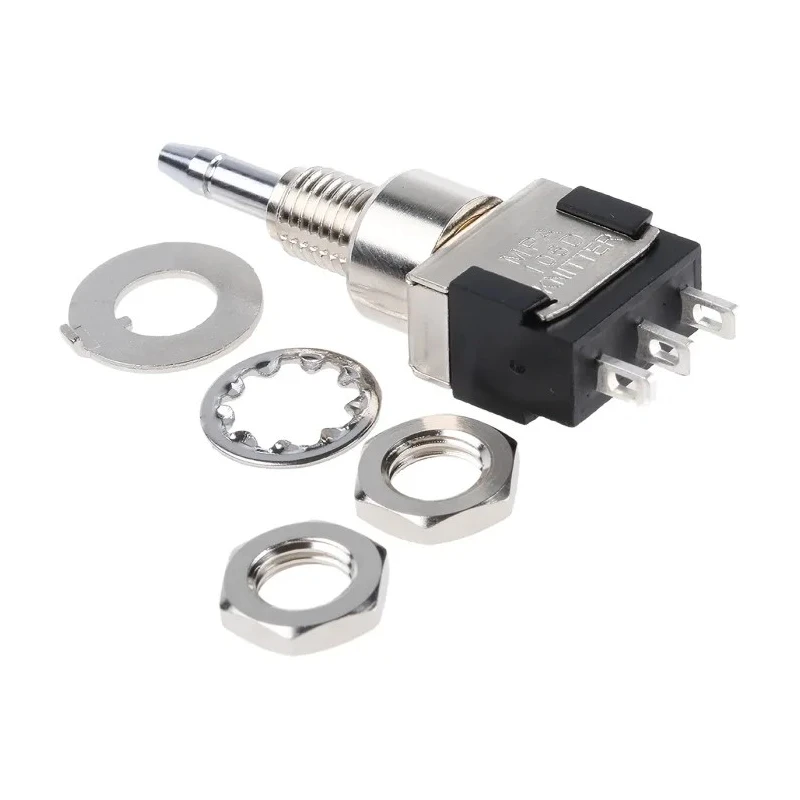

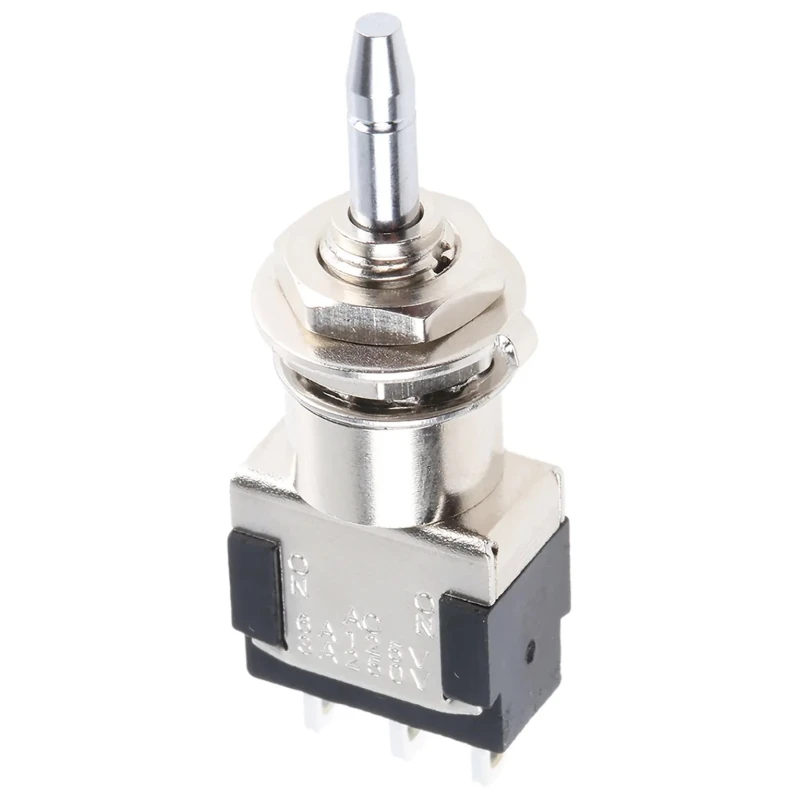

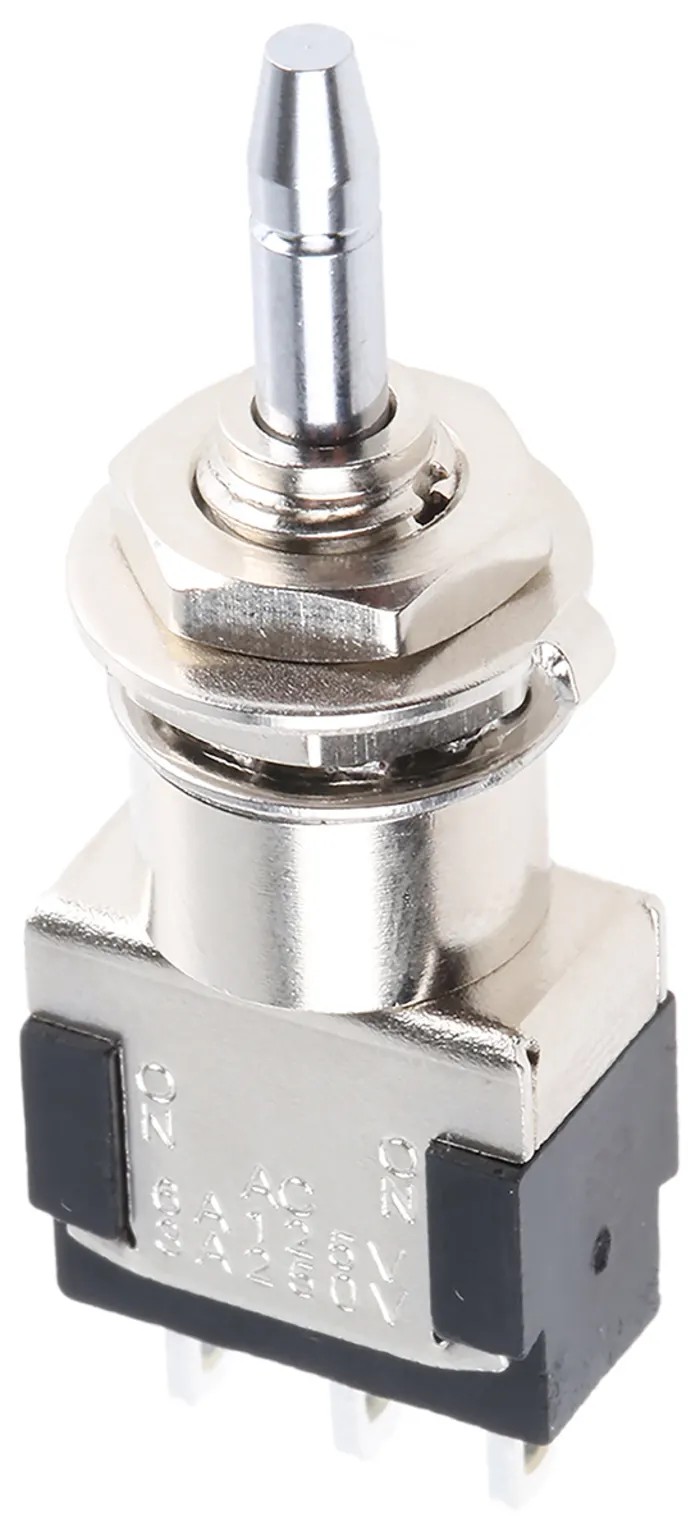

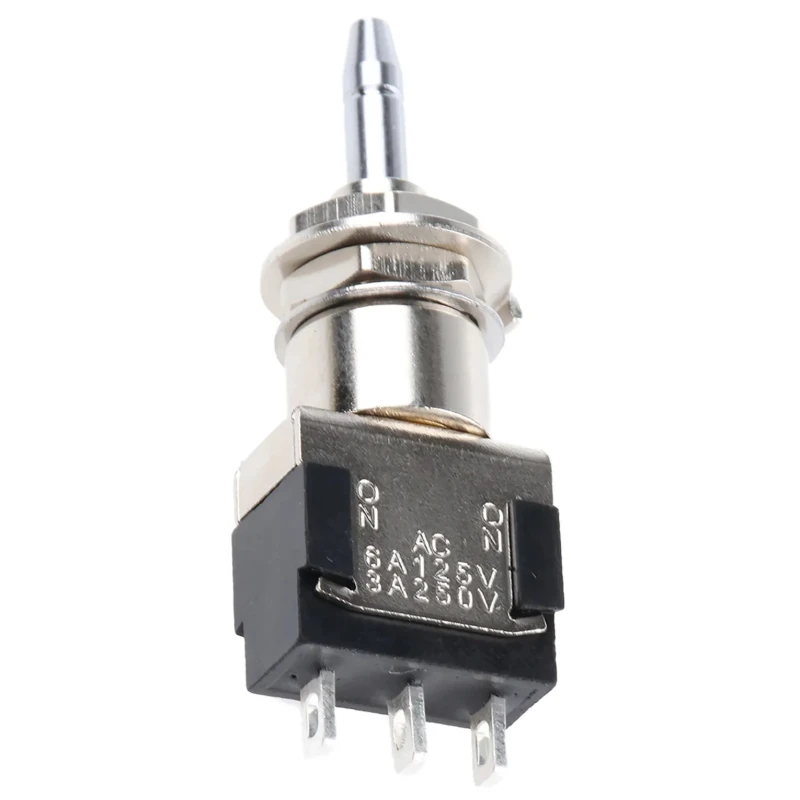

KNITTER-SWITCH MPA Series Miniature Push Button Switch Latching Panel Mount 6.2 mm Cutout SPDT IP67 250V AC MPA 106 D

KNITTER-SWITCH MPA 106 D Miniature Push Button Switch is a high-quality latching panel-mounted switch designed for demanding electrical and automation applications. With a compact 6.2 mm cutout size, this SPDT switch offers reliable on-off operation suitable for precise control in industrial environments.

Constructed with a black rectangular actuator and robust solder terminals, it ensures secure mounting and long-lasting contact integrity. The switch features an IP67 rating, providing dust-tight protection and waterproofing against immersion, making it ideal for harsh and outdoor installations.

It is rated for operation at up to 250 V AC and a contact current of 3A, accommodating a range of electrical loads. The operating temperature range from -45°C to 120°C ensures stable performance even under extreme conditions.

Built to stringent safety standards, the MPA 106 D is CSA and UL approved, meeting industrial regulatory requirements. The epoxy-sealed, flux-proof construction and silver-plated contacts contribute to a low contact resistance below 10mΩ and a high insulation resistance above 1000MΩ, promoting durability and electrical reliability.

The switch is part of the MPA series designed for panel mounting, where mounting hardware is supplied, but the actuator button must be ordered separately for customized usage. The switch provides precise latching operation suitable for panel control systems.

Its IP67 rating ensures protection against dust and water ingress. Epoxy sealing and silver contacts extend service life and minimize maintenance. Operating temperature range accommodates tough industrial environments. Compatible with 250 V AC circuits with a 3A rating.

Complies with CSA and UL safety standards. Panel mounting with solder terminal connections. Reliable SPDT contact configuration for versatile electrical control. Actuator button sold separately for tailored applications.

This miniature Push Button Switch is suited for electrical, industrial automation, and control panel applications. It is engineered for durability and precise switching in commercial and manufacturing environments.
