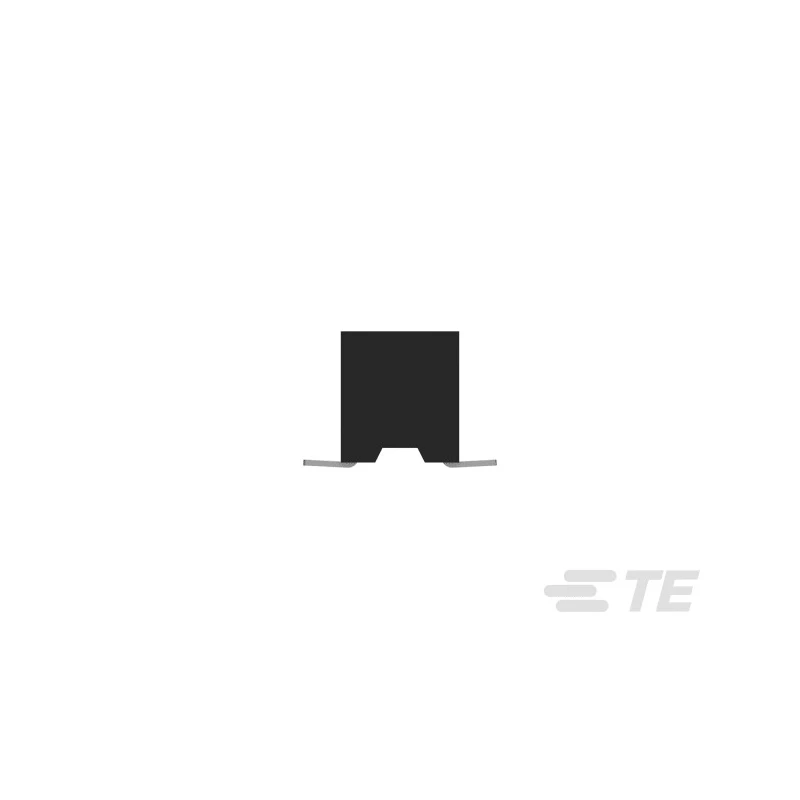

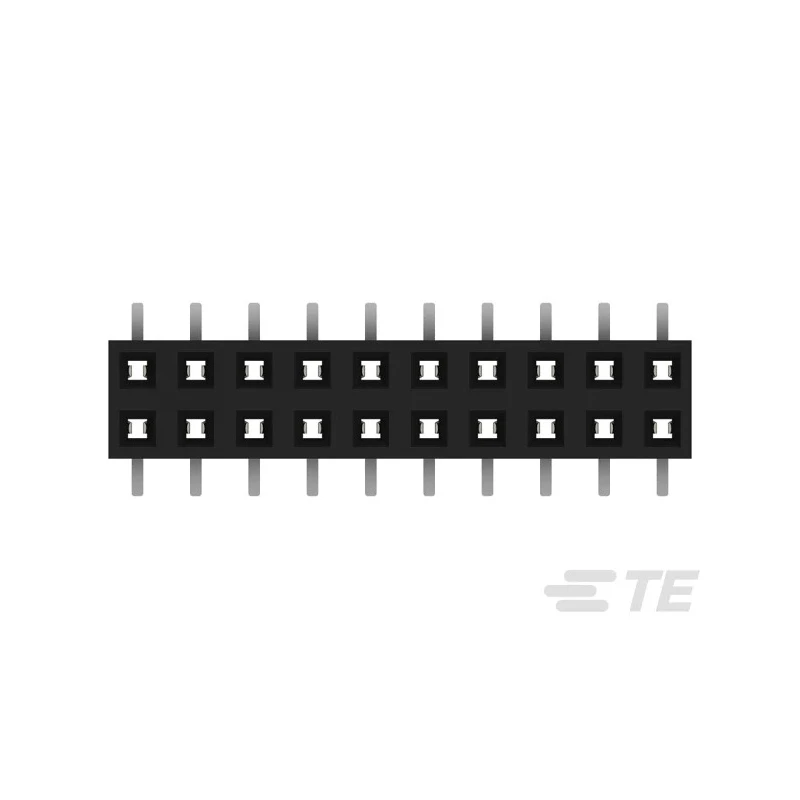

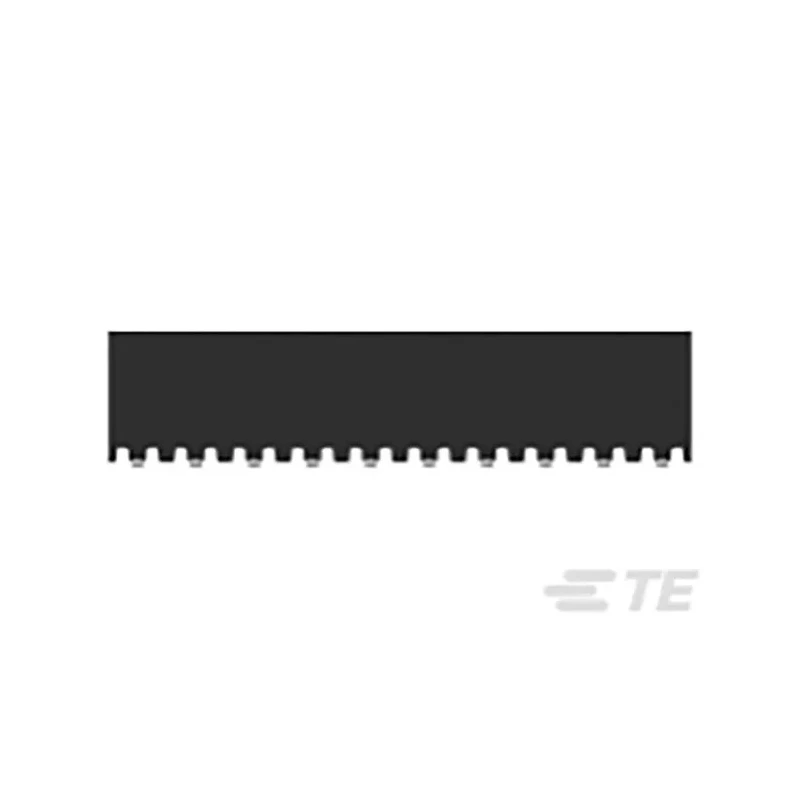

TE Connectivity AMPMODU Series Straight Surface PCB Socket, 20-Contact, 2 Row, 2 mm Pitch, 650V, 12A 2-2314844-0

TE Connectivity 2-2314844-0 AMPMODU Series Straight Surface PCB Socket is a high-performance board-to-board receptacle designed with 20 contacts arranged in 2 rows with a 2 mm pitch. This socket features a liquid crystal polymer housing known for its mechanical strength and heat resistance, making it suitable for demanding electronic and industrial applications.

This surface mount socket supports a current rating of 12 amperes and voltage up to 650 volts. Its bronze contacts, plated with nickel and tin, provide excellent electrical conduction and durability against corrosion. Designed for operation within a wide temperature range of -65°C to 125°C, it is well suited for harsh environments.

The product's dual-beam receptacle contacts and straight orientation optimize signal reliability and mechanical stability. The socket supports board thickness from 1.6 mm to 2.4 mm and is available with multiple solder tail lengths, facilitating flexible PCB design and assembly.

Manufactured with environmental care, the socket is halogen-free and low halogen compliant. It occupies 38% less PCB space compared to conventional 2.54 mm pitch connectors, enabling higher density circuit board designs. This product is compatible with automated surface-mount and through-hole reflow manufacturing methods for efficient assembly processes.

Ideal for use in industrial control systems, programmable logic controllers (PLCs), servo drives, instrumentation, test equipment, and building automation, this PCB Socket supports reliable, compact, and high-performance electronic assemblies.

Features a straight surface mount design suitable for various PCB layouts. Supports a current rating of 12 amperes at a voltage of up to 650 volts. Constructed with liquid crystal polymer housing for high durability and thermal resistance.

Contacts made of bronze with nickel plating, ensuring corrosion resistance and excellent conductivity. Operates within a temperature range of -65°C to 125°C, suitable for demanding industrial environments. Dual-row configuration with 2 rows and 20 contacts enables compact, high-density connections.

Compatible with automated surface-mount and through-hole reflow soldering processes. Environmentally friendly construction with halogen-free and low halogen materials. Ideal for industrial control, instrumentation, test equipment, servo drives, and PLC applications.
