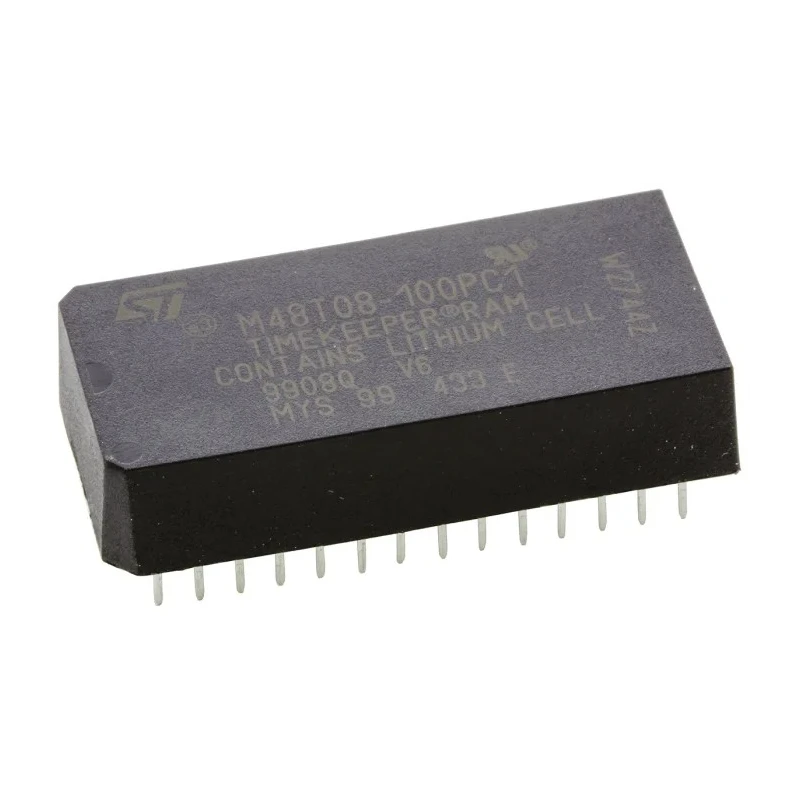

STMicroelectronics 64 kB 100 ns NVRAM 28-Pin PCDIP M48T08-100PC1

STMicroelectronics M48T08-100PC1 is an advanced 64 kB 100 ns non-volatile RAM (NVRAM) module featuring a 28-pin PCDIP through-hole package. It is specifically designed for applications requiring reliable real-time clock functions combined with non-volatile memory storage.

This NVRAM integrates a TIMEKEEPER® SRAM technology that combines traditional SRAM memory with a low-power quartz oscillator and a battery to maintain accurate clock and calendar data even during power interruptions. The device interfaces through a fast parallel 8-bit data bus and supports an 8K x 8-bit memory organization.

With a maximum random access time of 100 ns, it offers rapid data access suitable for timing-critical industrial, laboratory, embedded systems, and communication equipment. The device supports operating temperatures ranging from 0°C to 70°C, making it robust for commercial-grade electronics.

Its electrical characteristics include a minimum supply voltage of 4.75 V, maximum supply voltage of 5.5 V, and a typical supply current of 80 mA, ensuring stable operation with standard 5 V power lines.

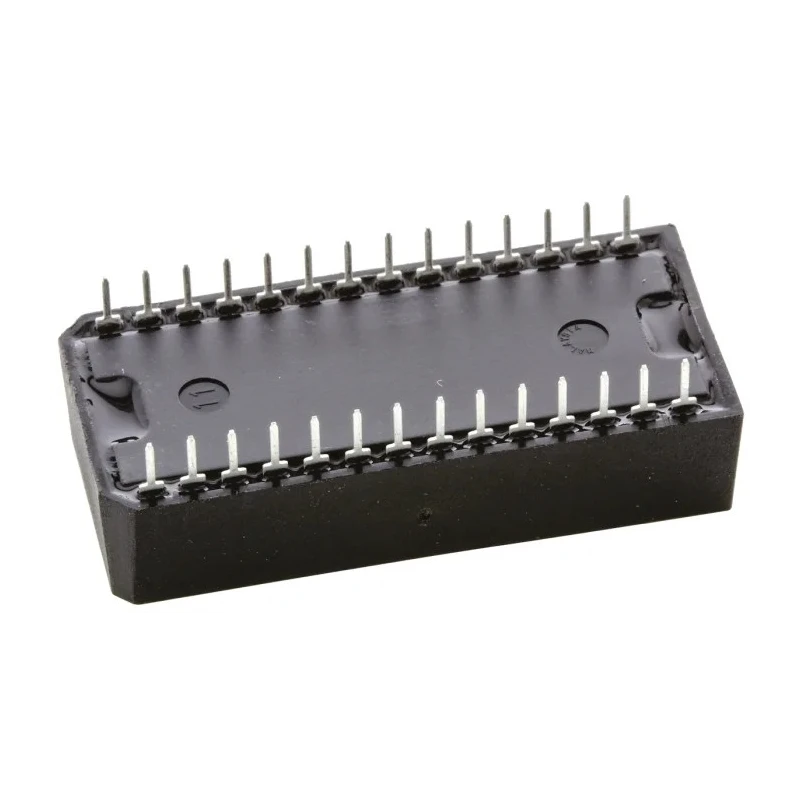

The compact 28-pin PCDIP package measures 39.88 mm in length, 18.34 mm in width, and 8.89 mm in height, facilitating easy integration on printed circuit boards using through-hole mounting techniques.

Manufactured in Malaysia, the M48T08-100PC1 meets industrial quality standards though it holds no specific certifications or automotive standards. Features 64 kB memory size with 8K x 8-bit organization. Offers 100 ns maximum random access time for fast data retrieval.

Utilizes a parallel interface with 8-bit data bus width. Mount type is through hole in a 28-pin PCDIP package. Operating temperature range from 0°C to 70°C. Supply voltage range of 4.75 V to 5.5 V and current of 80 mA. TIMEKEEPER® SRAM provides real-time clock with quartz oscillator and built-in battery backup.

Compact dimensions and robust design support industrial and embedded applications. Manufactured in Malaysia with quality assurance.

This memory chip is widely useful in industries including embedded systems development, industrial automation, communications equipment, and other electronic devices requiring reliable battery-backed timekeeping memory.
