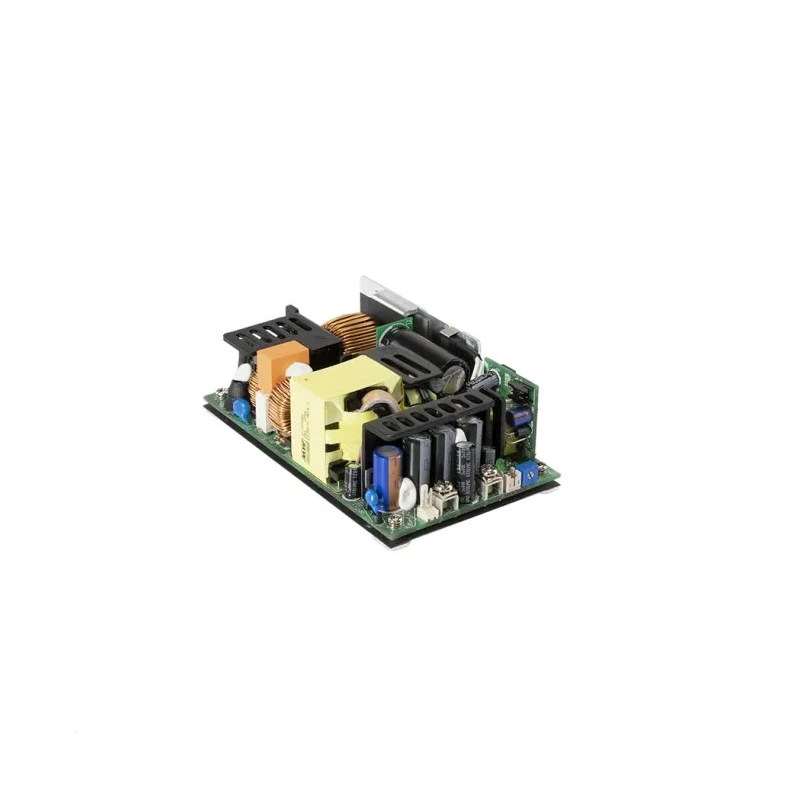

MEAN WELL Switching Power Supply RPS-500-15 15V DC 33.3A 500W PCB Mount High Efficiency RPS-500

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply RPS-500-15 15V DC 33.3A 500W PCB Mount High Efficiency RPS-500

Name: MEAN WELL Switching Power Supply RPS-500-15 15V DC 33.3A 500W PCB Mount High Efficiency RPS-500
Brand: MEAN WELL
SKU: 304470
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Efficiency	92%
Length	127mm
Model	RPS-500-15
Depth	43mm
Gross Weight	460g
Width	43mm
Mount Type	PCB
Series	RPS-500
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit / Overload / Over voltage / Over temperature
Maximum Output Voltage	15V dc
SMPS Output Current	33.3A
Minimum Input Voltage	80V ac

Key Features

High efficiency up to 92% reduces energy consumption.
Operates reliably in temperature range from -30°C to 70°C.
Supports wide input voltage range from 80V AC to 370V DC.
Provides protection against short circuit, overload, over voltage, and over temperature.
Complies with multiple international safety standards such as UL and TUV.
Lightweight design with 460g weight for easy PCB integration.
Built for industrial and medical applications requiring high power density.

Product Description

MEAN WELL RPS-500-15 is a 500W switching power supply designed for industrial and medical use. It features a reliable green PCB-type construction optimized for high power density using a 5 by 3 inch footprint. The power supply accepts a wide input voltage range from 80 to 264VAC (also up to 370V DC) suitable for global applications.

This model delivers a fixed 15V DC output at a maximum current of 33.3A while maintaining high efficiency around 92%, ensuring lower heat dissipation and energy savings. The compact size of 127mm x 43mm x 43mm and low weight of 460g allow easy integration into circuit boards.

The RPS-500-15 is designed to operate reliably over a broad temperature range from -30°C to 70°C and incorporates multiple protective features including safeguards against short circuit, overload, over voltage, and over temperature conditions enhancing device safety and longevity.

Certified to international standards such as UL 62368-1, TUV BS EN/EN 62368-1, IS 13252(Part1)/IEC 60950-1, EAC TP TC 00, CSA C22.2 No. 62368-1, CCC GB4943.1, BSMI CNS143361, and AS/NZS 62368.1, this power supply ensures compliance with stringent safety requirements for medical and industrial electronics.

This power supply series is suitable for diverse industrial environments including medical equipment, electronics manufacturing, communications devices, and laboratory instrumentation. Its low standby power consumption below 0.5W and low leakage current under 220μA optimize energy efficiency and safety.

MEAN WELL offers a 3-year warranty for the RPS-500 series, underscoring the durability and reliability of this switching power supply. Variants include enclosed styles (-C, -TF, -SF) for tailored applications requiring additional protection or different mounting options.

High efficiency up to 92% reduces energy consumption. Operates reliably in temperature range from -30°C to 70°C. Supports wide input voltage range from 80V AC to 370V DC. Includes comprehensive protection features for enhanced safety.

Complies with multiple international safety standards. Compact, lightweight design allows easy PCB mounting integration. Low leakage current and standby power consumption. Suitable for medical, industrial, and laboratory applications.
