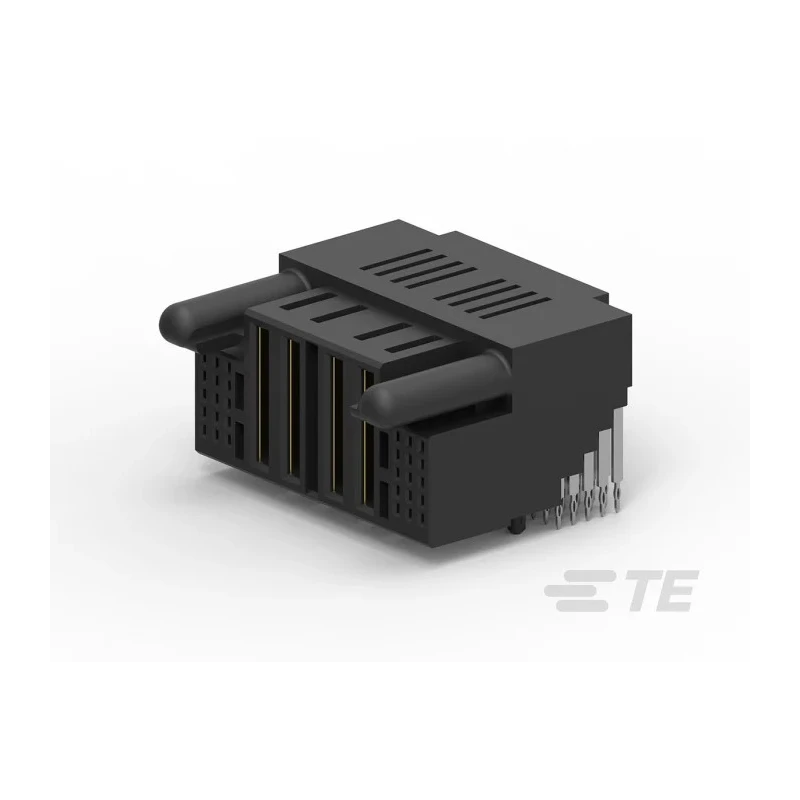

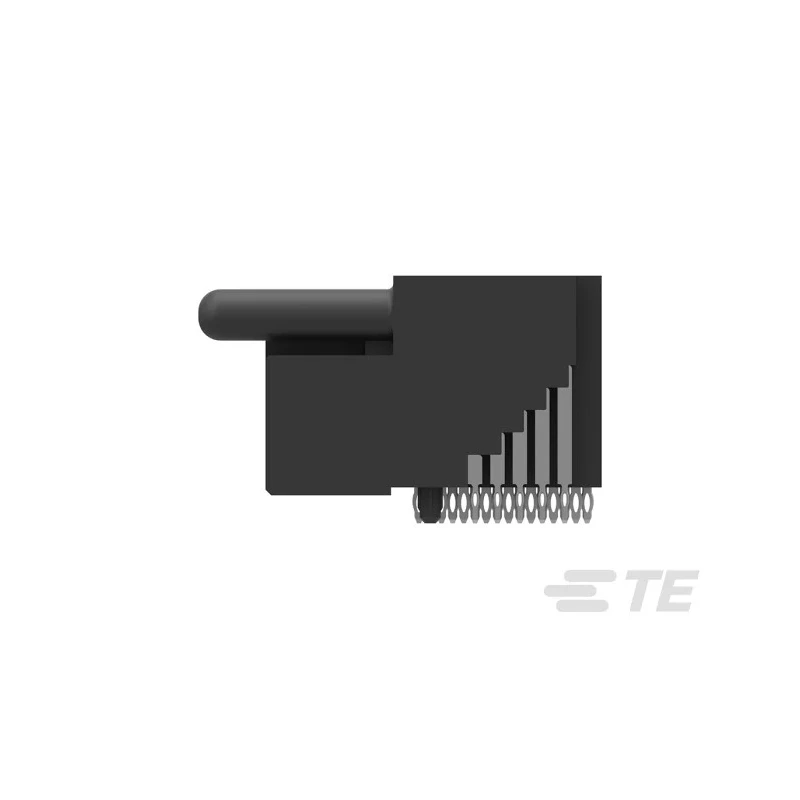

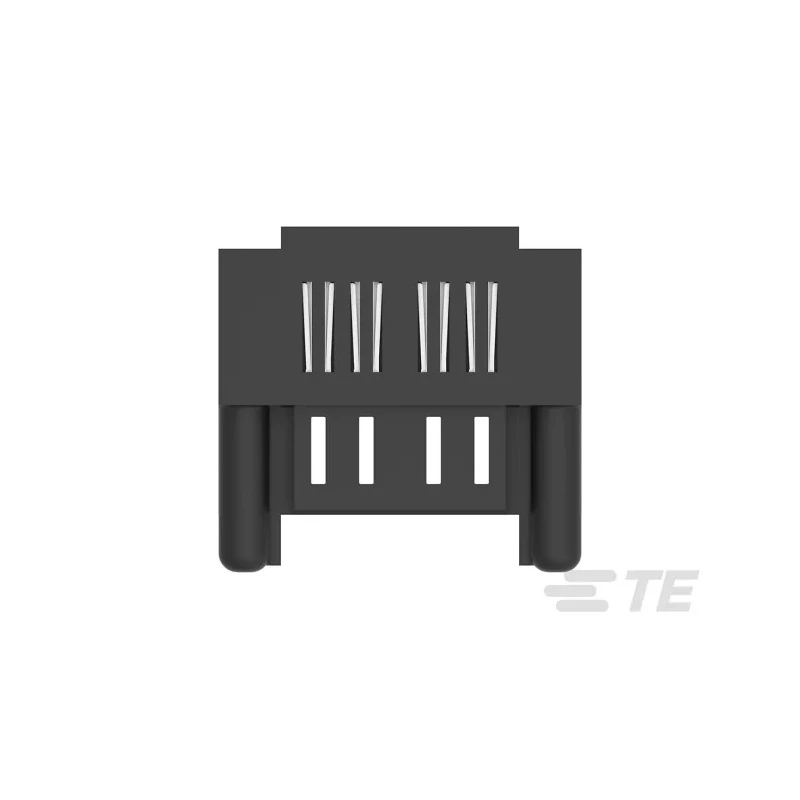

TE Connectivity Multi-Beam Series Right Angle Through Hole PCB Socket, 34-Contact, 5 Row, 5 mm Pitch Press Fit 2204400-1

TE Connectivity 2204400-1 Multi-Beam Series Right Angle Through Hole PCB Socket is a high-performance connector designed to provide robust power and signal connections in complex electronic assemblies. This 34-contact, 5-row PCB socket features a press-fit termination and a 5 mm pitch, optimized for board-to-board connectivity with right-angle orientation. It incorporates TE's innovative six-beam power contacts, which provide three levels of contact sequencing - ground, power/signal, and enable PIN - ensuring reliable and efficient electrical performance.

The socket housing is made of thermoplastic material that offers excellent durability and electrical insulation. Its design includes a reduced mating force approximately 40% lower than conventional MULTI-BEAM XLE connectors, making it easier to install and reducing stress on mating components. Additionally, the integrated signal pin and guide design on each side save 8 mm of overall length, enabling more compact electronic designs.

This connector supports a high current density with a maximum capacity of 390 Amps per linear inch, making it suitable for power-intensive applications. The contacts are manufactured from noble metal plated over nickel with copper plating, ensuring superior conductivity and resistance to corrosion. The operating temperature range of -40°C to 105°C allows reliable performance in various industrial environments.

Designed for applications in data centers, telecommunications, industrial automation devices, and power systems, this PCB socket is engineered to meet demanding industrial standards. The modular design with right angle plug, right angle receptacle, and vertical receptacle versions offers flexibility for diverse electronic system configurations.

Six beam design with three-level beam lengths guarantees reliable power contact and contact sequencing. Reduced mating force facilitates easy assembly and prolongs connector longevity. Compact integrated signal pin and guide design reduces overall connector length.

Thermoplastic housing provides durability and electrical insulation. Supports high current density up to 390 Amps per linear inch. Press-fit termination type ensures secure through-hole mounting on PCBs. Wide operating temperature range from -40°C to 105°C for industrial applications.

Female contact gender with noble metal plating for enhanced conductivity and corrosion resistance. Suitable for demanding industrial sectors including data center and telecommunications.

This TE Connectivity Multi-Beam Series PCB Socket is an essential component for applications requiring reliable, high current board-to-board connections with compact form factor and robust design. Available through EnvMart for advanced electronic designs, it supports efficient and durable electrical connections.
