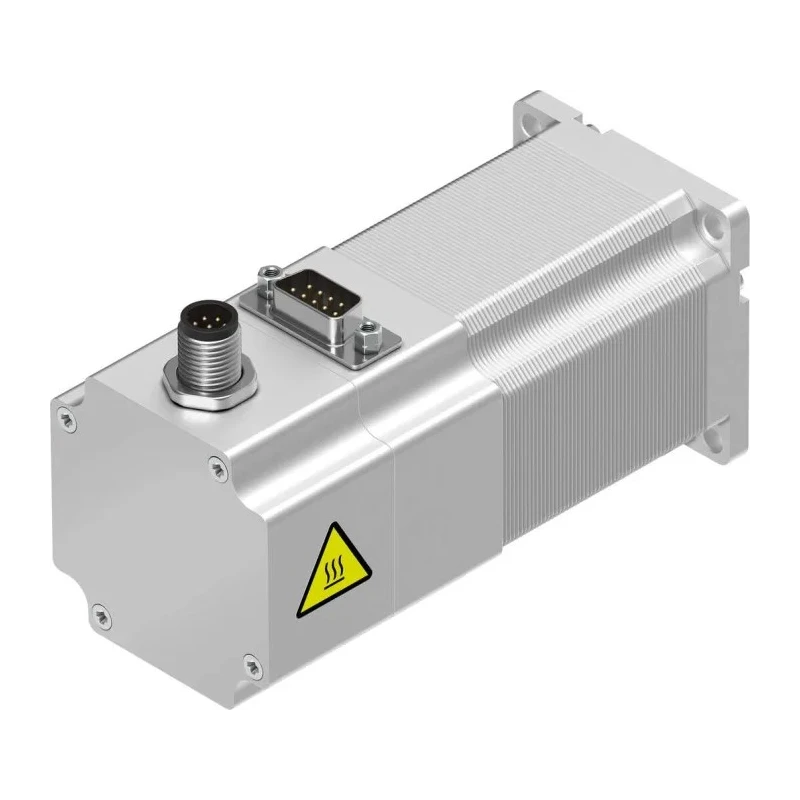

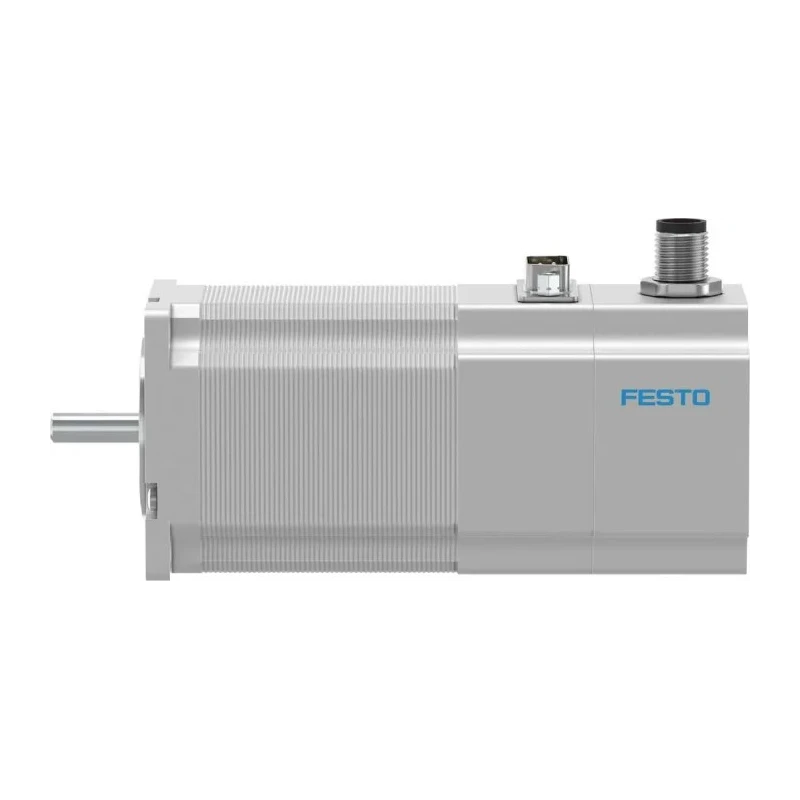

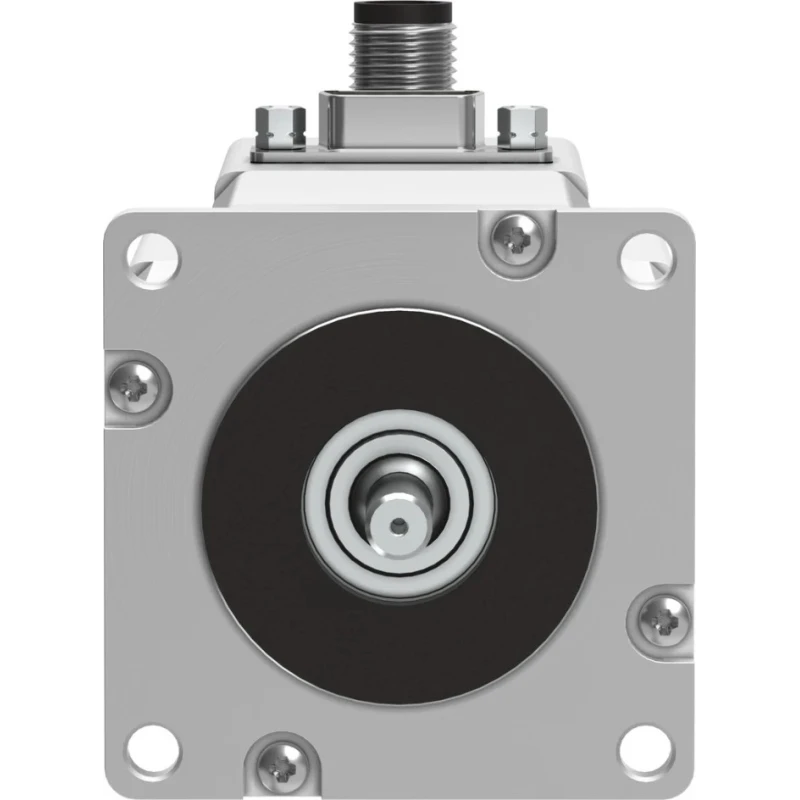

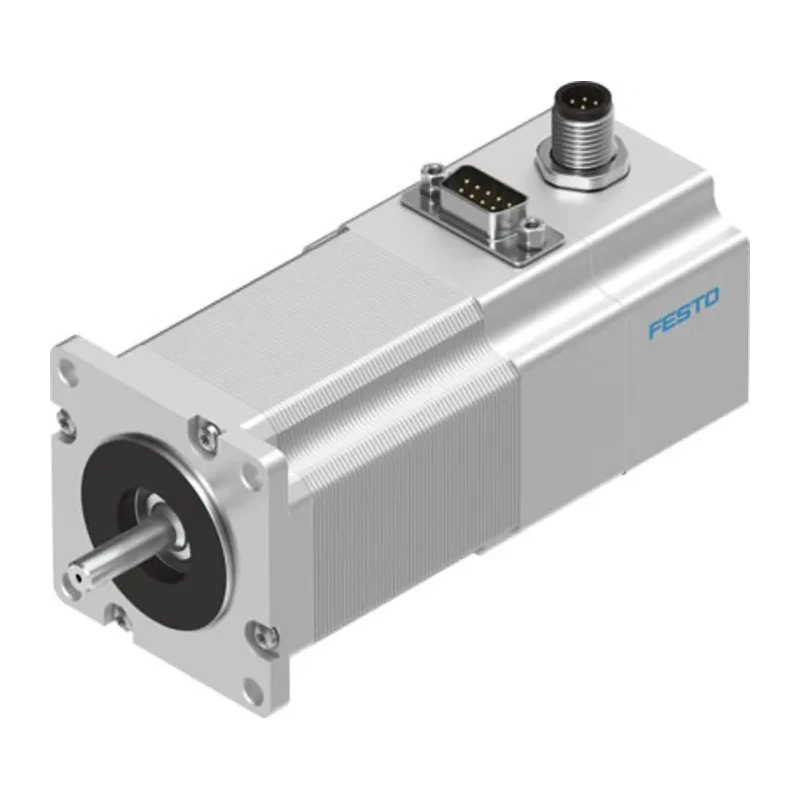

Festo EMMS-ST Series Hybrid Stepper Motor 48V, 1.4Nm Torque, 1.8° Step Angle, 6.35mm Shaft EMMS-ST-57-M-SE-G2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 48V |
| Brand | Festo |
| Model | EMMS-ST-57-M-SE-G2 |
| Depth | 124mm |
| IP Rating | IP54 |
| Current Rating | 5A |
| Series | EMMS-ST |
| Sub Type | Hybrid |
| Output Speed | 1940rpm |
| Shaft Diameter | 6.35mm |
| Shaft Length | 20.6mm |
| Standards/Approvals | RoHS |
| Step Angle | 1.8° |
| Holding Torque | 1.4Nm |
| Detent Torque | 1400mNm |
Key Features
- Class-B insulation enhances motor winding protection and heat resistance.
- IP54 rating ensures resistance against dust and splashing water from all directions.
- Capable of handling axial load up to 10N and radial load up to 52N for heavy industrial equipment.
- Offers powerful 1.4Nm motor torque and 1Nm braking torque for quick starts and stops.
- Equipped with a 6.35mm diameter shaft and 20.6mm shaft length for robust mechanical coupling.
- Step angle tolerance of ±5% tolerates minor misalignments without performance loss.
- Output speed rated up to 1940 rpm suitable for various motion control applications.
- Corrosion resistant, with low stress against corroding moisture for humid or near-liquid environments.
Product Description
Festo EMMS-ST-57-M-SE-G2 is a high-precision hybrid stepper motor engineered for industrial applications requiring accurate positional control. Operating at 48V, it delivers 1.4Nm of holding torque with a fine resolution of 1.8° step angle, making it ideal for precise incremental movements.
This stepper motor features class-B insulation, protecting the windings from excessive heat to prolong operational lifespan. Its IP54 ingress protection rating renders it resistant to dust and splashing water from all directions, enabling durable use in challenging industrial environments.
The motor’s shaft measures 6.35mm in diameter with a 20.6mm length, suitable for integration into various mechanical assemblies. It supports axial loads up to 10N and radial loads up to 52N, ensuring reliable operation in heavy-duty equipment.
With an output speed capacity of 1940 rpm and detent torque of 1400mNm, this motor can achieve swift starts and stops combined with stable holding power. The angle tolerance of ±5% accommodates minor shaft misalignments without significant impact on performance.
Class-B insulation for enhanced thermal protection. IP54 rated for dust and water splash resistance. Robust shaft dimensions and mechanical load ratings. High holding and braking torque values suitable for demanding uses.
Corrosion resistance suitable for humid and near-liquid environments. RoHS compliant ensuring environmentally safe manufacturing. Adapted for industrial automation, motion control, and printing press applications.
This Stepper Motor is manufactured in China and belongs to the EMMS-ST series, representing Festo’s commitment to quality and precision engineering. It is suitable for a wide range of industrial and manufacturing sectors where precise motor control is critical.
Explore the comprehensive assortment of Festo automation and control components on EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this stepper motor is 1.4Nm, providing strong performance for various applications.
The output speed of the Festo EMMS-ST-57-M-SE-G2 is rated up to 1940 rpm, making it suitable for dynamic motion control tasks.
This model features a step angle of 1.8°, allowing for precise incremental movements in applications.
It has an IP54 rating, which ensures resistance against dust and splashing water from all directions.
The shaft diameter is 6.35mm with a length of 20.6mm, suitable for various mechanical assemblies.
This motor can support axial loads up to 10N and radial loads up to 52N, making it reliable for heavy-duty applications.
It features Class-B insulation, which enhances protection for the motor windings and improves heat resistance.
The current rating for the Festo EMMS-ST-57-M-SE-G2 is 5A, which is important for its operational requirements.
This model is RoHS compliant, ensuring it meets environmental safety standards.
This stepper motor is manufactured in China, reflecting its origin in industrial automation technology.
It is adapted for industrial automation, motion control, and printing press applications, where precise motor control is critical.
The detent torque for this model is 1400mNm, contributing to its ability to maintain position without power.
