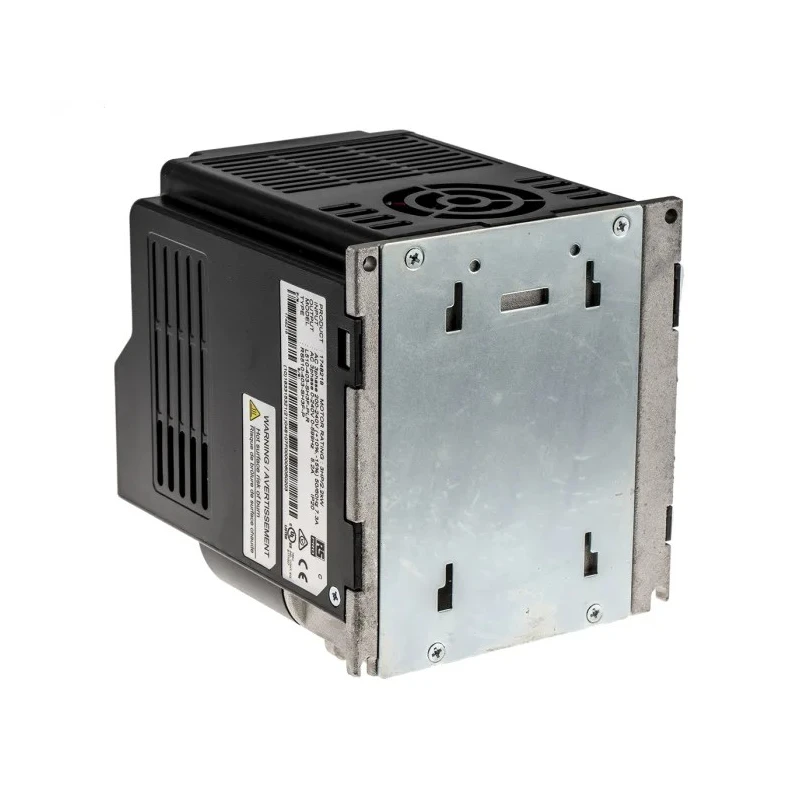

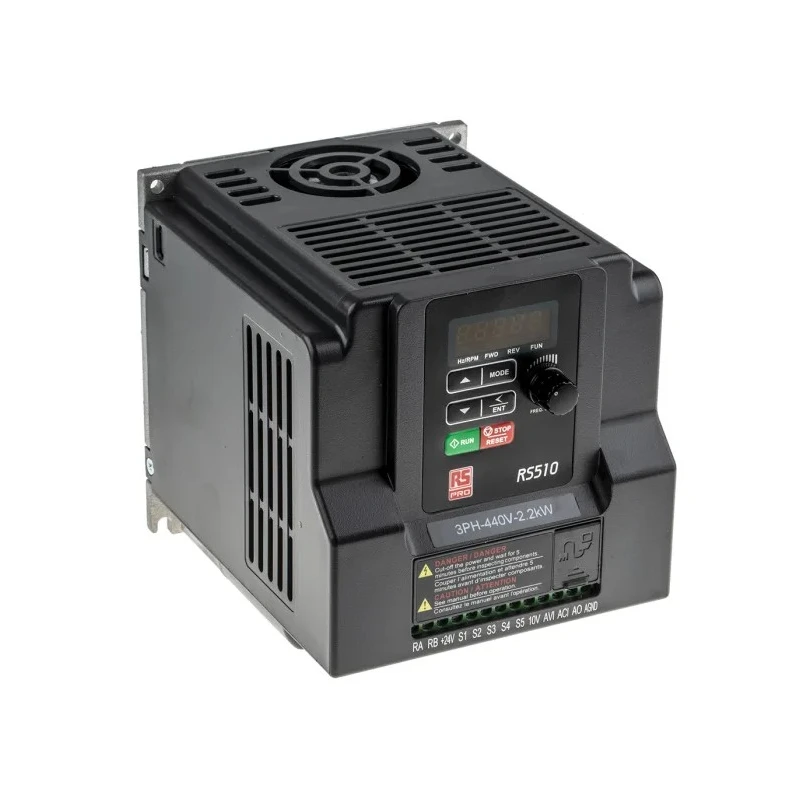

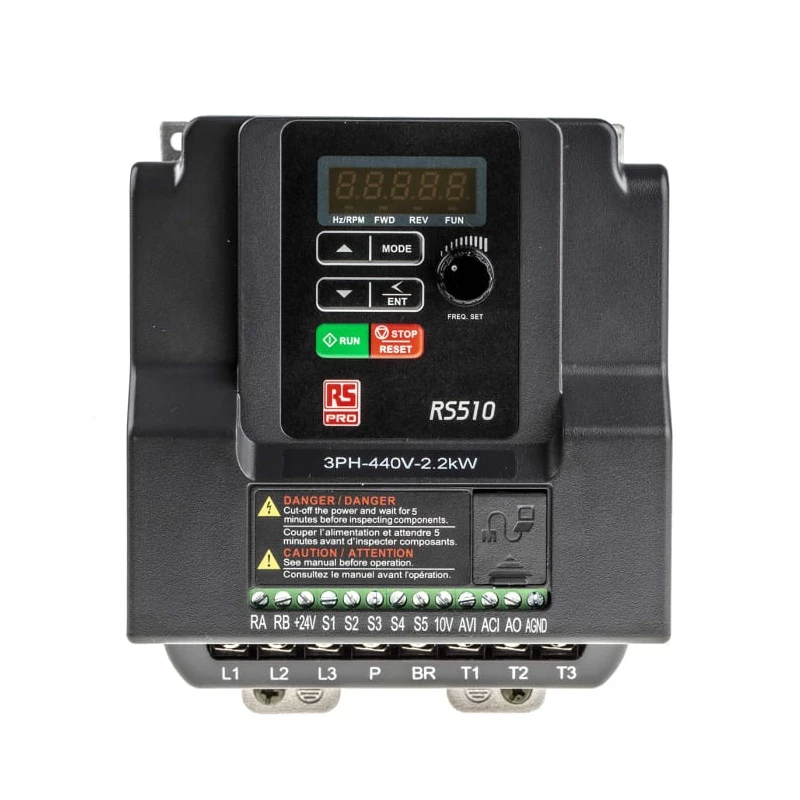

RS PRO 3-Phase Inverter Drive, 2.2 kW, 480V, 5.2 A, RS510 Series

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 3-Phase Inverter Drive, 2.2 kW, 480V, 5.2 A, RS510 Series

Name: RS PRO 3-Phase Inverter Drive, 2.2 kW, 480V, 5.2 A, RS510 Series
Brand: RS PRO
SKU: 302665
Price: 475.35 USD
Availability: InStock



Category Inverter Drive Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	RS510
IP Rating	IP20
Drive Type	Vector Control
Mount Type	DIN Rail
Overall Length	118mm
Series	RS510
Overall Width	150mm
Power Rating	2.2kW
Maximum Operating Temperature	40°C
Output Frequency	599Hz
Minimum Operating Temperature	-10°C
Number of Phases	3
Maximum Output Current	5.2A
Standards/Approvals	CE, RCM, cUL, UL
Maximum Supply Voltage	480V
Overall Depth	144mm
Minimum Supply Voltage	380V
Better World Claim	Saves Energy
Compatible Motor Type	Induction Motor

Key Features

Rated power output of 2.2 kW suitable for light to medium duty applications.
Operates at 3 phase, 480V supply voltage with a maximum output current of 5.2 A.
Features vector control drive type for efficient and accurate motor speed management.
Built-in filter reduces maintenance and downtime ensuring higher efficiency.
Cooling is managed by an integrated heatsink providing enhanced thermal management.
Compact dimensions of 150 mm width, 118 mm length, and 144 mm depth allow space-saving installation.
IP20 rated enclosure protects internal components from solid particles.
Compatible with induction motors for versatile industrial use.

Product Description

RS PRO RS510 Series 3-Phase Inverter Drive, model RS510, offers a powerful 2.2 kW power rating designed for precise control of induction motors in industrial environments. Operating at 480V supply voltage and supporting a maximum output current of 5.2 A, this vector control drive enables accurate motor speed regulation for light to medium duty motor applications.

Featuring a compact design with DIN rail mounting, the inverter drive measures 150 mm in width, 118 mm in length, and 144 mm in depth. The integrated heatsink ensures effective cooling, enhancing operational efficiency and reliability. An IP20-rated enclosure provides essential protection from solid particles while maintaining accessibility.

The built-in filter of the RS510 Series inverter drive minimizes maintenance requirements and downtime, helping to optimize industrial process efficiencies. Its wide operating temperature range between -10°C and 40°C makes it suitable for varied industrial conditions.

Compliant with CE, RCM, cUL, and UL standards, this inverter drive ensures safety and quality performance. It is part of the RS PRO Better World range, contributing to energy saving and sustainability goals.

Applications for this inverter drive include speed and torque control in conveyors, fans, pumps, and general motor control tasks in manufacturing and industrial automation settings. Use RS PRO RS510 inverter drives to achieve greater system efficiency, reduced running costs, and enhanced process control.

Rated power output of 2.2 kW. 3-phase, 480V supply voltage with 5.2 A max output current. Vector control drive type with built-in filter. DIN rail mount with heatsink cooling for thermal management. Compact size and IP20 rated enclosure for reliable operation.

Compatible with induction motors. Wide operating temperature range from -10°C to 40°C. Complies with CE, RCM, cUL, and UL certifications. Better World energy-saving product.

Explore more RS PRO Inverter Drives and Automation & Control Gear products on EnvMart for industrial and manufacturing applications requiring reliable motor speed control solutions.
