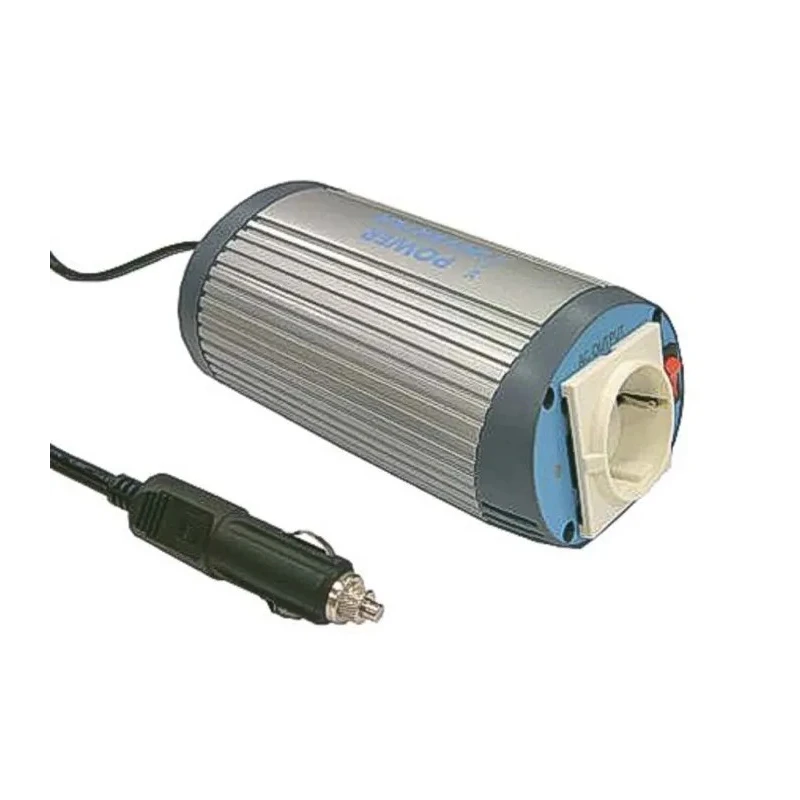

MEAN WELL Screw 150W Power Inverter 24V DC Input 230V AC Output Modified Sine Wave A302-150-F6

MEAN WELL A302-150-F6 is a screw-mount power inverter designed to convert 24V DC power input into 230V AC output with a rated output power of 150W. It delivers a modified sine wave output, making it suitable for various electronic components requiring AC power, such as voltage converters and small appliances. The built-in protections include battery low alarms and shutdown, over-voltage and temperature safeguards, reverse polarity protection, over current, and short circuit prevention, ensuring the inverter's safe and reliable operation.

This device features a compact footprint of 165mm length, 69mm width, and 69mm depth with a screw mount type for secure installation. The inverter maintains an output voltage regulation within ±10% and operates efficiently at around 82% efficiency. With a mean time between failure (MTBF) of 200,000 hours, it promises long service life under normal operating conditions.

The input voltage range supports a tolerance from -15% to +25% around the 24V DC nominal value, while output current is rated at 650mA through a British 3-pin connector. Environmental operating temperatures range from 0°C minimum to a maximum of 40°C, making it suitable for typical indoor residential or commercial environments.

Additional features include a power ON/OFF switch for user control and microprocessor topology that optimizes performance and protection mechanisms. The power inverter complies with CE standards, ensuring it meets applicable safety and performance regulations.

Input voltage range: -15% to +25% of 24V DC. Output voltage regulation within ±10%. Multiple comprehensive protection features for safe operation. Compact and secure screw mounting design. High operational efficiency of 82%.

Long MTBF of 200,000 hours ensuring reliability. Output current of 650mA via British 3-pin connector. Ambient operating temperature from 0°C to 40°C. Microprocessor-controlled topology enhances performance. CE certified for safety and quality.

This MEAN WELL power inverter is ideal for electronic component applications, power supplies, voltage conversion tasks, and other industrial or commercial uses requiring reliable AC power conversion from DC sources. Explore the comprehensive range of Power Inverters and power supplies available at EnvMart for your professional and industrial needs.
