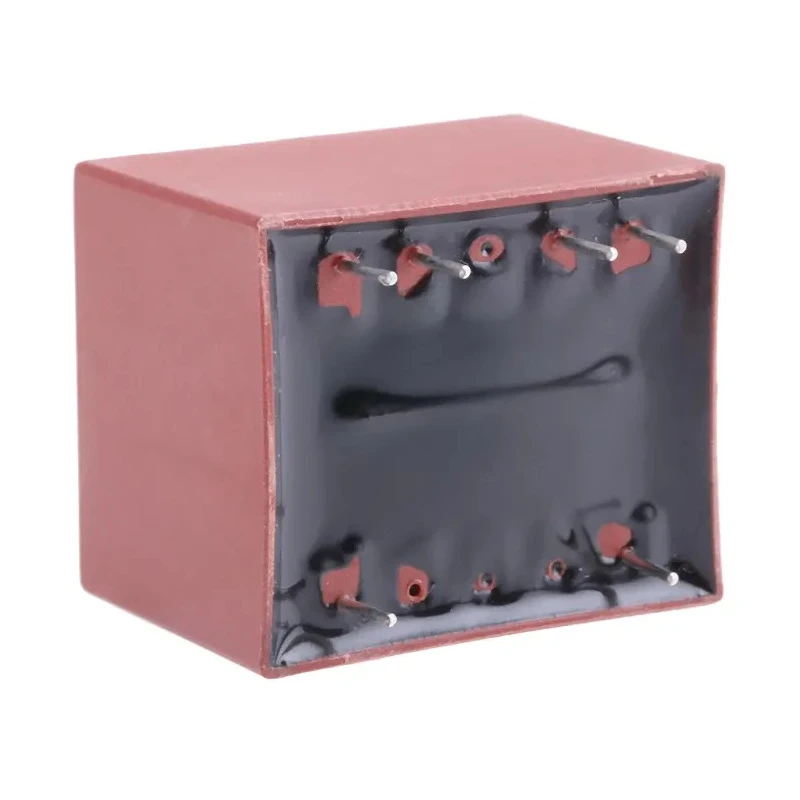

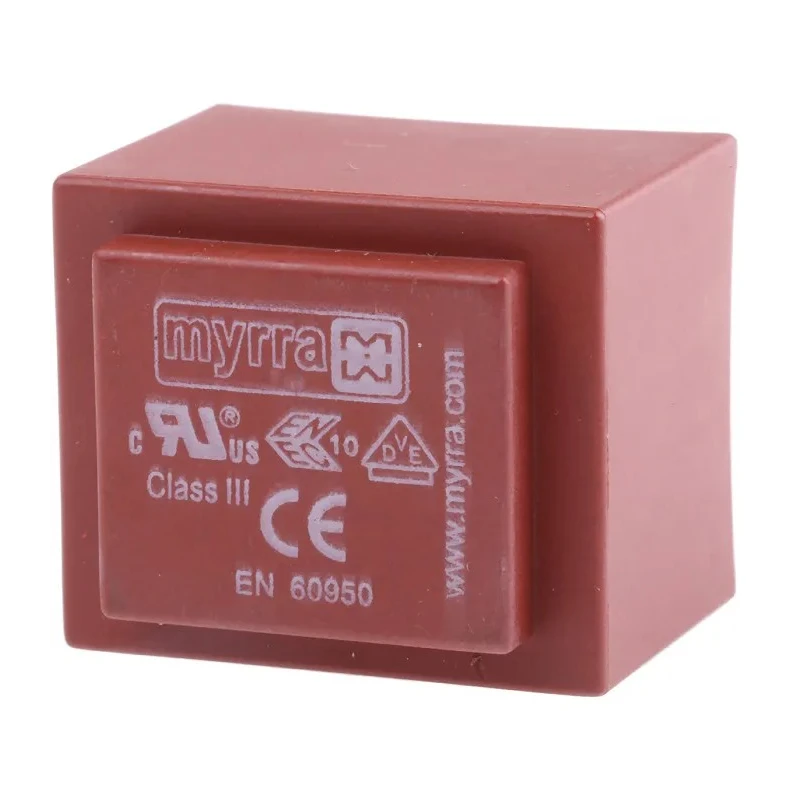

Myrra 2 x 12 V AC 2 Output PCB Transformer 2VA, Isolation Voltage 4kV, Certified 44129

Myrra 44129 PCB Transformer is a professional safety transformer designed for printed circuit board mounting applications. It delivers dual 12 V AC outputs from a 230 V AC primary supply with a power rating of 2VA. This transformer features a high isolation voltage of 4kV, ensuring safe operation in demanding industrial and electronic environments.

The unit dimensions are 32.6mm in length, 27.6mm width, and 27.3mm depth, with a lightweight of 100 grams, making it ideal for compact and space-constrained applications. The transformer is vacuum-filled with resin to provide excellent resistance against material aging and incorporates non-flammable and self-extinguishing materials, certified to UL 94 VO standards.

It complies with important global standards including CEI 85, VDE EN 61558-2-6, CEI 126, and the CCA procedure, assuring users of its safety and durability. Its installation on European grid PCBs is straightforward, and it allows for coupling in series or parallel configurations to meet different voltage and current requirements.

Typical industrial and laboratory uses include power supply boards, electronic device isolation, signal transformers, and other professional electronic designs demanding reliable insulation and compact form factors. The transformer's high-frequency range between 50Hz to 60Hz supports various global AC power systems.

Designed for PCB mounting with compact dimensions and lightweight construction. Dual 12 V AC outputs from a 230 V AC primary with 2VA power rating. High insulation voltage above 4000V for enhanced safety and reliability.

Complies with UL 94 VO, CEI 85, VDE EN 61558-2-6, CEI 126 safety standards. Vacuum-filled with resin for excellent durability and aging resistance. Coupling options in series or parallel for versatile output configurations.

Applications in industrial, laboratory, and electronic power supplies. Manufactured in France with rigorous quality control and certification. Explore the full range of PCB Transformers and electronic components at EnvMart to source quality power supply parts for your projects and manufacturing needs.
