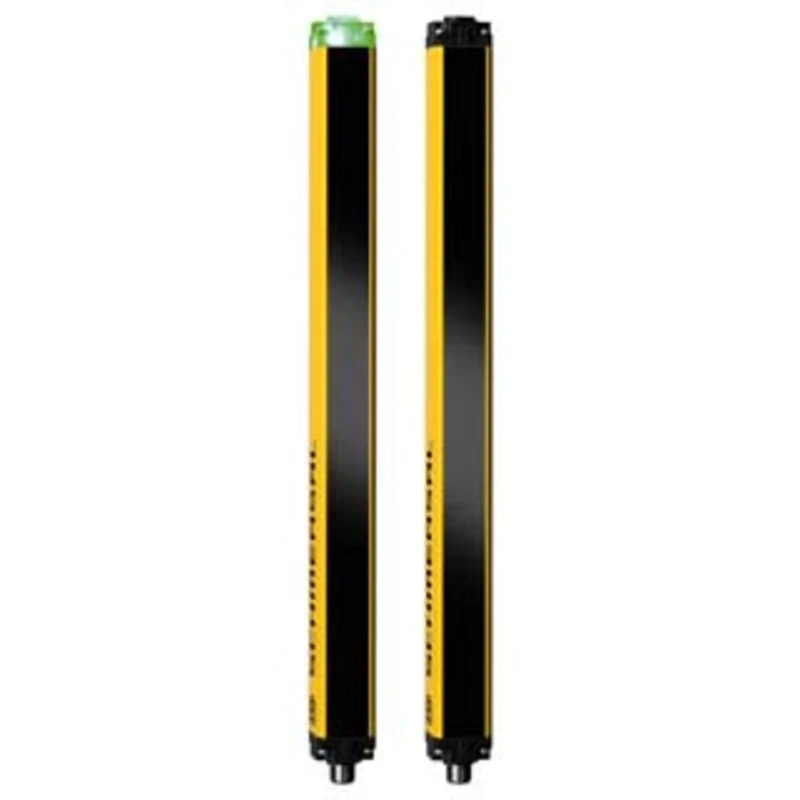

Schmersal SLC440COM Series Light Curtain Sender 24 V DC, 5 W Power, 184 Beams, 1850 mm Protective Height

Schmersal SLC440COM Series Light Curtain Sender SLC440COM-E-1850-14 operates at 24 V DC with 5 W power consumption, providing 184 beams with a 14 mm resolution for precise detection. This device ensures operator safety by stopping hazardous machinery when its light beams are interrupted. Its protective height of 1850 mm and scanning range from 300 mm to 6000 mm allow flexible installation in various environments.

The sender features compact dimensions of 33 mm length, 27.8 mm width, and a height of 1891 mm, making it suitable for installation where space is limited. It has a maximum response time of 28 ms, allowing machinery to shut down rapidly to reduce injury risk. The IP67 rating guarantees dust-tight protection and the ability to withstand immersion in water up to 1 meter deep for 30 minutes, ensuring durability in demanding industrial settings.

Connectivity is facilitated by a 4-Pin M12 terminal, enabling straightforward integration into control systems. The device also includes integrated diagnostics to ease troubleshooting and maintenance. It operates reliably within a temperature range of -10°C to +50°C, suitable for diverse industrial applications.

This light curtain sender finds industrial use in automated assembly lines, elevators, manufacturing facilities, and warehouses, contributing to worker safety by creating an invisible protective barrier. Manufactured in Germany, it meets strict safety and quality standards.

Operates at 24 V DC with a power consumption of 5 W. Protective height of 1850 mm with 184 beams and 14 mm resolution. Scanning distances from 300 mm minimum to 6000 mm maximum. Compact size with dimensions 33 mm length, 27.8 mm width, and 1891 mm height.

IP67 rated for dust and water resistance. Maximum response time of 28 ms for quick machinery shutdown. 4-Pin M12 terminal ensures easy connectivity. Integrated diagnostics for efficient troubleshooting. Wide operating temperature range from -10°C to +50°C.

Suitable for safety in elevators, assembly lines, warehouses, and manufacturing. Explore the range of Schmersal Safety Light Curtains and automation control gear at EnvMart for reliable industrial safety solutions.
