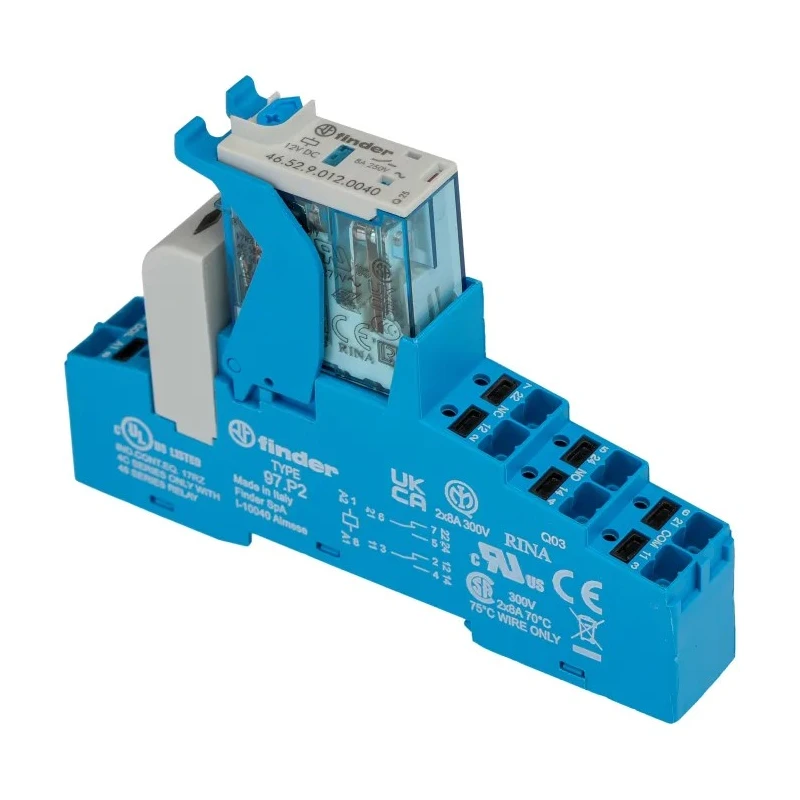

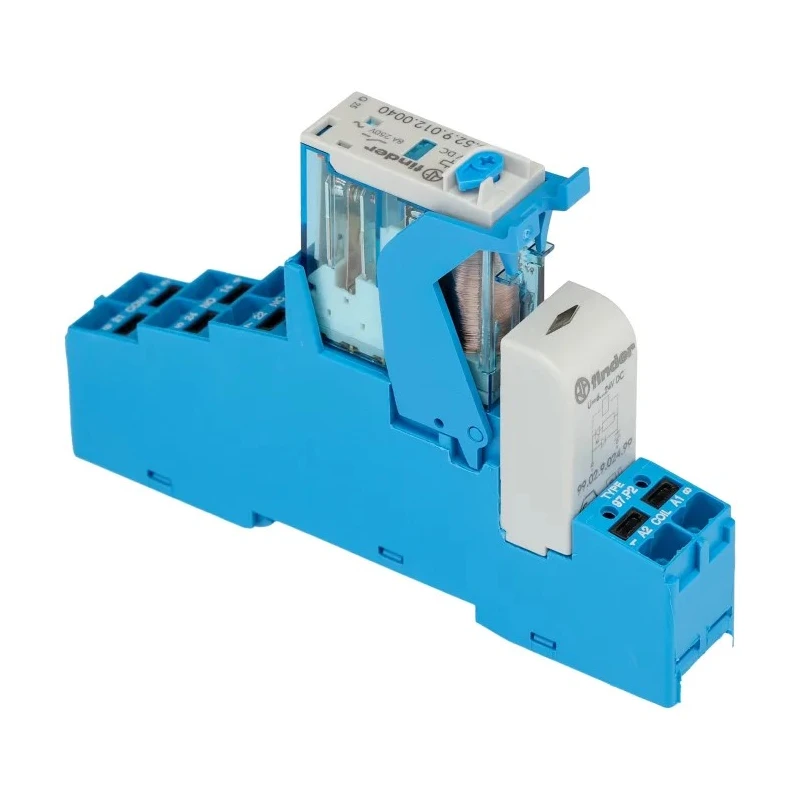

Finder 4C Series Interface Relay, DIN Rail Mount, 12V DC Coil, DPDT-2 CO Contacts, 8A Switching Current 4C.P2.9.012.0050SPA
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 95.5mm |
| Length | 15.8mm |
| Model | 4C.P2.9.012.0050SPA |
| Width | 66.8mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 4C |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT-2 CO |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Push-in |
| Standards/Approvals | RoHS |
| Coil Resistance | 300Ω |
| Coil Voltage | 12V dc |
| Coil Current | 40mA |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 440V ac |
Key Features
- Features a compact design measuring 95.5 mm height, 66.8 mm width, and 15.8 mm length.
- Equipped with push-in terminals for quick and secure wiring connections.
- Supports switching currents up to 8 A and switching voltages up to 440 V AC.
- Coil resistance is 300 ohms with a coil current of 40 mA for efficient operation.
- Operates reliably in temperature ranges from -40 °C to 70 °C.
- Constructed with silver alloy contact material ensuring high durability.
- Designed for robust mechanical life of up to 10 million cycles.
- Certified RoHS compliant, meeting environmental standards.
Product Description
Finder 4C.P2.9.012.0050SPA is a high-quality interface relay designed for industrial and automation applications requiring precise electrical circuit control. Featuring a 12V DC coil and DIN rail mounting compatibility, this relay is engineered to provide dual-pole double-throw (DPDT-2 CO) switching with a rated current of 8 amperes. Its compact form factor of 15.8 mm length, 66.8 mm width, and 95.5 mm height facilitates easy integration into control panels and electrical distribution systems.
This relay is built with silver alloy contacts and push-in type terminals to ensure low contact resistance and ease of installation. It supports AC switching voltages up to 440 V and DC voltage switching up to 30 V, accommodating diverse operational requirements. With a coil resistance of 300 ohms and coil current of 40 mA, the relay efficiently balances performance and power consumption.
The device is rated for operation under harsh conditions, functioning reliably within a wide temperature range from -40 °C to +70 °C. Its robust mechanical construction guarantees a lifecycle up to 10 million switching operations, making it ideal for demanding industrial environments.
Applications include control of escalators in modern construction, road and tunnel lighting systems, safety operations in hoists and cranes, and efficient logistics in carousel warehouses. The relay is well suited for integration in automation control panels and electrical distribution networks.
Compact DIN rail mount interface relay with DPDT-2 CO contacts. 12V DC coil voltage with 40mA coil current suitable for automation systems. High switching capability handling 8A at voltages up to 440V AC. Push-in terminal design for simplified wiring and maintenance.
Robust silver alloy contacts for long operational life. Wide operational temperature from -40°C to +70°C. Complies with RoHS environmental standards. Excellent reliability with mechanical life rated up to 10 million cycles.
Choose the Finder 4C series interface relay for reliable, efficient, and durable switching performance in demanding electrical and industrial automation applications. Explore more products in the Interface Relay category on EnvMart for complementary solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 8A.
It has a height of 95.5 mm, a width of 66.8 mm, and a length of 15.8 mm.

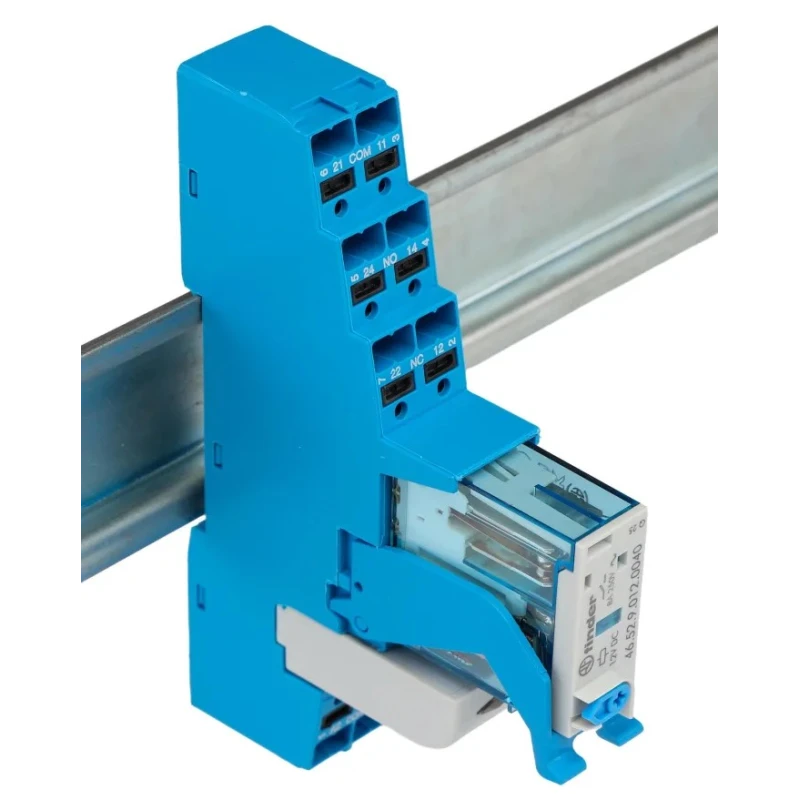

This relay is designed for DIN rail mounting, facilitating easy integration into control panels.
It operates with a coil voltage of 12V DC and a coil current of 40mA.
The contact configuration is dual-pole double-throw (DPDT-2 CO).
It supports switching voltages up to 440V AC and 30V DC.
The contacts are constructed from silver alloy, ensuring low contact resistance.
It operates reliably within a temperature range of -40 °C to +70 °C.
It has a robust mechanical life rated for up to 10 million cycles.
This unit features push-in terminals for quick and secure wiring connections.
Yes, it is certified RoHS compliant, meeting environmental standards.
It is suitable for applications such as control of escalators, road and tunnel lighting systems, and safety operations in hoists and cranes.
