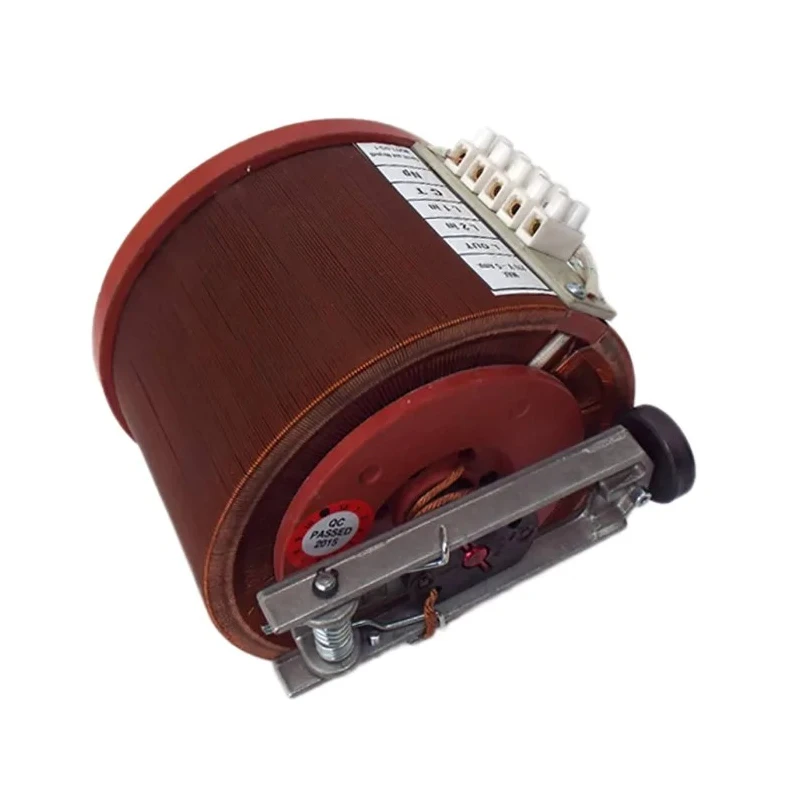

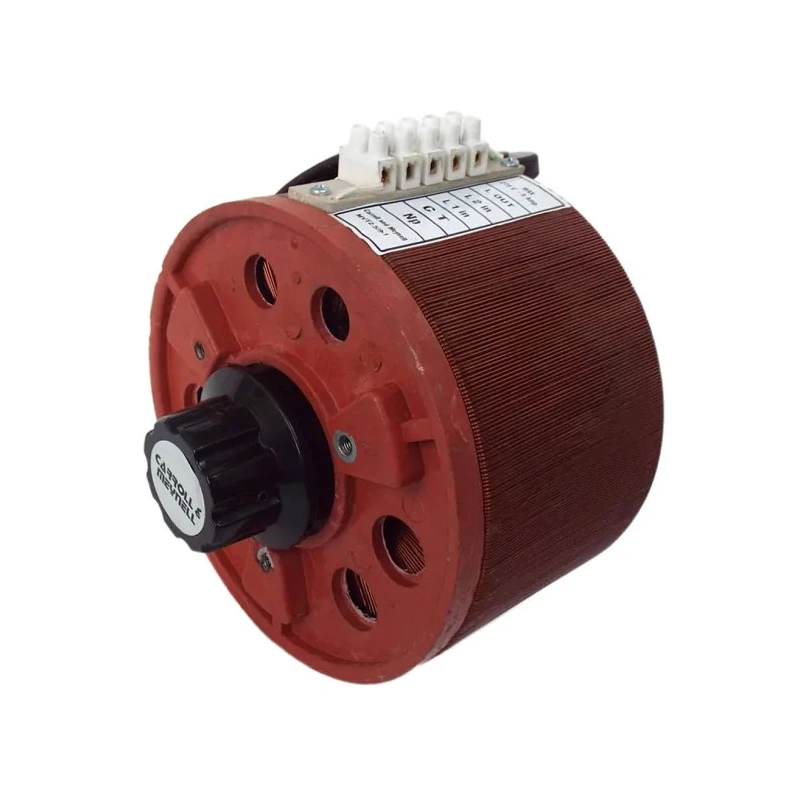

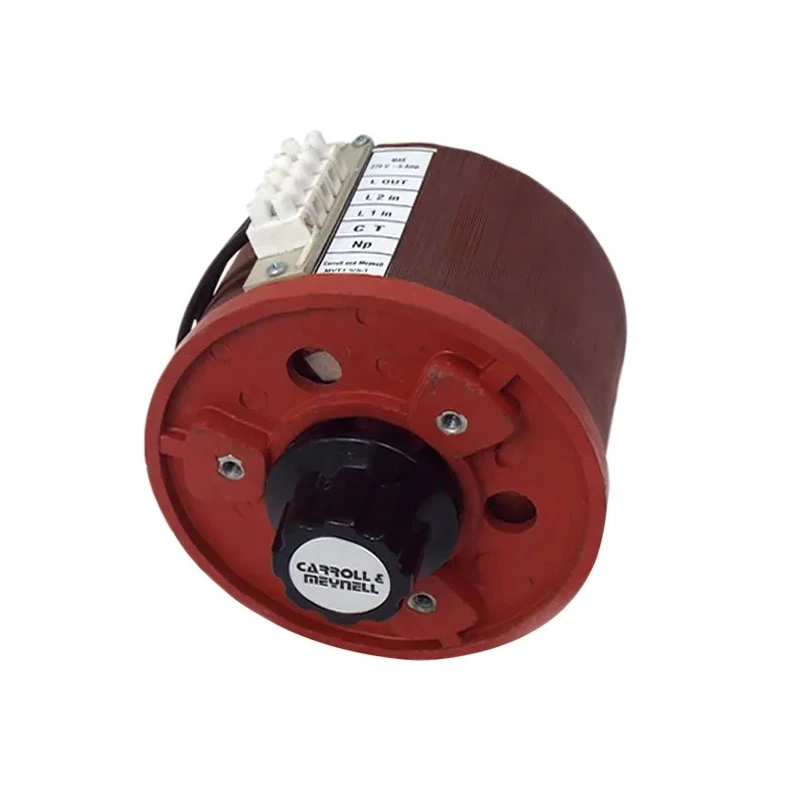

Carroll & Meynell Variac 5 Output 1 Phase 2.5 kVA 240 V Panel Mount MVT2.5k/9A-1
Specifications
| Country of Origin | Turkey |
|---|---|
| Diameter | 185mm |
| Brand | Carroll & Meynell |
| Length | 174mm |
| Model | MVT2.5k/9A-1 |
| Gross Weight | 15kg |
| Width | 174mm |
| Mount Type | Panel |
| Construction | Open Frame |
| Termination Type | M4 Dowel |
| Number of outputs | 5 |
| Number of Phases | 1 |
| Electrical Phase | 1 |
| Primary Voltage | 240 V |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Knob Rotation | Clockwise |
Key Features
- Panel mount type with clockwise knob rotation for easy adjustment.
- Features 5 output terminals with M4 dowel termination.
- Constructed as an open frame unit with rugged and robust design.
- Operates efficiently between 50 Hz and 60 Hz frequency range.
- Weighs 15 kg and manufactured in Turkey ensuring reliable quality.
- Includes a round carbon brush for smooth, linear output without distortion.
- Low magnetising current and low operating torque for efficient operation.
- Silver-plated commutator enhances durability and performance.
Product Description
Carroll & Meynell MVT2.5k/9A-1 Variac is a precision variable autotransformer that offers continuously variable AC output voltage with 5 outputs, single-phase operation, and power rating of 2.5 kVA at 240 V. It is panel mountable with a clockwise knob rotation for smooth adjustment of voltage levels.
This variac features a robust open frame construction designed to endure industrial environments. The unit includes a round carbon brush that rides over imperfections on the commutator surface, providing smooth linear output voltage without waveform distortion while ensuring long brush life and reliable operation.
Notable features include low magnetising current, low operating torque, and a silver-plated commutator which improves contact reliability. The device is suitable for applications requiring precise control of AC voltages such as laboratory testing, manufacturing equipment regulation, and electrical maintenance.
Specifications encompass 5 output terminals terminated by M4 dowels and a frequency operating range of 50 Hz to 60 Hz. Its compact dimensions (174mm length and width, 185mm diameter) and weight of 15 kg make it manageable while ensuring durability. Manufactured in Turkey, this variac meets high standards of quality and performance.
Panel mount type with clockwise knob rotation for ease of use. Round carbon brush provides smooth and distortion-free voltage output. Low magnetising current for energy efficiency. Robust open frame construction suitable for industrial use.
Silver-plated commutator increases lifespan and reliability. Operating frequency range from 50 Hz to 60 Hz accommodating standard power supplies. Complete with knob and dial for precise voltage regulation. This product is ideal for industrial, laboratory, HVAC, manufacturing, and electrical testing applications requiring controlled and stable variable voltage supply.
Explore more power supply and transformer solutions from Carroll & Meynell and browse our extensive catalog for related Variacs and transformers on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 2.5 kVA at 240 V.
It features 5 output terminals that are terminated by M4 dowels.
The variac operates efficiently within a frequency range of 50 Hz to 60 Hz.
The dimensions are 174 mm in length and width, with a diameter of 185 mm.
It is constructed as an open frame unit designed for industrial environments.
The unit weighs 15 kg.
It features clockwise knob rotation for easy adjustment of voltage levels.
This variac is manufactured in Turkey.
The output terminals use M4 dowel termination.
The round carbon brush provides smooth, linear output without distortion, enhancing reliability.
It is suitable for applications requiring precise control of AC voltages, such as laboratory testing and electrical maintenance.
It includes a knob and dial for precise voltage regulation.
