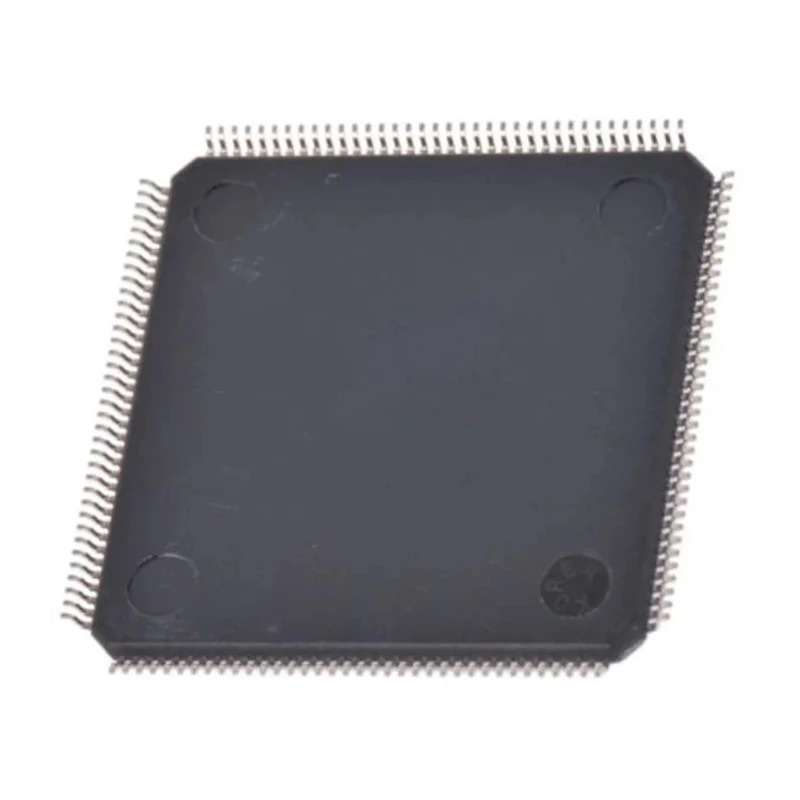

STMicroelectronics STM32F767ZIT6 STM32F7 Microcontroller 32 bit ARM Cortex M7 216 MHz 2.048MB FLASH 144-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 20.2mm |
| Model | STM32F767ZIT6 |
| Width | 20.2mm |
| Mount Type | Surface |
| Series | STM32F7 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512kB |
| Pin Count | 144 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 500mW |
| Minimum Supply Voltage | 1.7V |
| Device Core | ARM Cortex M7 |
| Program Memory Size | 2.048MB |
| Maximum Clock Frequency | 216MHz |
| Number of Programmable I/Os | 168 |
| Number of Timers | 12 |
| Instruction Set Architecture | Harvard, RISC |
| ADCs | 24 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- Includes 2.048MB of programmable Flash memory for extensive code storage.
- Equipped with 512kB RAM to support data-intensive applications.
- Features 168 programmable I/Os for versatile interfacing.
- Operates from a voltage range of 1.7V minimum to 3.6V maximum supply voltage.
- Supports 12 timers and dual 12-bit DACs for precise control tasks.
- Designed with 24 ADC channels each with 12-bit resolution for high accuracy analog input.
- Packaged in a 144-pin Low-profile Quad Flat Package (LQFP) for surface mounting.
- Compact dimensions measuring 20.2 mm by 20.2 mm footprint and 1.45 mm height.
Product Description
STMicroelectronics STM32F767ZIT6 is a high-performance 32-bit microcontroller built on the ARM Cortex-M7 core architecture with a maximum CPU speed of 216 MHz. It delivers advanced processing capabilities suitable for embedded systems requiring complex computation, such as industrial automation, consumer electronics, and IoT devices.
This microcontroller offers 2.048MB of Flash memory with Read-While-Write capability and 512kB RAM, including tightly coupled memory regions for optimized data and instruction access. The device integrates numerous peripherals including 168 programmable GPIOs, 24 12-bit ADCs, 2 12-bit DACs, and 12 timers facilitating diverse control and measurement functions.
Its dual clock system separates peripheral and core operation frequencies to maximize efficiency, accompanied by ST's ART Accelerator™ and L1 cache for enhanced code execution speed.
Designed for surface mounting, the STM32F767ZIT6 comes in a 144-pin LQFP package with a compact 20.2mm footprint and 1.45mm thickness, balancing integration density with manageable thermal performance at 500mW maximum power dissipation.
The device supports a wide operating temperature range from -40°C to +85°C, making it suitable for automotive, industrial, and consumer environments. Its program memory is FLASH type, and it complies with basic industrial standards though no specific approvals are listed.
Includes 2.048MB programmable Flash memory for extensive application code. High-speed 216 MHz ARM Cortex M7 core with advanced floating-point unit. Profuse peripheral integration including ADC, DAC, timers, and GPIOs. Compact 144-Pin LQFP package for surface mount assembly.
Wide operating voltage range and temperature for robust performance. Ideal for industrial, automotive, and embedded computing applications.
Explore more Microcontrollers with advanced processing capabilities in the EnvMart catalogue. Choose STM32F7 series devices for cutting-edge embedded design projects requiring superior performance and rich integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F767ZIT6 operates at a maximum clock frequency of 216 MHz.
It includes 2.048MB of programmable Flash memory for extensive code storage.
This model features 168 programmable I/Os for versatile interfacing.
It is equipped with 512kB of RAM to support data-intensive applications.
The STM32F767ZIT6 operates within a voltage range of 1.7V to 3.6V.
This microcontroller has a footprint of 20.2 mm by 20.2 mm and a height of 1.45 mm.
It supports 24 ADC channels, each with 12-bit resolution for high accuracy analog input.
It is packaged in a 144-pin Low-profile Quad Flat Package (LQFP) for surface mounting.
The maximum power dissipation for this model is 500mW.
It operates within a temperature range of -40°C to +85°C.
This microcontroller features 12 timers for various control tasks.
It is built on the ARM Cortex-M7 core architecture.
