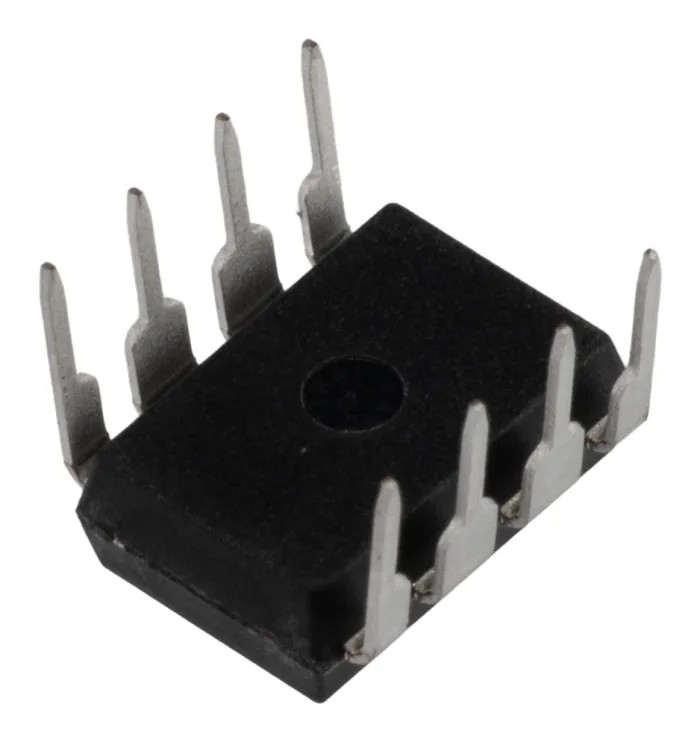

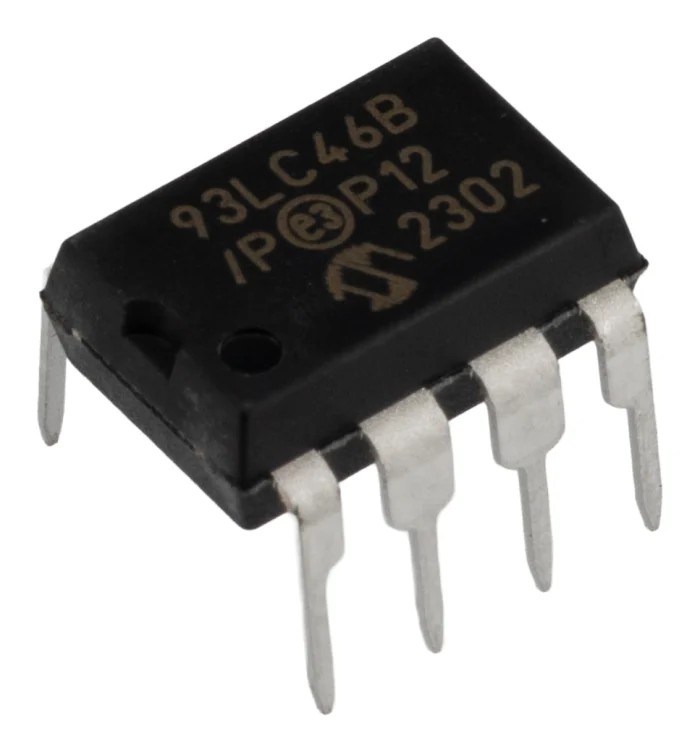

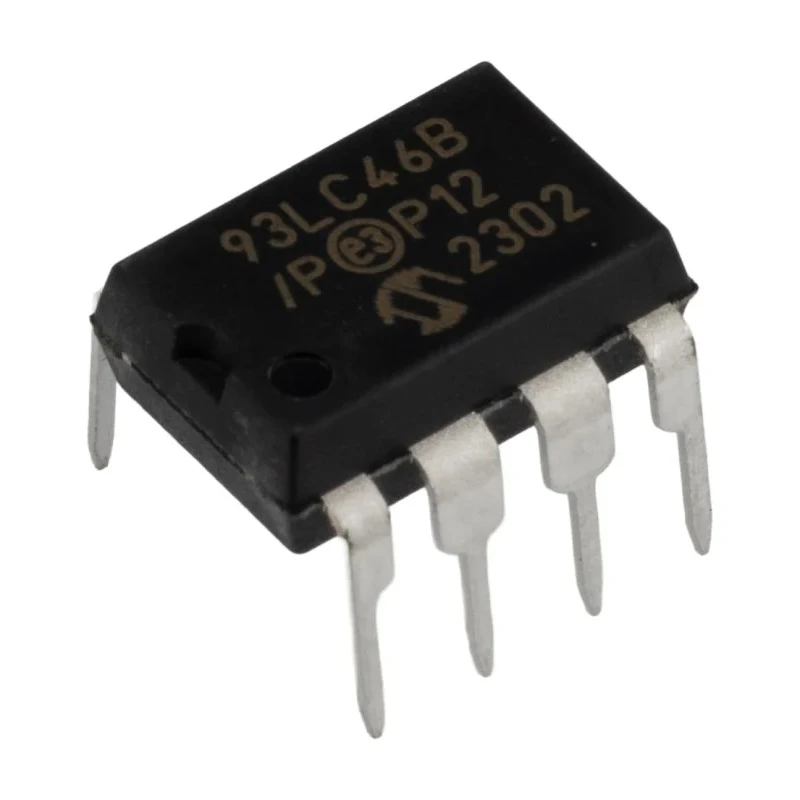

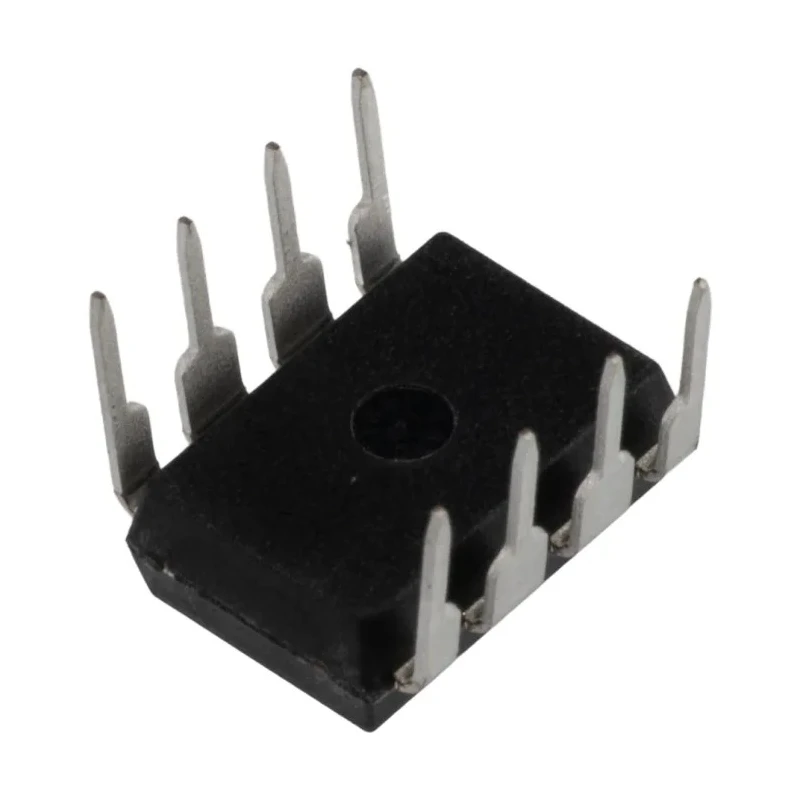

Microchip 1 kB Serial EEPROM, 200 ns 8-Pin PDIP Serial-Microwire 93LC46B/P

Microchip 93LC46B/P 1 kB Serial EEPROM is an 8-Pin PDIP Microwire serial memory device offering 200 ns maximum access time. It provides a reliable and durable non-volatile memory solution suitable for industrial and electronic component applications.

This serial EEPROM features a memory size organized as 64 words of 16 bits each, supporting a maximum clock frequency of 2 MHz, facilitating efficient data storage and access. Designed for through hole mounting, it comes in a PDIP package measuring 9.4 mm in length and 6.35 mm in width, making it compatible with various electronic assemblies.

Operating voltage ranges from 2.5 V to 5.5 V, with a supply current of only 1 mA, enabling energy-efficient operation in embedded systems and equipment.

The device ensures data retention for over 200 years and supports up to 1,000,000 erase/write cycles with self-timed erase/write and automatic erase-before-write features, enhancing durability and reliability.

Memory size of 1 kB with 64 x 16-bit organization. Maximum clock frequency of 2 MHz. 200 ns maximum random access time. Through hole mount with 8-pin PDIP package. Operating temperature 0°C to 70°C. Power-on/off data protection circuitry.

1 mA supply current. Over 200 years data retention. Up to 1,000,000 erase/write cycles for extended endurance. Supports sequential read and device status signal for operation monitoring.

This EEPROM is suitable for industrial, laboratory, electronics manufacturing, embedded system design, and other commercial applications requiring reliable non-volatile memory with fast access speeds and robust data retention.

Explore more high-quality semiconductor memory solutions and accessories in the EEPROM category at EnvMart.
