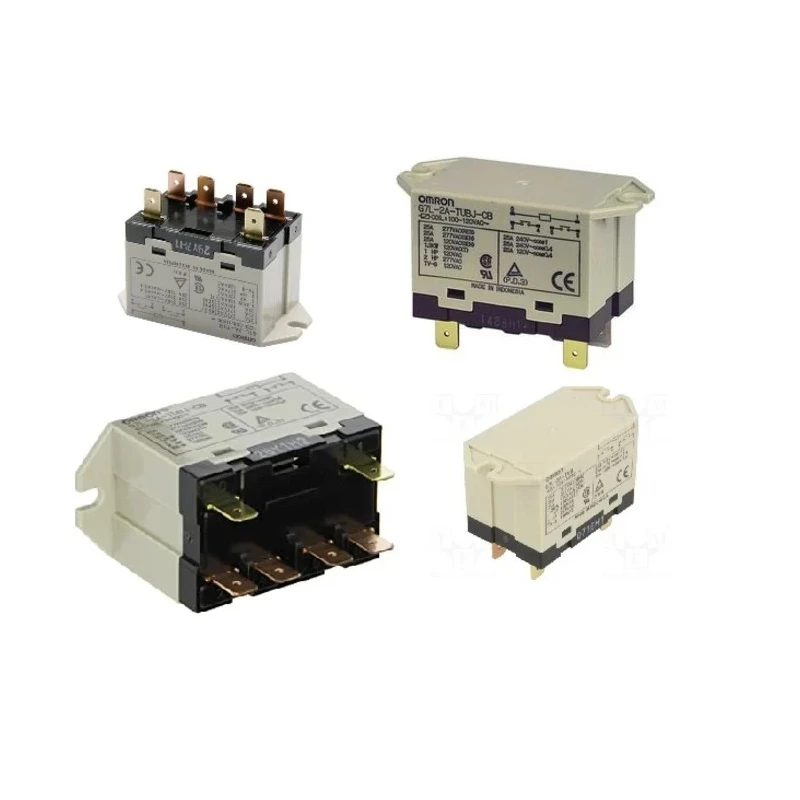

Omron Power Relay PCB Mount DPST 24V DC Coil 1A Switching Current G7L-2A-TUB DC24

Omron G7L-2A-TUB DC24 power relay is a high-capacity device designed for PCB mounting with a Dual Pole Single Throw (DPST) contact configuration. It operates with a 24V DC coil voltage and a switching current of 1A, making it ideal for precise switching control in electronic circuits.

The relay features coil resistance of 303Ω and consumes 1.9W of coil power. Its contact rating includes switching capabilities up to 60V DC and 240V AC voltages, facilitating compatibility with diverse electrical systems. The relay can withstand operating temperatures ranging from -40°C to 70°C, ensuring durability under varied environmental conditions.

Manufactured using flame-resistant insulating materials and silver alloy contacts, the relay ensures flame safety and excellent electrical conductivity with minimal contact resistance (100mΩ). Mounting is designed for PCB with secure screw terminals to facilitate easy installation and reliable connections.

Its compact size, measuring 50mm in length, 15mm in height, and 10mm in width, is suitable for integration into compact electronic devices or industrial control panels. RoHS compliance underscores its adherence to environmental and safety standards.

This relay is widely applicable in industrial automation, electrical controls, signal conditioning, and PCB assembly lines. Its reliable switching and robust construction make it indispensable in manufacturing, HVAC systems, water treatment plants, and other electrical and electronic applications.

This power relay features a 24V DC coil voltage and DPST contact configuration. Coil resistance is 303 ohms with coil power consumption of 1.9W. It supports switching DC voltage up to 60V and AC voltage up to 240V. Operating temperature range is -40°C to 70°C providing reliable performance.

Contacts are made of a silver alloy ensuring low contact resistance of 100 milliohms. Mounting method is PCB with screw terminal type for secure connection. Compact dimensions measuring 50mm length, 15mm height, and 10mm width.

The relay is RoHS compliant and made in Indonesia, suitable for industrial applications. Explore the extensive range of Power Relays and components in the Electronics & Electricals category at EnvMart for your industrial and laboratory requirements.
