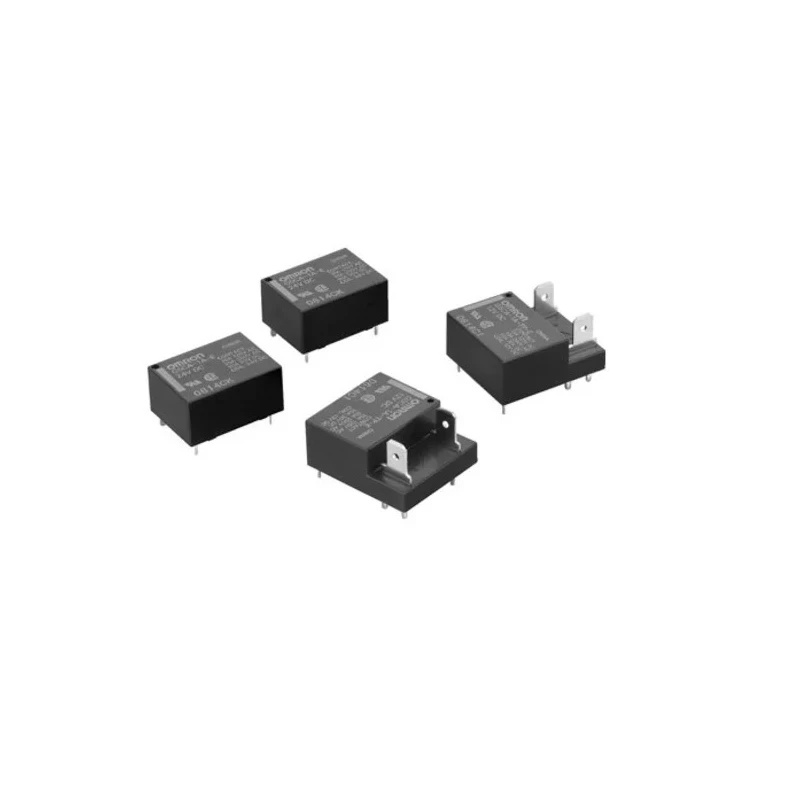

Omron PCB Relay SPST 24V dc Coil 15A Switching Current G5CA-1A-E DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 22mm |
| Model | G5CA-1A-E DC24 |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5CA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 200mW |
Key Features
- The relay operates with a coil voltage of 24V dc and consumes 200mW coil power.
- It features Silver Alloy contacts ensuring reliable switching and low contact resistance of 100mΩ.
- Suitable for switching AC voltages up to 240V ac and DC voltages up to 60V dc.
- Constructed with through-hole terminals and a compact form factor of 22mm length, 16mm width, and 11mm height.
- Designed for operation within a temperature range of -25°C to 70°C, compliant with RoHS standards.
- The relay's coil resistance is approximately 2.9 kΩ, resulting in a coil current of 8.33 mA.
- Ideal for power switching applications in industrial automation, household appliances, and control devices.
Product Description
Omron G5CA-1A-E DC24 PCB Relay is a high-quality, flat power relay designed for switching power in household appliances and industrial device outputs. It operates with a 24V dc coil voltage and features a coil power rating of 200mW, making it energy efficient.
The relay configuration is SPST (single-pole single-throw) with Silver Alloy contacts that provide excellent conductivity and durability. Its contact resistance is low (100mΩ), supporting reliable contact operation over its lifespan.
This relay supports switching AC voltages up to 240V ac and DC voltages up to 60V dc, handling a maximum switching current of 15A. It uses through-hole terminal mounting suitable for PCB installation, with dimensions of 22mm length, 16mm width, and 11mm height, accommodating compact electronic designs.
Designed to operate under temperatures ranging from -25°C minimum to 70°C maximum, it meets RoHS compliance ensuring environmentally friendly manufacturing and materials. The coil resistance is approximately 2.9kΩ, equivalent to a coil current of 8.33 mA, minimizing power consumption.
The relay coil voltage is 24V dc with coil power consumption of 200mW. Silver Alloy contact material ensures durability and excellent electrical conductivity. SPST contact configuration provides simple on/off switching capability.
Compact size with 22mm length, 16mm width, and 11mm height for PCB mounting. Switching current rating of 15A supports a wide range of power devices. Operational temperature ranges from -25°C to 70°C for versatile applications.
Complies with RoHS standards ensuring reduced environmental impact. This Omron PCB relay is ideal for industrial automation, manufacturing controls, power supply switching, and household appliance control systems. Explore more components and relays at EnvMart to find reliable and certified electronic parts for your projects and industrial needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It has a maximum switching current rating of 15A.
This model has dimensions of 22mm in length, 16mm in width, and 11mm in height.
The relay features a single-pole single-throw (SPST) contact configuration.
It is constructed with Silver Alloy contacts, ensuring reliable switching.
The coil power consumption is rated at 200mW.
The contact resistance is low at 100mΩ, which supports reliable operation.
It is designed to operate within a temperature range of -25°C to 70°C.
It can switch AC voltages up to 240V AC and DC voltages up to 60V DC.
This model uses through-hole terminals for PCB mounting.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
The coil resistance is approximately 2.9 kΩ, resulting in a coil current of 8.33 mA.
