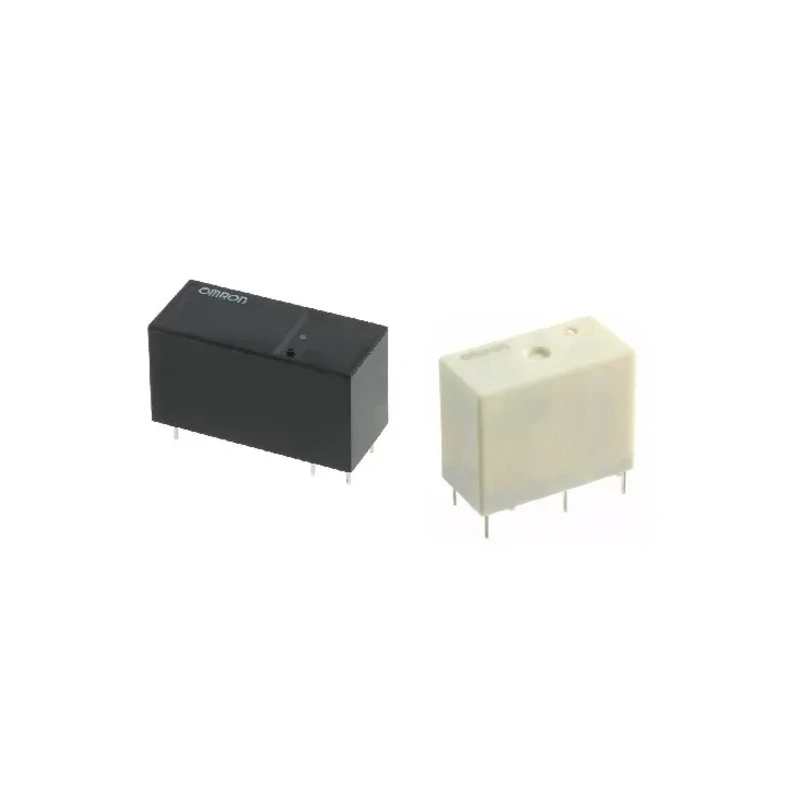

Omron PCB Relay 12V DC Coil 2A Switching Current DPDT G6A-274P-ST-US DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G6A-274P-ST-US DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy Gold Plated |
| Series | G6A |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL/C-UL Certified Models |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
Key Features
- Features a 12V DC coil voltage optimized for efficiency.
- Double Pole Double Throw (DPDT) contact configuration for versatile switching.
- Supports switching currents up to 2 amperes safely.
- Compact dimensions of 50mm length, 10mm width, and 15mm height.
- Silver alloy gold-plated contacts ensure reliable conductivity and longevity.
- Operates within a wide temperature range from -40°C to 70°C for industrial environments.
- Coil resistance rated at 720 ohms and coil power consumption at 200 milliwatts.
- Certified to UL/C-UL standards for quality assurance.
Product Description
Omron G6A-274P-ST-US DC12 PCB Relay is a high-quality power relay designed for PCB mounting applications, featuring a 12V DC coil and a switching current of 2A, ideal for various industrial and automation systems.
This relay uses a DPDT (Double Pole Double Throw) contact configuration, enabling versatile control of electrical circuits. The silver alloy gold-plated contacts provide excellent conductivity and durability, critical for reliable switching in demanding applications.
The device operates across a wide temperature range from -40°C to 70°C, making it suitable for harsh industrial and electrical environments. It has a compact form factor with dimensions of 50mm × 10mm × 15mm, allowing easy integration into densely packed PCB assemblies.
The coil resistance stands at 720 ohms with a coil power of 200mW, enabling low power consumption while maintaining effective switching performance. It is UL and C-UL certified, meeting stringent safety and quality standards.
Features a 12V DC coil voltage optimized for efficiency. Double Pole Double Throw (DPDT) contact configuration for versatile switching. Supports switching currents up to 2 amperes safely. Compact dimensions of 50mm length, 10mm width, and 15mm height.
Silver alloy gold-plated contacts ensure reliable conductivity and longevity. Operates within a wide temperature range from -40°C to 70°C for industrial environments. Coil resistance rated at 720 ohms and coil power consumption at 200 milliwatts.
Certified to UL/C-UL standards for quality assurance. Designed for PCB mounting with PCB pin terminals for easy integration. Manufactured in Japan, ensuring high-quality build and performance.
This relay is widely used in industrial automation, electrical control systems, HVAC, and manufacturing equipment where precise and reliable switching is essential. Omron products are respected for their durability, excellent performance, and compliance with international standards.
Discover the full range of Power Relays from Omron on EnvMart for reliable and efficient circuit control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a coil voltage of 12V DC, optimized for efficiency in various applications.
It supports a maximum switching current of 2 amperes, making it suitable for various electrical circuits.
This unit has compact dimensions of 50mm in length, 10mm in width, and 15mm in height, allowing for easy integration into PCB assemblies.
It utilizes a Double Pole Double Throw (DPDT) contact configuration, providing versatile switching capabilities.
The relay operates within a wide temperature range from -40°C to 70°C, suitable for harsh industrial environments.
The coil resistance is rated at 720 ohms, which contributes to its low power consumption.
The contacts are made from silver alloy gold-plated material, ensuring reliable conductivity and longevity.
It is certified to UL and C-UL standards, ensuring compliance with quality assurance requirements.
The coil power consumption is rated at 200 milliwatts, which is efficient for its operation.
This relay is designed for PCB mounting with PCB pin terminals for easy integration into circuits.
It supports a maximum switching voltage of 30V DC and 125V AC, making it versatile for different applications.
This model is manufactured in Japan, ensuring a high-quality build and performance.
