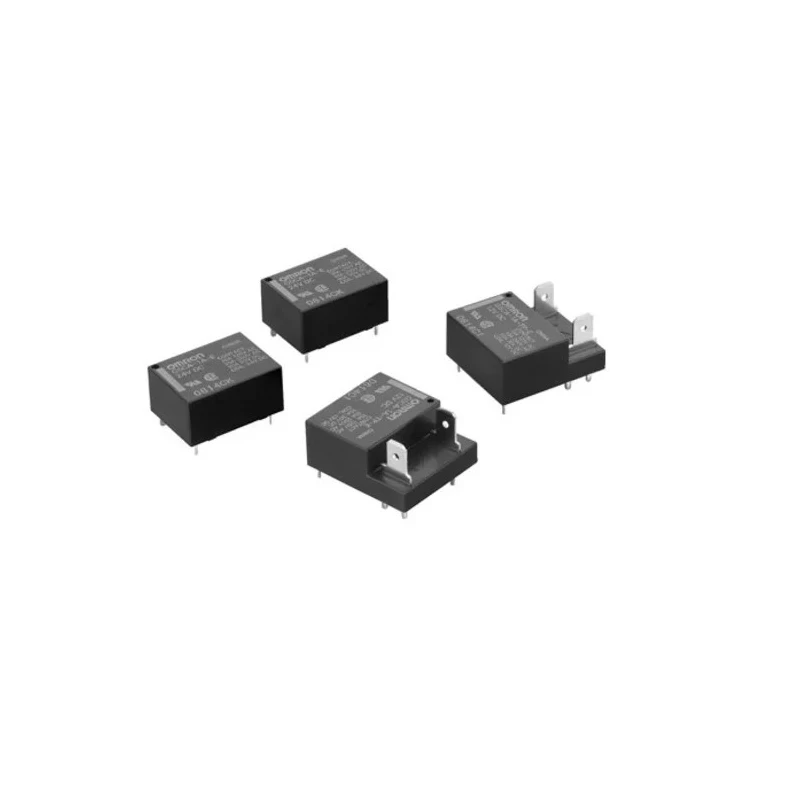

Omron Power Relay PCB Mount SPST 24V DC Coil 15A Switching Current G5CA-1A-E DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 22mm |
| Model | G5CA-1A-E DC24 |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5CA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 200mW |
Key Features
- Features SPST contact configuration enabling simple switching tasks.
- Designed for PCB mount with through hole terminals for secure installation.
- Offers a switching AC voltage up to 240V AC and DC switching up to 60V DC.
- Coil resistance is approximately 2.9 kilo-ohms with a coil power of 200mW.
- Operates reliably within a temperature range of -25°C to 70°C.
- Silver alloy contacts provide low contact resistance and enhanced durability.
- Complies with RoHS standards ensuring regulatory compliance.
Product Description
Omron G5CA-1A-E DC24 power relay is an efficient and reliable PCB mount power relay designed for switching power in household appliances and industrial devices. It features a 24V DC coil voltage and a 15A switching current capacity suitable for power applications.
The relay uses SPST contact configuration, offering straightforward single-pole, single-throw switching. It is designed with through hole terminal types for sturdy PCB mounting and ease of integration.
The relay supports a switching AC voltage of up to 240V and a DC voltage of 60V, making it versatile for a variety of electrical switching needs. It operates within a temperature range from -25°C to 70°C, providing reliability under different environmental conditions.
The coil resistance is 2.9kΩ resulting in a coil power of 200mW, ensuring low power consumption during operation. It is compact in size with dimensions measuring 22mm in length, 16mm in width, and 11mm in height. Silver alloy contacts reduce contact resistance to 100mΩ and enhance longevity and consistent contact quality.
This relay complies with RoHS environmental standards and is made in China. It is ideal for industrial automation, HVAC controls, electrical appliances, and power switching in manufacturing and commercial environments.
SPST contact configuration enables simple switching operations. Through hole PCB mounting ensures secure and reliable installation. 24V DC coil voltage with 200mW coil power supports efficient energizing. Supports switching currents up to 15A and voltages up to 240V AC or 60V DC.
Operates reliably across a broad temperature range from -25°C to 70°C. Compact form factor with dimensions: 22x16x11 mm. Silver alloy contacts provide durable and stable electrical connections. RoHS compliant for environmental safety.
This Omron Power Relay is a high-quality component suitable for integration into industrial, commercial, and household electrical devices. Its robust design and compliance standards make it a dependable choice for controlling power circuits efficiently.
Explore EnvMart's extensive catalog of quality relays and electrical components for your automation and industrial applications.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 15A, making it suitable for various power applications.
The dimensions of this relay are 22mm in length, 16mm in width, and 11mm in height.
It features an SPST (Single Pole Single Throw) contact configuration, allowing for simple switching tasks.
The relay operates with a coil voltage of 24V DC and has a coil power of 200mW.
It supports a maximum switching AC voltage of 240V and a DC voltage of 60V.
The coil resistance is approximately 2.9 kilo-ohms.
It operates reliably within a temperature range of -25°C to 70°C.
This model is designed with through hole terminals for secure PCB mounting.
The contacts are made of silver alloy, which helps reduce contact resistance and enhance durability.
Yes, it complies with RoHS standards, ensuring regulatory compliance for environmental safety.
It is suitable for applications in industrial automation, HVAC controls, and electrical appliances.
This relay belongs to the G5CA series by Omron.
