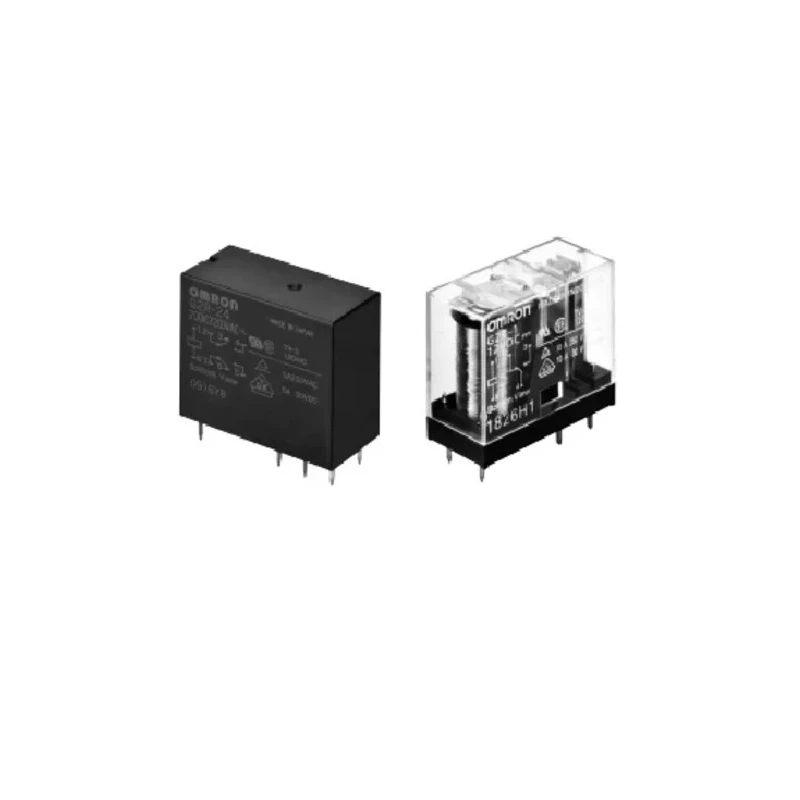

Omron PCB Relay 24V AC Coil 8A Switching Current SPDT G2R-1 AC24

Omron G2R-1 AC24 PCB Relay is a general-purpose power relay designed for industrial, electrical, and automation applications requiring a robust switching solution. This relay features a coil voltage rating of 24V AC and supports a peak switching current of 8A, suitable for a wide range of control circuits.

The relay employs a single pole double throw (SPDT) contact configuration, allowing flexible switching between circuits. The silver alloy contact material guarantees high conductivity and long service life, while a coil resistance of 260 ohms ensures stable coil performance with a power consumption of 900mW.

Designed for secure PCB mounting, the relay utilizes screw terminal connections for ease of installation and reliability in vibration-prone environments. It can safely switch voltages up to 240V AC and 60V DC, supporting diverse electrical loads.

Its operating temperature range from -40°C to 70°C enables use in harsh industrial environments. The compact dimensions of 50mm × 10mm × 15mm facilitate integration in space-constrained electrical panels and devices.

Omron's G2R series Power Relays comply with RoHS environmental standards, ensuring safe use and disposal. Typical applications include industrial machinery, HVAC control systems, manufacturing automation, and electrical equipment protection.

The relay features a coil resistance of 260 ohms and consumes 900mW coil power. It supports switching AC voltage up to 240V and DC voltage up to 60V. Contact material is silver alloy ensuring reliable conductivity and durability.

The relay is designed for PCB mounting with screw terminals for secure connections. Operating temperature range is from -40°C to 70°C, suitable for diverse applications. Dimensions are compact at 50mm length, 15mm height, and 10mm width.

Contact resistance is low at 100mΩ to ensure minimal power loss. Coil current is approximately 46.5mA at 24V AC for efficient operation. Complies with RoHS standards for environmental safety. For reliable power relay solutions within industrial automation or electrical control systems, explore Omron products on EnvMart's Electronics & Electricals category.
