RS PRO Pull Release Emergency Stop Push Button Surface Mount 1 NO/1 NC IP65 IP65
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Model | IP65 |
| IP Rating | IP65 |
| Mount Type | Surface Mount |
| Housing Material | Thermoplastic |
| Standards | IEC 60947-1 and EN 60947-1 |
| Series | RS PRO |
| Contact Configuration | 1 NO/1 NC |
| Head Diameter | 90mm |
| Terminal type | Screw |
| Enclosure dimensions | 94 mm x 94 mm |
| Maximum dc Voltage | 250 V |
| Contacts | 1NC + 1NO |
| Contact DC Voltage | 250V dc |
| Contact AC Voltage | 24V ac |
| Maximum AC Voltage | 400 V |
| Contact Current | 10A |
| Safety Contacts | 1 NO/1 NC |
| Push Button Actuation | Pull Release |
| Push Button Material | Plastic |
| Rated Operational Current Ie - AC-15 (50-60 Hz) [Vac - A] | 24V - 10A / 240V - 6A / 400V - 4A |
| Rated Operational Current DC-13 [Vdc - A] | 24V - 2,8A / 125V - 0.55A / 250V - 0.27A |
Key Features
- The push button is surface mounted for easy installation.
- Features a pull release actuation for emergency stop applications.
- Constructed with a strong thermoplastic housing offering IP65 protection against water jets.
- Includes one normally open (NO) and one normally closed (NC) safety contact.
- Offers high visibility red color and 90 mm head diameter for quick identification.
- Terminal type is screw for secure wiring connections.
- Complies with IEC 60947-5-1 and EN 60947-5-1 standards for industrial usage.
- Suitable for use in automotive, industrial controls, building/public works, and medical equipment applications.
Product Description

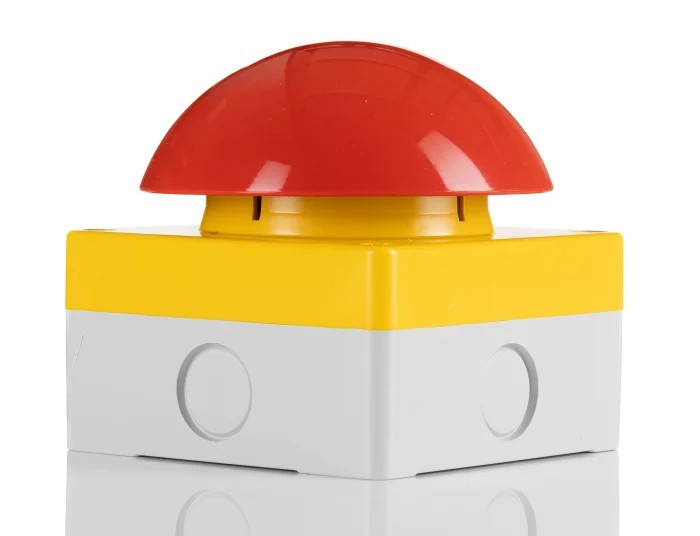

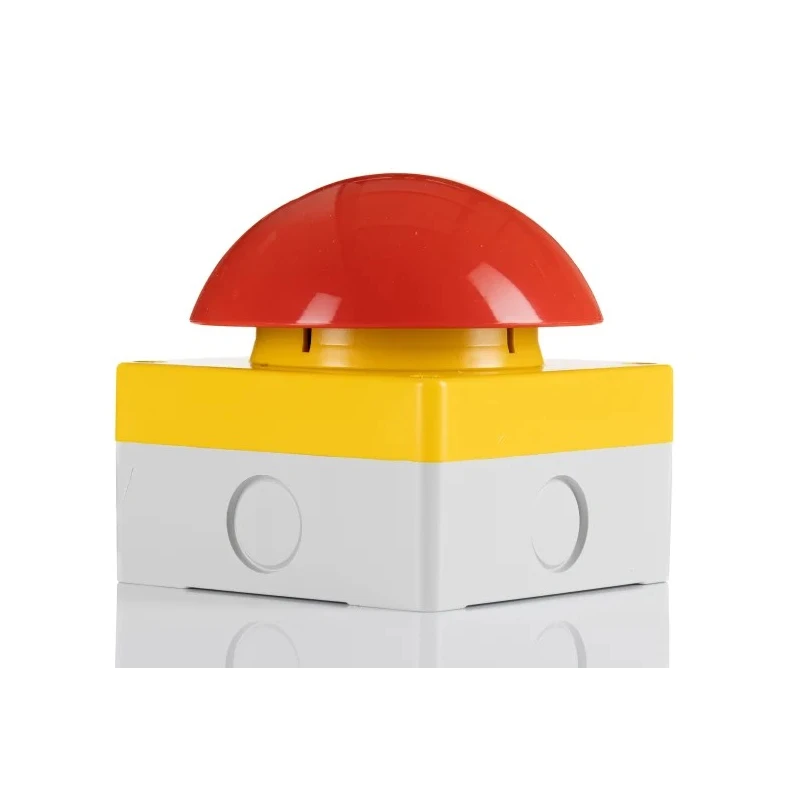

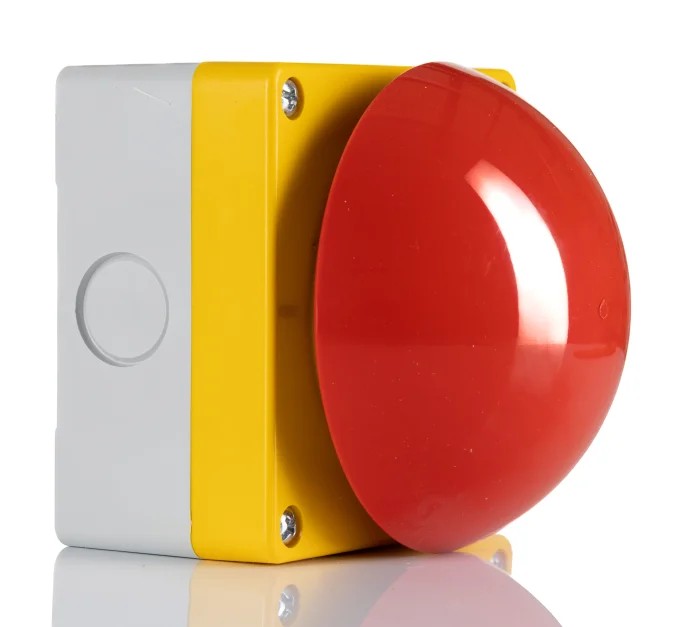

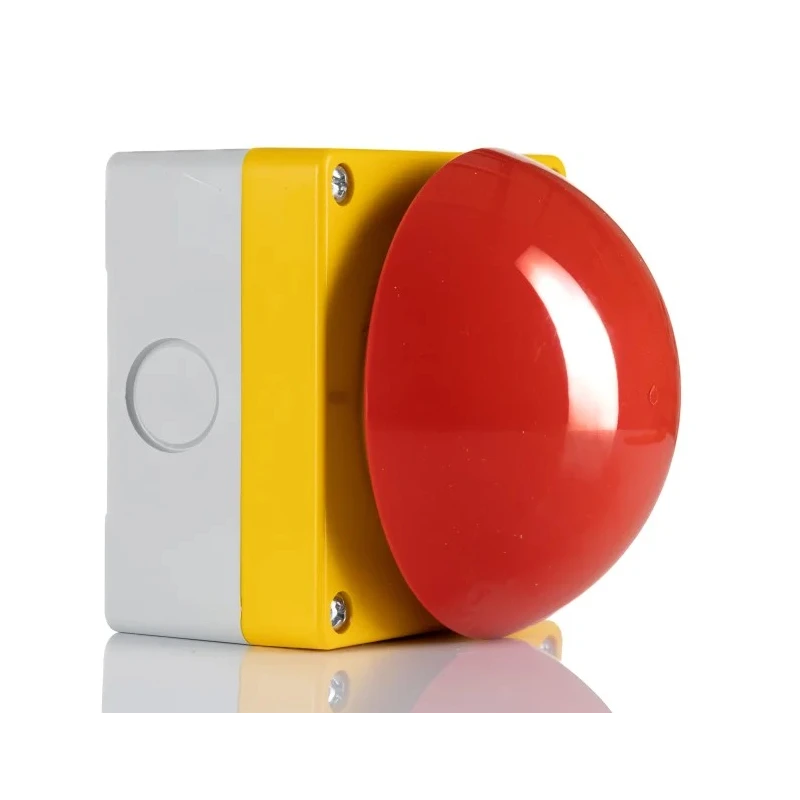

RS PRO IP65 pull release emergency stop push button surface mount unit provides a robust solution for urgent machine shutdown in industrial environments. It features a sizeable mushroom head with 90 mm diameter in a vivid red color for clear visual identification. Designed with a pull to release mechanism, it supports 1 NO and 1 NC contacts, ensuring reliable operation under safety-critical conditions.
The housing is made from durable thermoplastic material rated to IP65, protecting the internal components from dust and water jets, making it suitable for harsh conditions encountered in manufacturing, automotive, and building automation settings.
This emergency stop push button has screw terminal connections for secure and easy wiring. It conforms to IEC 60947-5-1 and EN 60947-5-1 safety standards, guaranteeing performance and compliance in industrial and commercial controls.
With maximum operating voltages of 250V DC and 400V AC and a rated contact current of 10A, this push button is designed for demanding electrical environments. Applications include industrial control panels, lighting control systems, and medical equipment where quick shutdown is vital for safety.

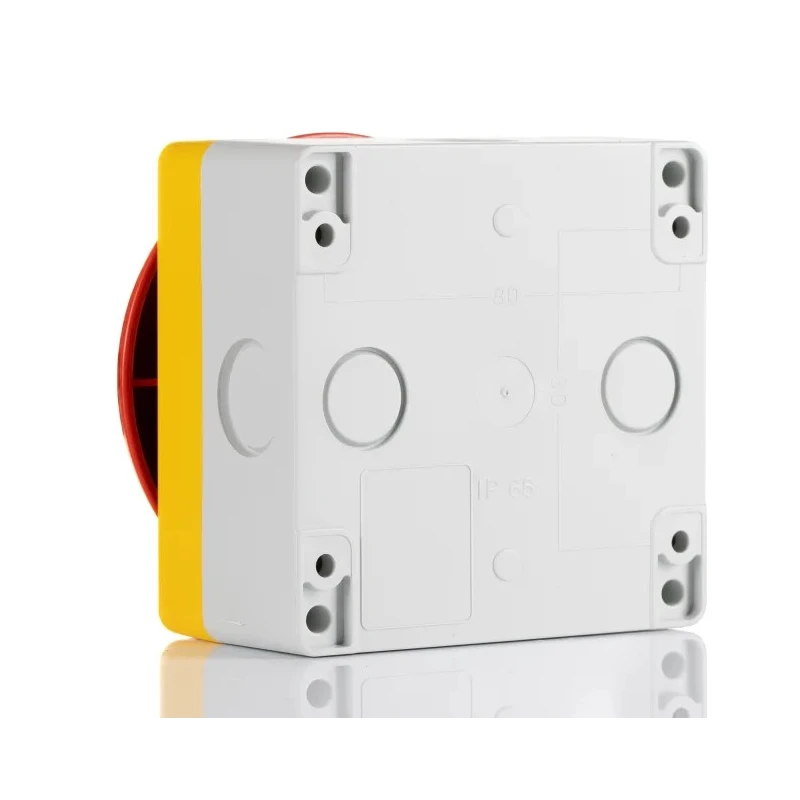

The compact enclosure dimensions of 94 mm x 94 mm enable surface mounting within control stations or safety enclosures. Its sturdy construction ensures it withstands aggressive impacts from hand or foot operation during emergencies.
The push button is surface mounted for easy installation. Features a pull release actuation for emergency stop applications. Constructed with a thermoplastic housing providing IP65 ingress protection. Includes 1 NO and 1 NC safety contacts for control reliability.
Rated for 250 V DC and 24 V AC operations with 10A contact current. Complies with IEC and EN 60947 safety standards. Suitable for automotive, industrial, building, and medical equipment applications. Compact 94 x 94 mm enclosure size allows versatile mounting.
Explore more safety and control products in the Emergency Stop Push Buttons category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltages for this model are 250V DC and 400V AC.
This push button features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
The enclosure dimensions of this emergency stop push button are 94 mm x 94 mm.
This model has an IP65 rating, providing protection against dust and water jets.
It features a pull release actuation mechanism for emergency stop applications.
The rated contact current for this emergency stop push button is 10A.
The housing of this model is constructed from thermoplastic material.
It complies with IEC 60947-5-1 and EN 60947-5-1 standards for industrial usage.
The head diameter of this model is 90 mm, which aids in quick identification.
This model features screw terminal connections for secure wiring.
It is suitable for applications in automotive, industrial controls, building/public works, and medical equipment.
The push button is colored red, providing high visibility for emergency situations.
