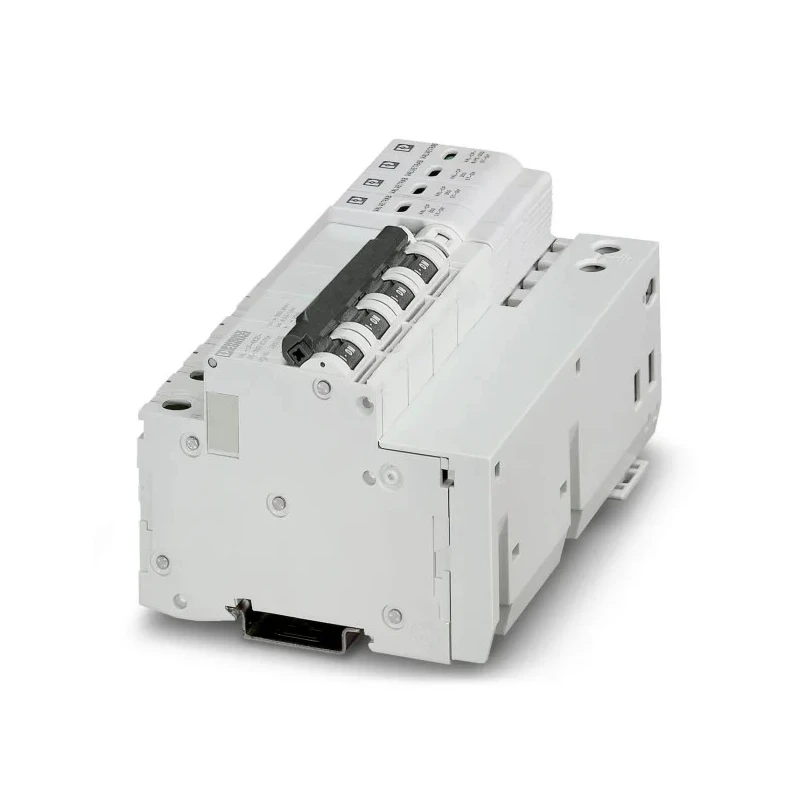

Phoenix Contact Surge Arrester 30kA DIN Rail Mount VAL-CP-MCB-3S-350/40/FM 2882750
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Phoenix Contact |
| Model | 2882750 |
| Depth | 76mm |
| Mount Type | DIN Rail |
| Series | VAL-CP-MCB-3S-350/40/FM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Maximum Surge Current | 30kA |
Key Features
- The device has a maximum operating temperature of 60°C.
- It supports a nominal frequency of 50 Hz for alternating current systems.
- Connection is via screw terminals with a tightening torque of 3.5 Nm.
- Installation requires a conductor cross section ranging from 4 mm² to 25 mm².
- The arrester operates within a temperature range of -25°C to 60°C.
- Stripping length for wiring is 14 mm for secure contacts.
- It conforms to IEC 60364 and EN 61643-11 standards for surge protection devices.
- The product is manufactured in Hungary with proven reliability.
Product Description
Phoenix Contact 2882750 Surge Arrester is a Type 2 protection device designed to safeguard electrical installations from high surge currents up to 30kA. It mounts easily on DIN rails, suitable for industrial and commercial electrical panels.
This surge arrester supports both AC and DC systems with an operating voltage of 250 V and nominal frequency of 50 Hz. It uses screw connections for secure wiring, accommodating conductor cross sections from 4 mm² to 25 mm² with a recommended tightening torque of 3.5 Nm.
The device operates effectively within ambient temperatures ranging from -25°C to a maximum of 60°C, ensuring stable performance in varied environmental conditions. It features a strip length of 14 mm for conductor preparation, facilitating robust and reliable electrical contacts.
Certified to standards IEC 60364-4-443, IEC 60364-5-534, EN 61643-11 (2012), and IEC 61643-11 (2011), this surge arrester complies with internationally recognized safety and performance criteria, making it ideal for industrial automation, electrical distribution, and HV/LV systems protection.
The device accommodates maximum surge currents up to 30kA. Mount type is DIN rail, providing ease of installation and modularity. Product depth measures 76mm, optimized for panel mounting. Connection method ensures safe and reliable screw terminal wiring.
Switching function includes changeover contact for monitoring arrester and backup fuse status. Designed for use in electrical, automation, and power distribution industries.
This surge arrester is manufactured in Hungary and is supplied as a new, reliable unit suitable for various industrial and commercial surge protection applications. Explore the wide range of Surge Protection Devices available at EnvMart to find compatible equipment for your installation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The surge arrester has a maximum surge current rating of 30kA, designed to protect electrical installations from high surge currents.
It operates effectively within a temperature range of -25°C to 60°C, ensuring stable performance under varying environmental conditions.
This surge arrester is designed for DIN rail mounting, facilitating easy installation in electrical panels.
Connection is via screw terminals, accommodating conductor cross sections from 4 mm² to 25 mm², with a recommended tightening torque of 3.5 Nm.
It conforms to IEC 60364-4-443, IEC 60364-5-534, EN 61643-11 (2012), and IEC 61643-11 (2011) standards for surge protection devices.
The product depth measures 76mm, optimized for panel mounting.
It supports a nominal frequency of 50 Hz for alternating current systems.
The stripping length for wiring is 14 mm, which ensures secure contacts.
Yes, it is designed to support both AC and DC systems with an operating voltage of 250 V.
This surge arrester is manufactured in Hungary, ensuring quality and reliability.
It is suitable for industrial automation, electrical distribution, and HV/LV systems protection.
It includes a changeover contact for monitoring the arrester and backup fuse status.
