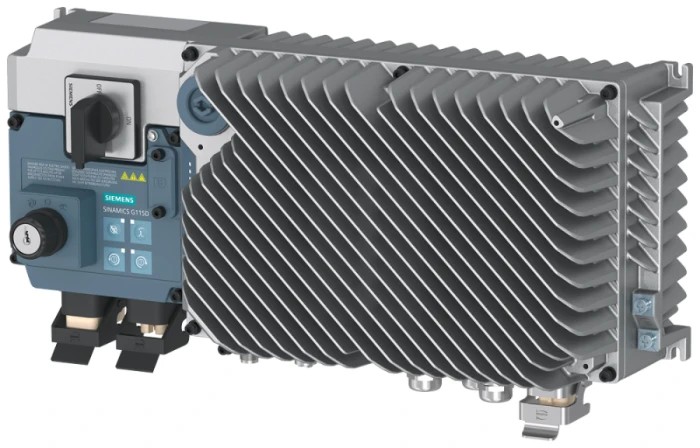

Siemens Inverter Drive 3 kW 3 Phase SINAMICS G115D Series 480V 15.4 A 6SL3520-2XN03-0AF0

Free Delivery in India | Lowest Global Shipping Charges

Siemens Inverter Drive 3 kW 3 Phase SINAMICS G115D Series 480V 15.4 A 6SL3520-2XN03-0AF0

Name: Siemens Inverter Drive 3 kW 3 Phase SINAMICS G115D Series 480V 15.4 A 6SL3520-2XN03-0AF0
Brand: Siemens
SKU: 298363
Price: 3780.56 USD
Availability: InStock



Category Inverter Drive Brand Siemens Condition New

Specifications

Country of Origin	United Kingdom
Brand	Siemens
Model	6SL3520-2XN03-0AF0
IP Rating	IP66, IP65
Overall Length	240mm
Series	SINAMICS G115D
Overall Width	425mm
Power Rating	3kW
Maximum Operating Temperature	55°C
Output Frequency	550Hz
Minimum Operating Temperature	-30°C
Number of Phases	3
Maximum Output Current	15.4A
Standards/Approvals	KCC, REACH, SEMI F47, UL, CE, C-Tick (RCM), cUL, EAC
Maximum Supply Voltage	480V
Overall Depth	134mm
Minimum Supply Voltage	380V
Better World Claim	Saves Energy

Key Features

Delivers 3 kW power output with three phase supply for efficient operation.
Supports maximum output current of 15.4 A for precise motor control.
Ip66 and IP65 rated for protection against dust and water ingress.
Wide operating temperature range from -30°C up to 55°C for harsh environments.
Compatible with SIMOGEAR 2KJ8 geared motors and asynchronous IE3 or synchronous IE4 efficiency motors.
Integrated STO safety function for enhanced operational safety.
Compact dimensions of 240mm length, 425mm width, and 134mm depth for easy installation on machines.
Supports output frequency up to 550 Hz allowing versatile speed control.

Product Description

Siemens 6SL3520-2XN03-0AF0 Inverter Drive is a high-performance 3 kW power rating unit designed for use in industrial, manufacturing, and automation applications requiring precise speed control of electric motors. This robust 3 phase drive from the SINAMICS G115D Series supports input voltages from 380 V to 480 V with a maximum output current of 15.4 A.

Featuring an IP66 and IP65 rating, this drive offers exceptional protection against harsh environmental conditions such as dust and water exposure, making it well-suited for heavy industrial use. It operates reliably within a temperature range of -30°C to 55°C, ensuring performance stability across diverse climate conditions.

The inverter is engineered for horizontal conveyor system applications that demand either simple speed control or sophisticated encoderless vector control. It supports SIMOGEAR 2KJ8 geared motors along with three-phase asynchronous motors rated IE3 efficiency and synchronous reluctance motors achieving IE4 efficiency levels, promoting energy savings and operational efficiency.

Delivers 3 kW power output with three phase operation for efficient motor drives. Maximum output current of 15.4 A provides precise control capability. IP66/IP65 protection rating ensures durability in industrial environments.

Wide ambient operating temperature range of -30°C to 55°C for reliability. Integral STO safety feature with fail-safe digital input and PROFIsafe functionality. Compact design dimensions: 240mm length, 425mm width, 134mm depth.

Output frequency up to 550 Hz for versatile motor speed control. Modular installation on the machine eliminates the need for control cabinets. Compliant with major international standards including UL, CE, REACH, and KCC.

This Siemens Inverter Drive is manufactured in the United Kingdom, assuring quality and engineering excellence typical of Siemens products. It is ideal for applications in industrial automation, manufacturing lines, conveyor systems, and other demanding electrical motor control systems.

EnvMart offers this product as part of the Automation & Control Gear category for industrial electrical equipment, supporting efficient and sustainable factory automation.
