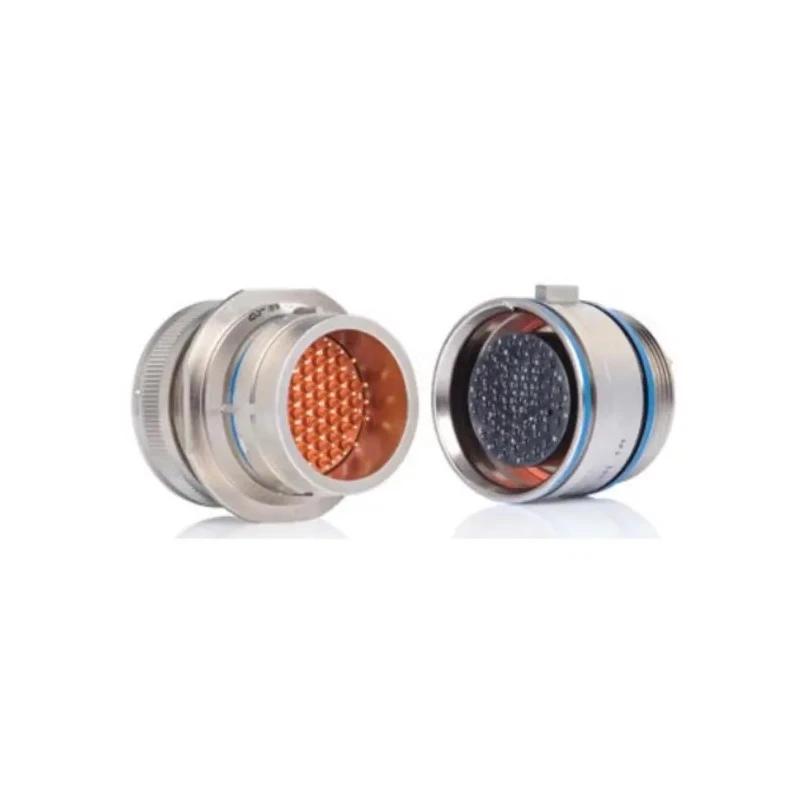

TE Connectivity MIL Spec Circular Connector Male/Female Panel Mount Straight 55 Contacts Shell Size 23 DBAS 974-23-55 SN 059
Specifications
| Country of Origin | France |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | DBAS 974-23-55 SN 059 |
| Mount Type | Panel |
| Housing Material | Aluminium |
| Contact Material | Gold over Nickel |
| Series | DBAS 9 |
| Termination Type | Crimp |
| Standards/Approvals | RoHS |
| Contact Plating | Nickel Plated |
| Number of Contacts | 55 |
| Connector Gender | Male/Female |
| Shell Size | 23 |
| Mating Type | Push Pull |
| Connector Size | Standard |
Key Features
- Offers push-pull mating type for secure connections.
- Crimp termination ensures reliable wire connections.
- Aluminium housing with nickel plating for durability.
- Suitable for harsh aerospace, military, and space applications.
- Complies with RoHS standards for environmental compliance.
- Straight orientation for panel mount installations.
- Connector size is standardized for compatibility.
- Gold over nickel contact material provides corrosion resistance and conductivity.
Product Description
TE Connectivity DBAS 974-23-55 SN 059 is a MIL Spec Circular Connector designed for advanced aerospace, military, and industrial applications, offering exceptional reliability with 55 contacts and a shell size of 23. This male/female panel mount connector features a straight orientation and push-pull mating type for ease of use and secure connections.
The connector is constructed with an aluminium housing plated with nickel to ensure robust protection against environmental and mechanical stresses. Contacts are gold over nickel plated, providing excellent conductivity and resistance to corrosion, ideal for high-performance power and signal transmission.
Termination is via crimping, ensuring strong and reliable wire-to-panel connections. This connector meets RoHS standards, confirming adherence to environmental safety and material compliance regulations.
Applications include aerospace systems, military equipment, space technology, and other demanding industrial environments where electrical integrity and durability are critical.
Key technical attributes such as 55 contacts, shell size 23, panel mounting style, and standardized connector size make it compatible and versatile for complex electrical systems requiring MIL Spec connectors.
Push-pull mating type providing secure connection. Crimp termination for reliable wire connections. Aluminium housing with nickel plating offers mechanical durability. Gold over nickel contact plating delivers corrosion resistance and conductivity.
Compliant with RoHS environmental standards. Straight orientation for straightforward panel mount applications. Standardized connector size for compatibility in various systems. Manufactured in France ensuring stringent quality control.
Suitable for use in industrial, aerospace, military, and space applications requiring rugged, reliable connectors. Discover more products in the Mil Spec Circular Connector category at EnvMart for your advanced electronic and power connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 55 contacts, making it suitable for complex electrical connections.
The shell size of this connector is 23, which is standardized for compatibility in various systems.
It utilizes crimp termination, ensuring strong and reliable wire-to-panel connections.
The housing is made of aluminium with nickel plating, and the contacts are gold over nickel plated for corrosion resistance and conductivity.
This connector has a straight orientation, which is suitable for panel mount installations.
Yes, it complies with RoHS standards for environmental safety and material compliance.
It features a push-pull mating type, providing secure connections during use.
It is suitable for aerospace systems, military equipment, space technology, and other demanding industrial environments.
This model is a male/female connector, allowing for versatile connections.
It is manufactured in France, ensuring stringent quality control during production.
The gold over nickel plating provides excellent conductivity and resistance to corrosion, which is critical for high-performance applications.
This connector supports panel mounting, making it easy to install in various applications.
