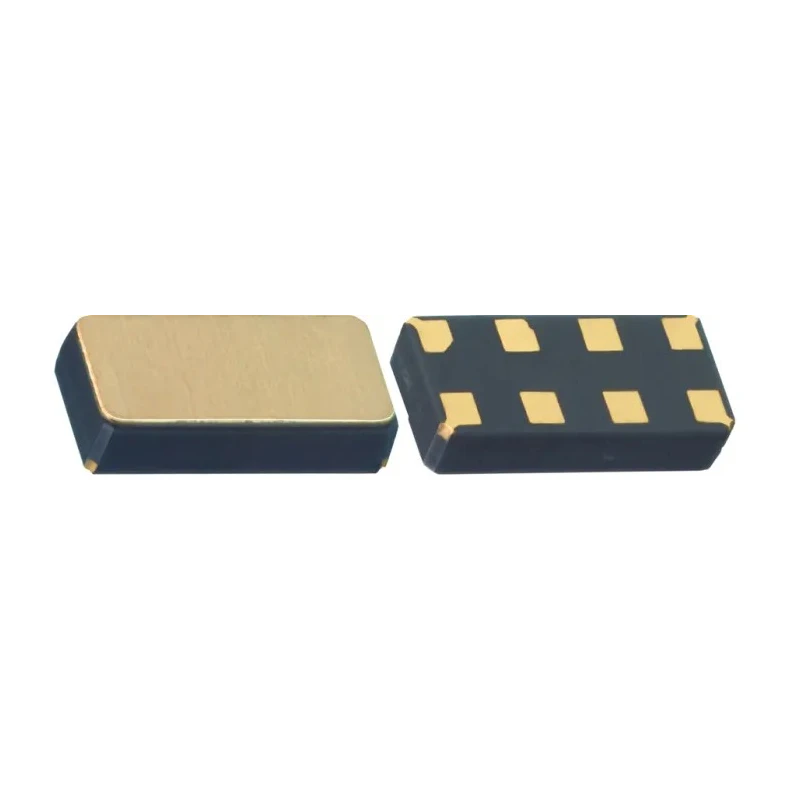

Abracon Real Time Clock Module 8-Pin Surface Mount I2C Bus 1V-5V AB-RTCMC-32.768KHZ-AIGZ-S7-T

The Abracon AB-RTCMC-32.768KHZ-AIGZ-S7-T Real Time Clock module is a precision timing device featuring an 8-pin surface mount package and an I2C bus interface. Operating at a voltage range of 1V to 5V, it is designed to provide accurate timekeeping with date format YY:MM:DD:dd and time format HH:MM:SS:hh.

This RTC module generates a 32.768 kHz square wave signal with a built-in crystal oscillator and offers automatic leap year compensation, ensuring reliable accuracy over extended periods. It consumes a low operating current of 35 microamps and an ultra-low timekeeping current of 350 nanoamps at 3 volts, making it efficient for battery-operated and low power devices.

Its robust operating temperature range from -40 degrees Celsius to 85 degrees Celsius allows it to function in a wide variety of environments, including demanding commercial and automotive electronics applications. The compact surface mount package measures just 3.2mm in length, 1.5mm in width, and 0.8mm in height, making it suitable for space-constrained PCB designs.

The product complies with RoHS and RoHS II standards, emphasizing environmental compliance and manufacturing quality. It is widely used in communication systems, measuring instruments, commercial electronics, and automotive equipment.

Its I2C serial interface supports 400 kHz speeds for efficient data transfer. The combination of features makes this module ideal for industrial, commercial, automotive, and general electronics applications requiring precise real-time clock functionality.

Provides a 32.768 kHz square wave output for precise timekeeping. Supports date format YY:MM:DD:dd and time format HH:MM:SS:hh. Low operating current of 35 µA and ultra-low timekeeping current of 350 nA at 3 V. Built-in crystal and automatic leap year compensation for enhanced accuracy.

Wide operating temperature range from -40°C to 85°C suitable for industrial and automotive applications. Compact surface mount package dimensions: 3.2mm length, 1.5mm width, and 0.8mm height. RoHS and RoHS II compliant ensuring environmental safety.

Ideal for communication, measuring equipment, commercial, and automotive electronics. Explore the full range of Abracon components and find similar real-time clock solutions at EnvMart.
