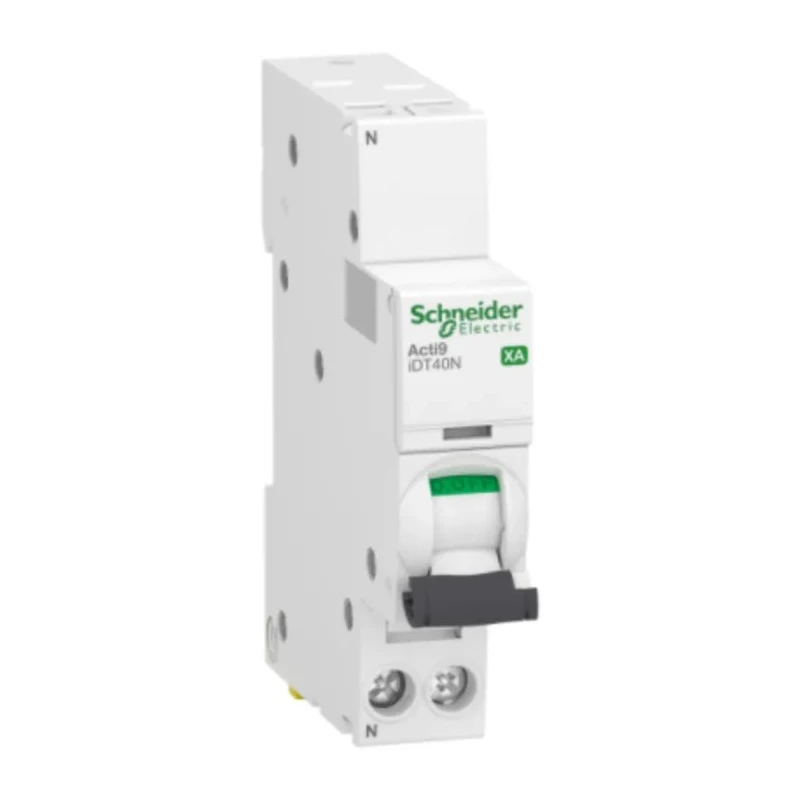

Schneider Electric Miniature Circuit Breaker 1-Pole 32A Type C 400V AC 6000A Breaking Capacity A9PA4632
Specifications
| Country of Origin | Hungary |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9PA4632 |
| Depth | 74mm |
| Width | 18mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | Acti9 iDT40 |
| Breaking Capacity | 6000A |
| Number of Poles | 1 |
| Standards/Approvals | CE, EN/IEC 60898-1, NF, EN/IEC 60947-2 |
| Rated AC Voltage | 400V |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Operates at a current rating of 32A with Type C tripping characteristics.
- Designed for 1-pole configuration suitable for DIN rail mounting.
- Rated AC voltage of 400V with a breaking capacity of 6000A for safety and protection.
- Features a thermal magnetic tripping mechanism ensuring precise overload and short-circuit protection.
- Compact dimensions with 85mm height, 74mm depth, and 18mm width for efficient panel installation.
- Reset actuator is a durable toggle switch for easy manual operation.
- Complies with CE, EN/IEC 60898-1, NF, and EN/IEC 60947-2 standards for quality assurance.
- Offered in white color with a pollution degree rating of 3 and IP20/IP40 degree of protection.
Product Description
Schneider Electric A9PA4632 Miniature Circuit Breaker is a robust 1-pole device designed primarily for electrical distribution applications requiring reliable overload and short circuit protection.
It operates at a current rating of 32A with Type C tripping characteristics, making it suitable for general-purpose protection in commercial and industrial settings. The circuit breaker supports a rated AC voltage of 400V and features a breaking capacity of 6000A, ensuring effective interruption of fault currents and enhancing safety.
With a compact form factor measuring 85mm in height, 74mm in depth, and 18mm in width, it facilitates easy DIN rail mounting in distribution panels without occupying excessive space.
The thermal magnetic tripping mechanism provides fast response to overcurrent conditions while maintaining operational stability during transient surges. The toggle switch actuator enables straightforward manual reset, improving user experience during maintenance or fault clearance.
This product adheres to rigorous international standards including CE marking, EN/IEC 60898-1, NF, and EN/IEC 60947-2 certifications, attesting to its compliance with global electrical safety norms.
Ideal for use in industrial, manufacturing, commercial, and residential electrical distribution boards, the A9PA4632 circuit breaker offers dependable circuit protection and system reliability.
Operates at 32A with Type C trip curve for versatile protection. 1-pole design optimized for DIN rail mounting configuration. Rated for 400V AC systems with 6000A interrupting capacity. Thermal magnetic trip unit technology for precise protection.
Compact size: 85mm(H) x 74mm(D) x 18mm(W). Toggle switch for manual reset and operation. Compliant with CE, EN/IEC 60898-1, NF, EN/IEC 60947-2 standards. Explore the range of Schneider Electric products on EnvMart for enhanced circuit protection solutions aligned with industry standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a current rating of 32A, making it suitable for general-purpose protection.
This model features a breaking capacity of 6000A, ensuring effective interruption of fault currents.
The rated AC voltage for this circuit breaker is 400V, suitable for various electrical distribution applications.
It utilizes a thermal magnetic tripping mechanism for precise overload and short-circuit protection.
This model is designed for DIN rail mounting, facilitating easy installation in distribution panels.
The dimensions are 85mm in height, 74mm in depth, and 18mm in width, allowing for compact installation.
It has Type C tripping characteristics, making it suitable for a variety of applications including commercial and industrial settings.
It features a toggle switch as the reset actuator, allowing for easy manual operation.
This circuit breaker complies with CE, EN/IEC 60898-1, NF, and EN/IEC 60947-2 standards for quality assurance.
The country of origin for this product is Hungary.
It belongs to the Acti9 series, specifically the Acti9 iDT40 range.
This model is a 1-pole circuit breaker, designed for single-phase applications.
