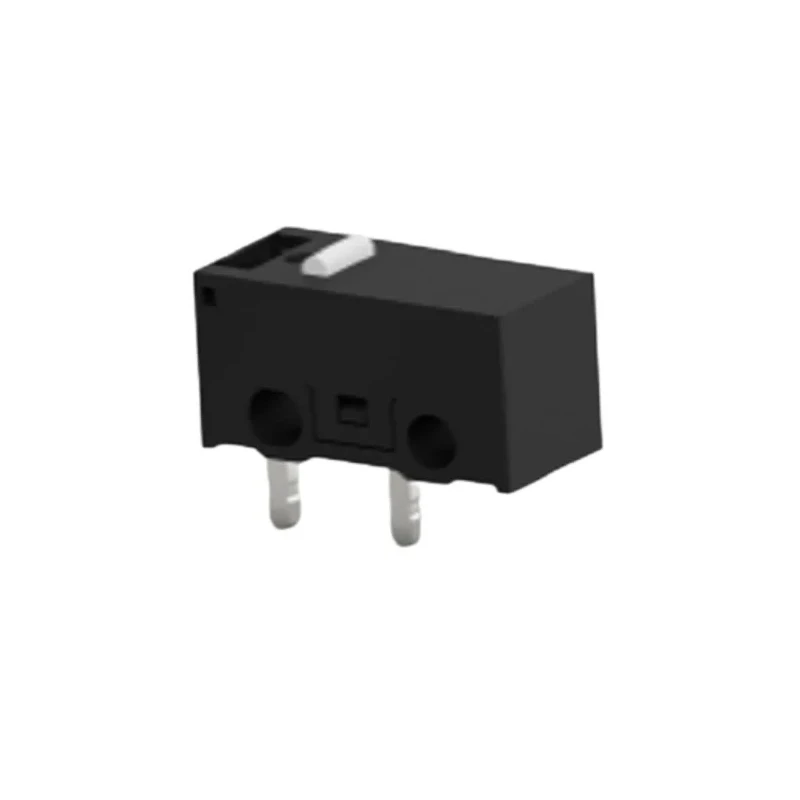

TE Connectivity Pin Plunger Snap Action Miniature Micro Switch, PCB Terminal, 0.1A, SPST SAJ101XPP0N74SNOPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XPP0N74SNOPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- Features a pin plunger actuator for precise snap action switching.
- Designed as a miniature micro switch suitable for tight spaces.
- Offers a contact current rating of 0.1A for low power applications.
- Equipped with PCB terminals for easy printed circuit board integration.
- SPST contact configuration ensures simple on/off switching.
- Operating force rated at 0.75N for consistent tactile response.
- Mechanical life expectancy of up to 1,000,000 cycles ensures long-term reliability.
- Operational temperature range from -25°C to 75°C supports various environments.
Product Description
TE Connectivity SAJ101XPP0N74SNOPTQ is a pin plunger snap action miniature micro switch designed for applications requiring precise and reliable switching. This micro switch features a compact pin plunger actuator providing consistent and rapid switching action. It is tailored for use in electronics, home appliances, consumer electronics, and factory automation systems.
The switch's PCB terminal configuration simplifies integration into printed circuit boards, enhancing design flexibility and assembly. Its SPST (Single Pole Single Throw) contact configuration supports straightforward electrical control functions in a compact form factor.
Rated for a contact current of 0.1A, it is ideal for low power circuits requiring dependable switching without large current handling demands. The operating force of 0.75 newtons provides a tactile and repeatable response suitable for precise control applications.
With a mechanical life of one million cycles, this miniature micro switch assures long service life even in demanding industrial and commercial environments. Its operating temperature range from -25°C to 75°C expands its usability under various climate and operational conditions.
The product complies with RoHS directives ensuring it meets environmental safety regulations. Manufactured in China to high-quality standards, this switch is dimensionally compatible with other popular brands to facilitate easy replacement or design integration.
Pin plunger actuator for snap action switching. Miniature size enables tight-space installation. Contact current rating of 0.1A suitable for low power applications. PCB terminal design for straightforward circuit board installation.
SPST contact configuration for simple on/off operation. Operating force of 0.75N guarantees consistent tactile feedback. Mechanical life expectancy up to 1,000,000 cycles. Operational temperature range from -25°C to 75°C.
Compliant with RoHS environmental standards. Manufactured in China under strict quality assurance.
This Micro Switch is widely used in industrial automation, home appliance controls, consumer electronics, and other electrical system applications requiring reliable and precise switching operations.
Explore our extensive range of TE Connectivity switches and components in the Electronics & Electricals category at EnvMart for your industrial and commercial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this micro switch is 0.1A, making it suitable for low power applications.
The operating temperature range for this model is from -25°C to 75°C, allowing it to function in various environmental conditions.
This switch features a pin plunger actuator, which provides precise snap action switching.
It has a mechanical life expectancy of up to 1,000,000 cycles, ensuring long-term reliability in use.
The operating force for this micro switch is rated at 0.75N, providing consistent tactile feedback during operation.
This model is equipped with PCB terminals, facilitating easy integration into printed circuit boards.
The contact configuration of this switch is SPST (Single Pole Single Throw), allowing for simple on/off operation.
Yes, it complies with RoHS directives, ensuring it meets environmental safety regulations.
It is suitable for use in electronics, home appliances, consumer electronics, and factory automation systems.
This micro switch is manufactured in China under strict quality assurance standards.
This model belongs to the SAJ1 series of micro switches.
This switch is classified as a miniature micro switch, designed for tight-space installations.
