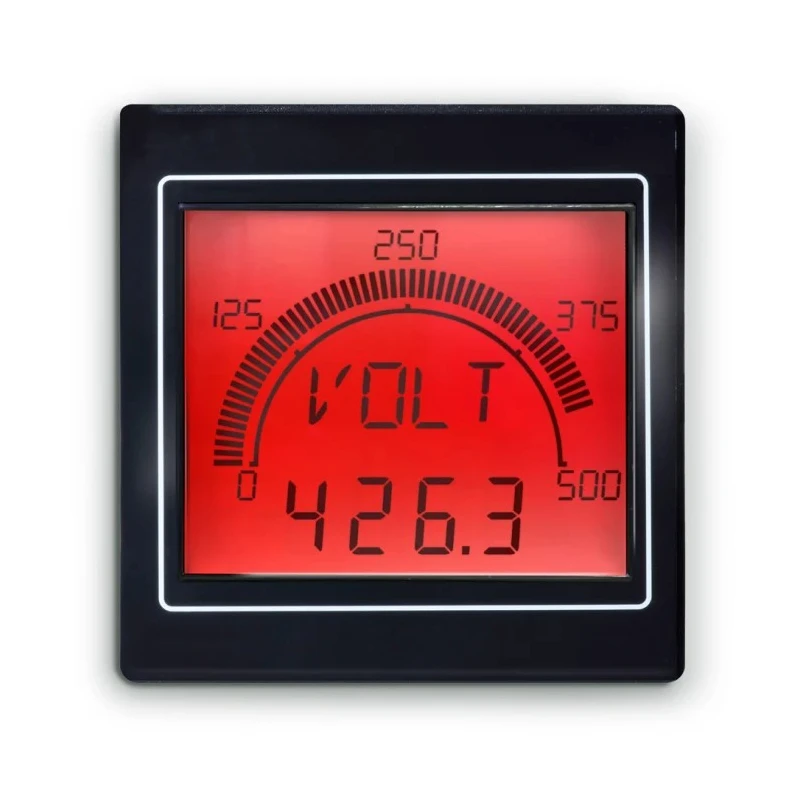

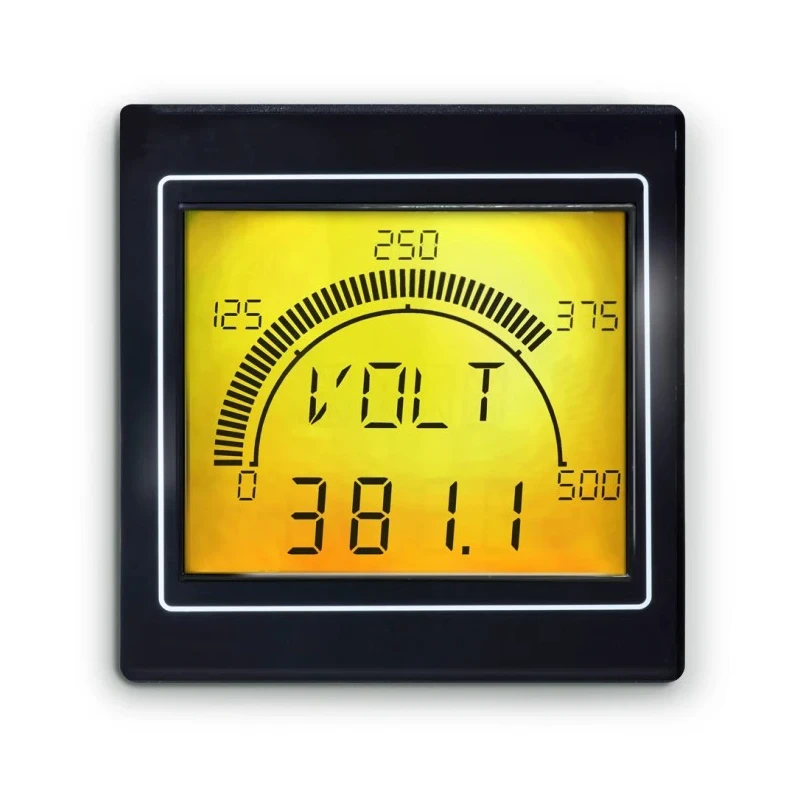

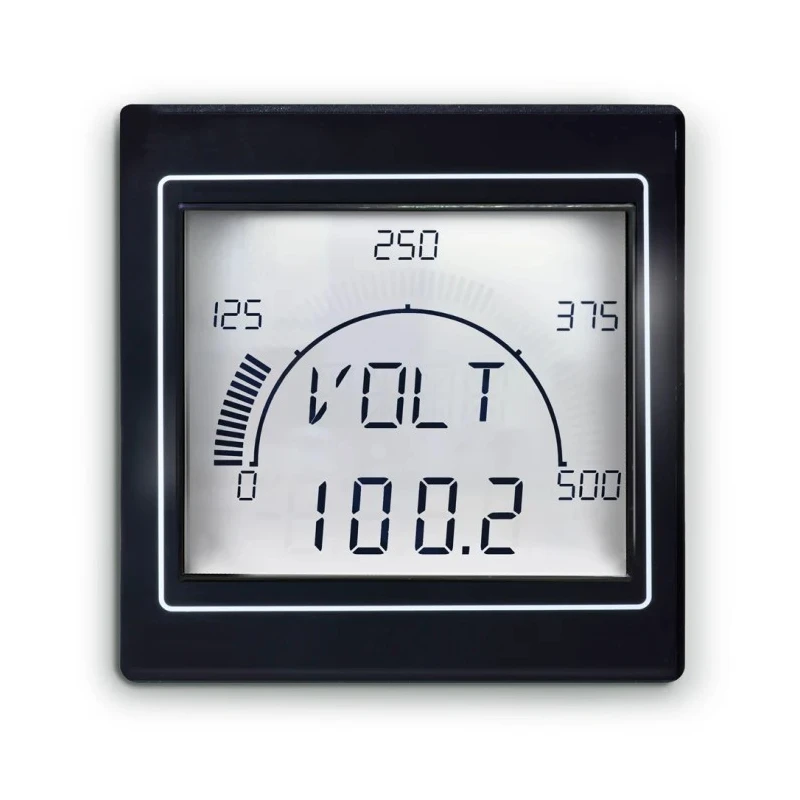

Trumeter Multi-Function Panel Meter for Power, Voltage, Current, Frequency, 68mm x 68mm APM-MAX-M23-PL-4R
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display Type | LCD |
| Display | screen |
| Brand | Trumeter |
| Model | APM-MAX-M23-PL-4R |
| Depth | 45mm |
| Series | APM |
| Maximum Operating Temperature | 60°C |
| Meter Type | Electronic |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Digit height | 14.5mm |
| Standards/Approvals | CE, RoHS, UL |
| Properties Measured | Power, Voltage, Current, Frequency |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
| 2 independent outputs | 2 digital (open collector), 1 analogue (4 - 20mA) |
Key Features
- Features a large 25% bigger 81.5mm x 66mm LCD screen with 60-segment bar graph display.
- Measures 0 - 50mA DC direct or 0 - 500mV DC with a shunt for lower voltage applications.
- Includes programmable scaling, range, backlight color, two alarm set-points, and two digital outputs.
- Offers 0.5% voltage accuracy and 0.1% frequency accuracy for precise monitoring.
- Equipped with Modbus RTU/TCP IP communication for seamless integration into systems.
- Housed in a 108mm x 108mm x 64mm enclosure suitable for 2.7 inch square or 4 inch diameter cutouts.
- IP65 rated for protection against dust and water ingress, ideal for industrial environments.

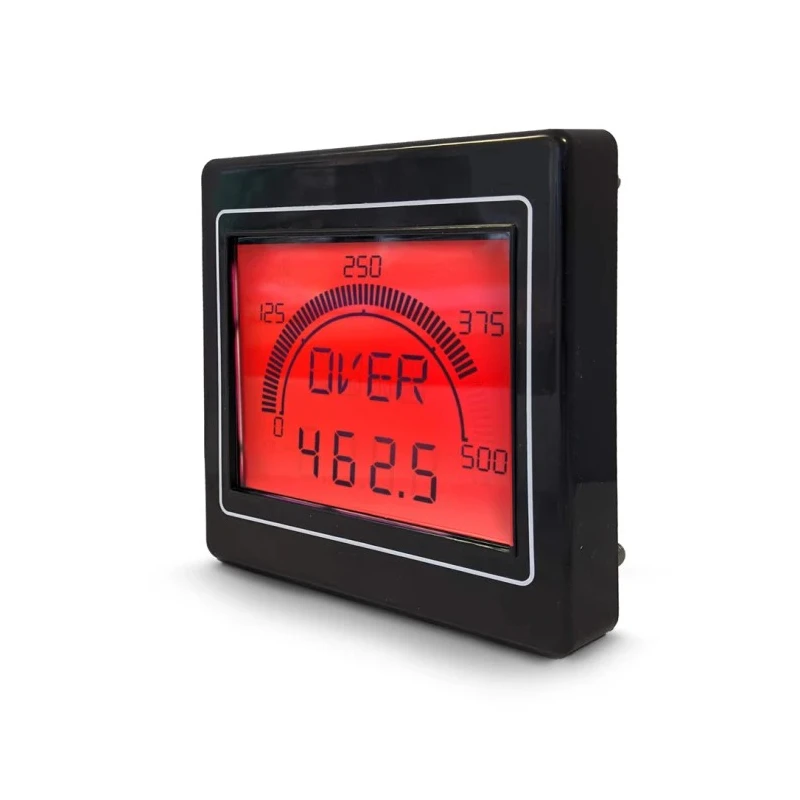

- Dynamic RGB backlight and starburst display for clear alarm, message indication, and user alerts.
Product Description
Trumeter APM-MAX-M23-PL-4R is a versatile multi-function panel meter tailored for lower voltage applications in industrial and automation systems. This electronic meter accurately measures power, voltage, current, and frequency, making it ideal for process control and electrical monitoring in manufacturing, HVAC, water treatment, and commercial applications.

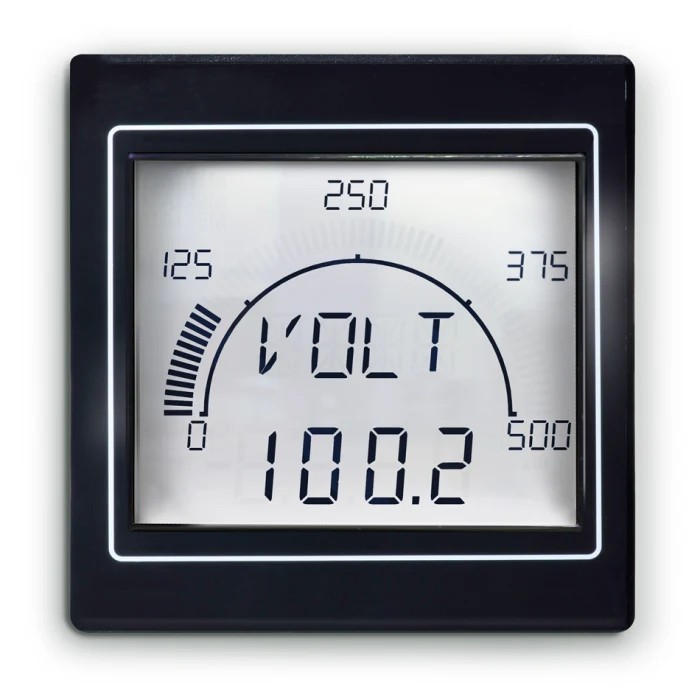

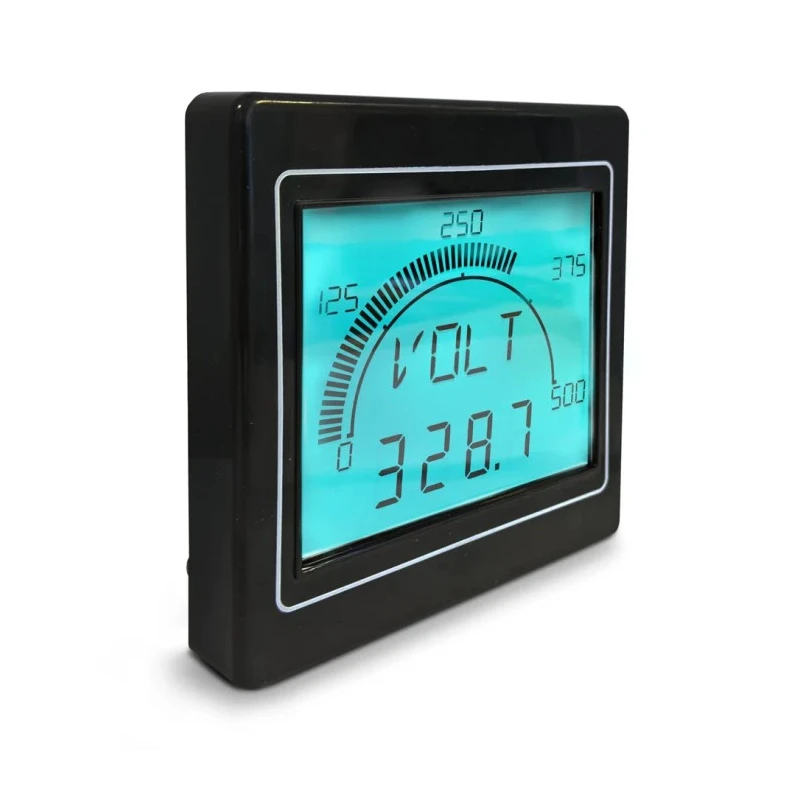

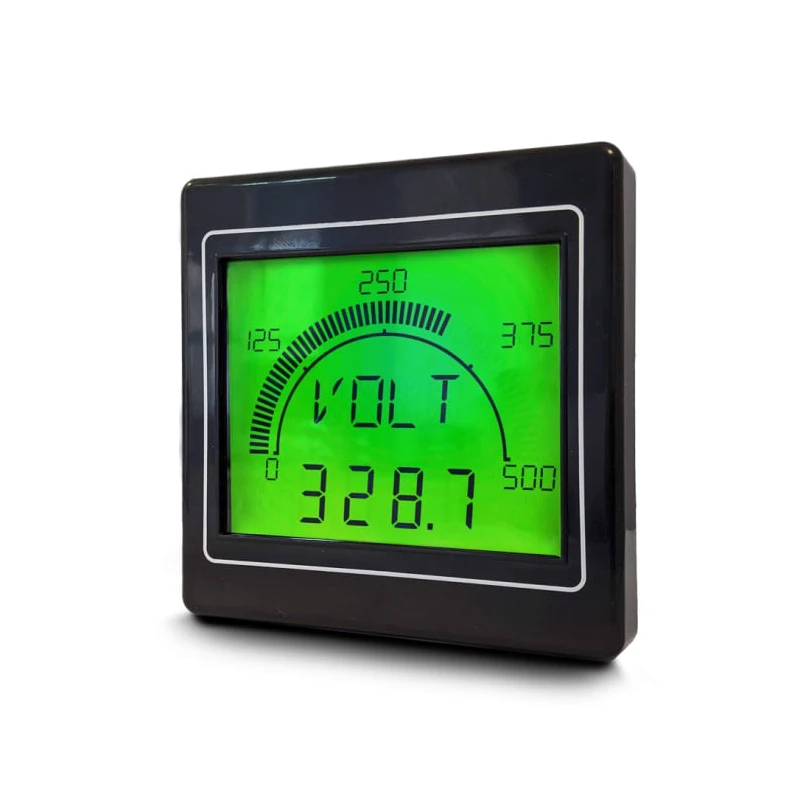

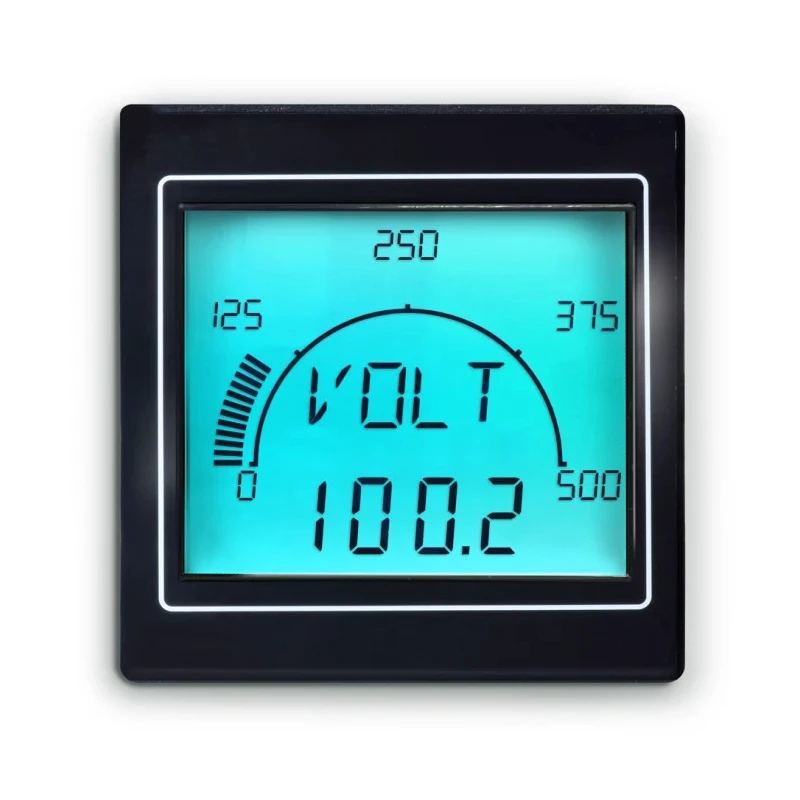

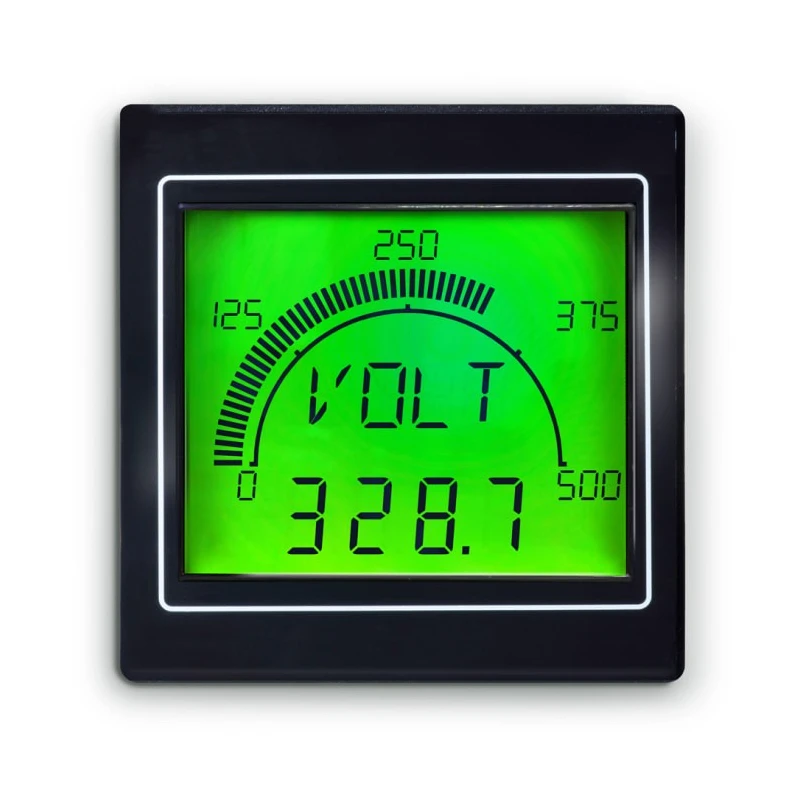

The meter features an advanced LCD display that combines digital precision with an analogue-style 60-segment bar graph, improving instant visibility of measured parameters. The large 81.5mm x 66mm screen includes a separate starburst display area dedicated to messages and alarm information, enhanced by a full-color RGB dynamic backlight for immediate visual alerts in bright environments.
Its configurable functionality allows users to program scaling and ranges, with advanced features including offset, gain adjustments, 20-point non-linearization scaling, and two independent alarm setpoints for flexible monitoring. The meter supports two independent digital open collector outputs along with a 4-20mA analogue output, and it integrates easily with existing control systems via standard Modbus RTU and TCP/IP communication protocols.
The device is designed for panel mounting with a 68mm x 68mm cutout and an overall dimension of 108mm square by 64mm deep. It meets CE, RoHS, and UL standards, and the enclosure rating IP65 shields it against dust and moisture, ensuring reliability in demanding industrial environments.

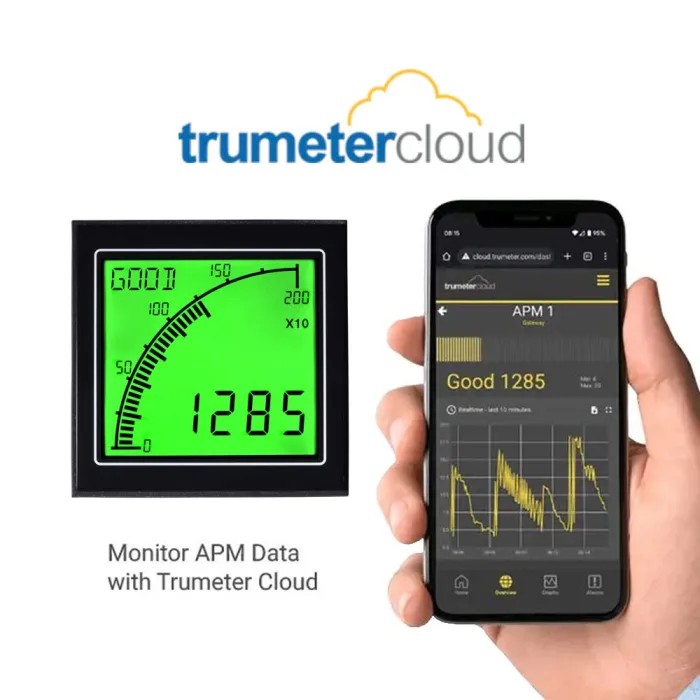

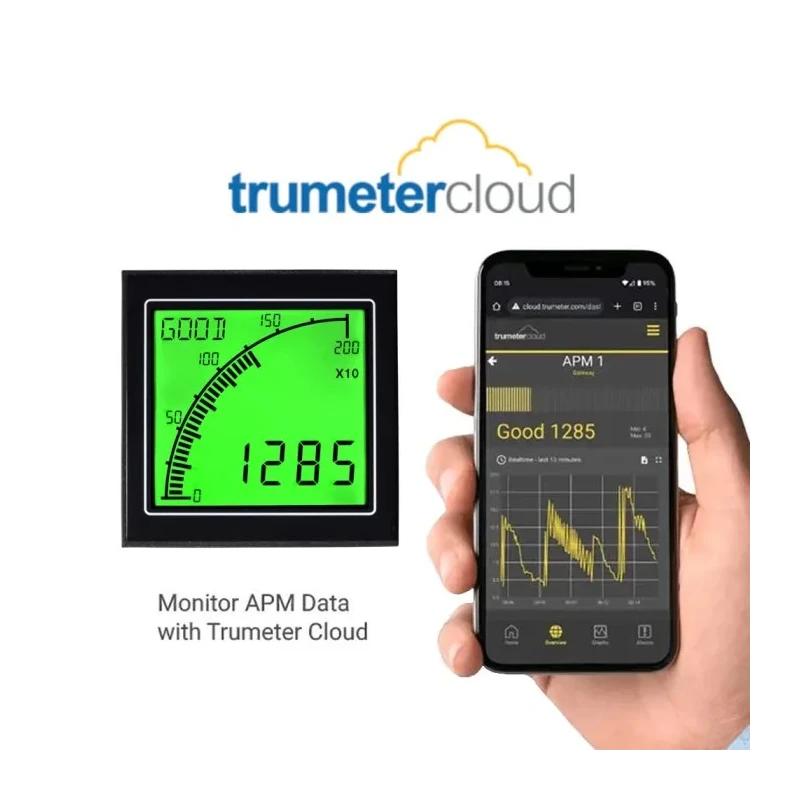

Additional benefits include remote monitoring capability through the Trumeter Cloud platform when paired with the Trumeter IoT Gateway, enabling modern Industry 4.0 connectivity for performance tracking and diagnostics.
Large 4-digit LCD display with 60-segment bar graph improves readability and precision. Configurable scaling, alarms, outputs, and backlight for user customization. Network integration via Modbus RTU/TCP IP supporting industrial communication standards.
Robust IP65 rated enclosure suitable for harsh industrial conditions. Compact installation for 2.7 inch square or 4 inch diameter cutout panels.
Trumeter Multi-Function Panel Meters are trusted solutions for industrial automation applications, electrical monitoring, and process control systems. Explore EnvMart’s extensive selection of industrial measurement instruments for reliable, high-accuracy devices from leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can measure power, voltage, current, and frequency, making it suitable for various industrial and automation applications.
The meter features a large LCD display measuring 81.5mm x 66mm, which includes a 60-segment bar graph for enhanced visibility of measured parameters.
This model requires a cutout of 68mm x 68mm for panel mounting.
The meter operates within a temperature range of -10°C to 60°C.
It includes two independent digital open collector outputs and one analogue output (4-20mA).
The voltage measurement accuracy is 0.5%, while the frequency measurement accuracy is 0.1%.
It supports Modbus RTU and TCP/IP communication protocols for integration into existing control systems.
The enclosure is rated IP65, providing protection against dust and water ingress, suitable for industrial environments.
The overall dimensions are 108mm x 108mm x 64mm.
It meets CE, RoHS, and UL standards, ensuring compliance with safety and environmental regulations.
Yes, the backlight color is programmable, allowing for user customization according to preferences.
The digit height of the display is 14.5mm, enhancing readability.
