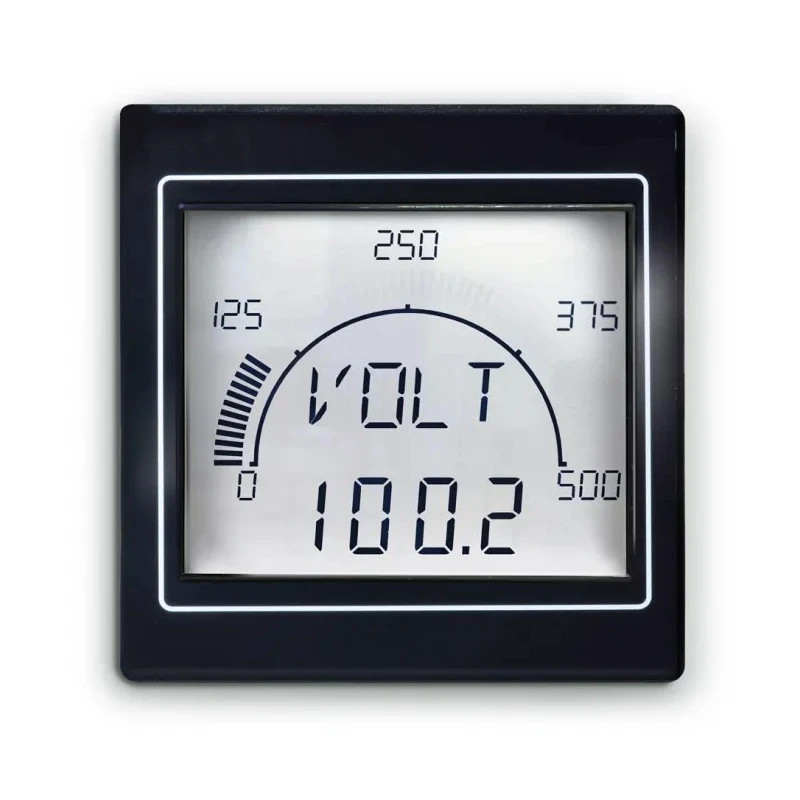

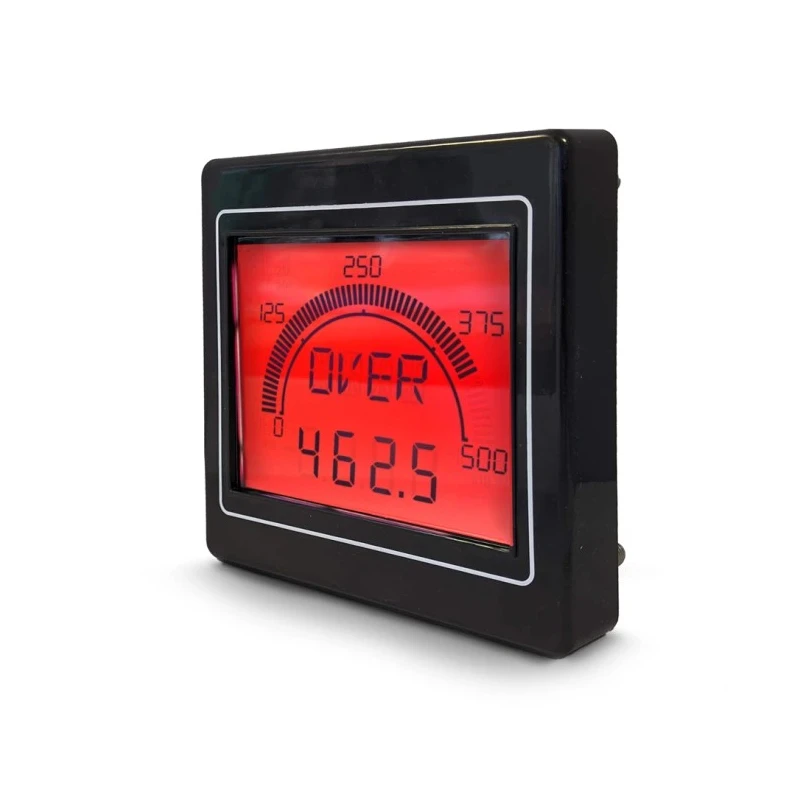

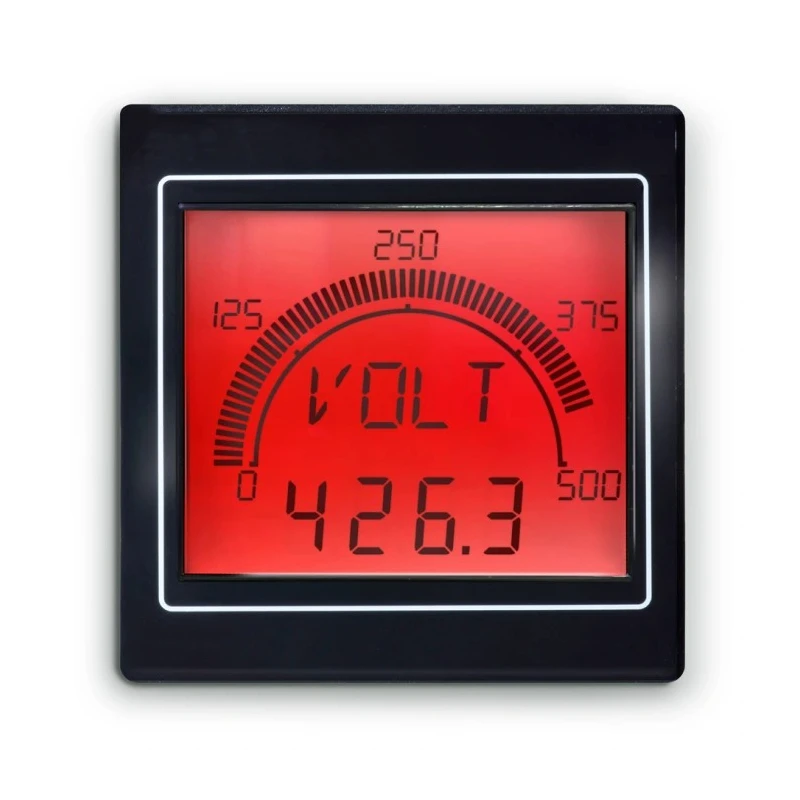

Trumeter Multi-Function Panel Meter for Current, Frequency, Voltage, Power, 68 mm x 68 mm, LCD Display APM-MAX-M23-PL-4B

Free Delivery in India | Lowest Global Shipping Charges

Trumeter Multi-Function Panel Meter for Current, Frequency, Voltage, Power, 68 mm x 68 mm, LCD Display APM-MAX-M23-PL-4B

Name: Trumeter Multi-Function Panel Meter for Current, Frequency, Voltage, Power, 68 mm x 68 mm, LCD Display APM-MAX-M23-PL-4B
Brand: Trumeter
SKU: 295913
Price: 509.72 USD
Availability: InStock



Category Multi-Function Panel Meter Brand Trumeter Condition New

Specifications

Country of Origin	Malaysia
Display Type	LCD
Display	screen
Brand	Trumeter
Model	APM-MAX-M23-PL-4B
Depth	45mm
Series	APM
Maximum Operating Temperature	60°C
Meter Type	Electronic
Number Of Digits	4
Minimum Operating Temperature	-10°C
Digit height	14.5mm
Standards/Approvals	RoHS, CE, UL
Properties Measured	Current, Frequency, Voltage, Power
Cutout Height	68mm
Cutout Width	68mm
2 independent outputs	2 digital (open collector), 1 analogue (4 - 20mA)

Key Features

The meter features a 68 mm x 68 mm cutout size with a large 4-digit LCD display and a 60-segment bar graph.
It has full-colour RGB dynamic backlight for instant alerts and visual clarity in bright environments.
Supports programmable scaling and range adjustments including min, max, offset, gain, and 20-point non-linearization.
Provides two independent alarm set-points and two independent digital outputs along with a 4 - 20mA analogue output.
Includes serial MODBUS TCP/IP and RTU communication protocols for seamless system integration.
Robust build with IP65 rating suitable for industrial use in process control and automation applications.
Operates reliably from -10°C to 60°C and complies with RoHS, CE, and UL standards.

Product Description

Trumeter APM-MAX-M23-PL-4B is a high-precision multi-function panel meter designed for measuring electrical properties including current, frequency, voltage, and power in lower voltage applications. Featuring a 68 mm x 68 mm cutout and depth of 45mm, it provides a large 4-digit LCD display and a 60-segment bar graph for accurate and instant visual assessment.

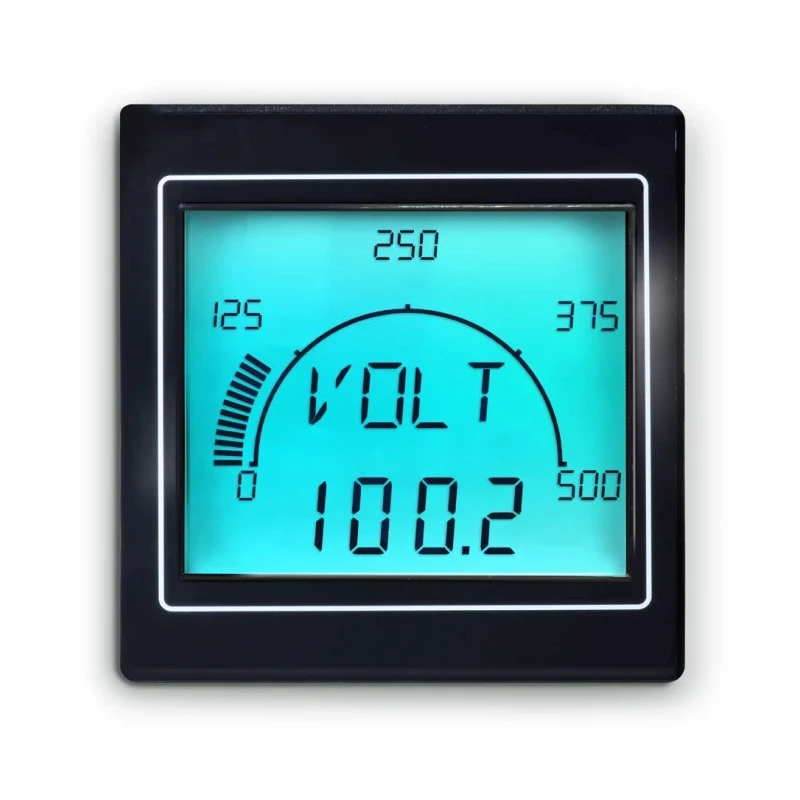

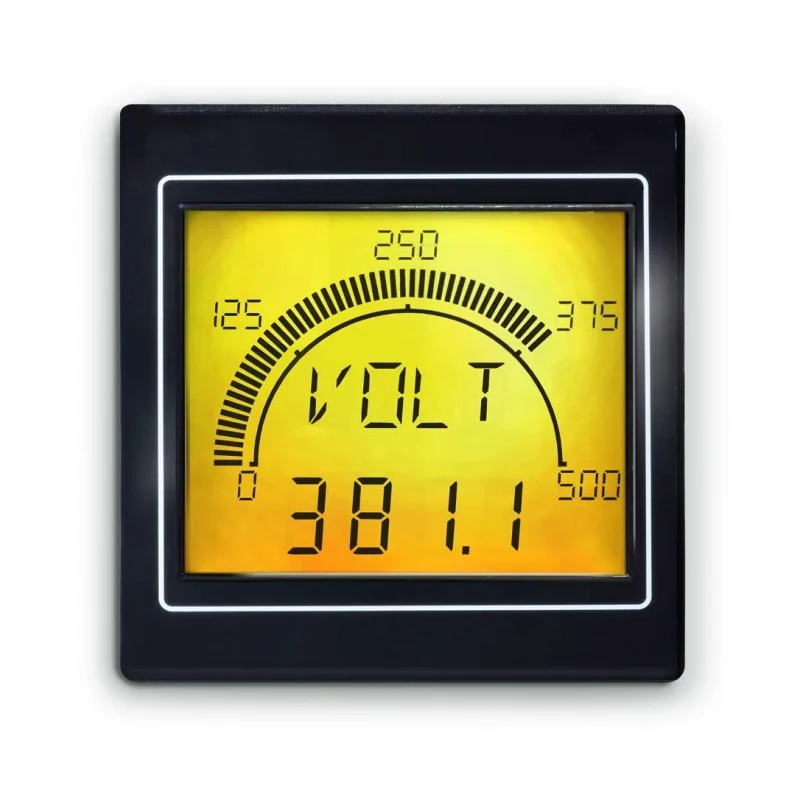

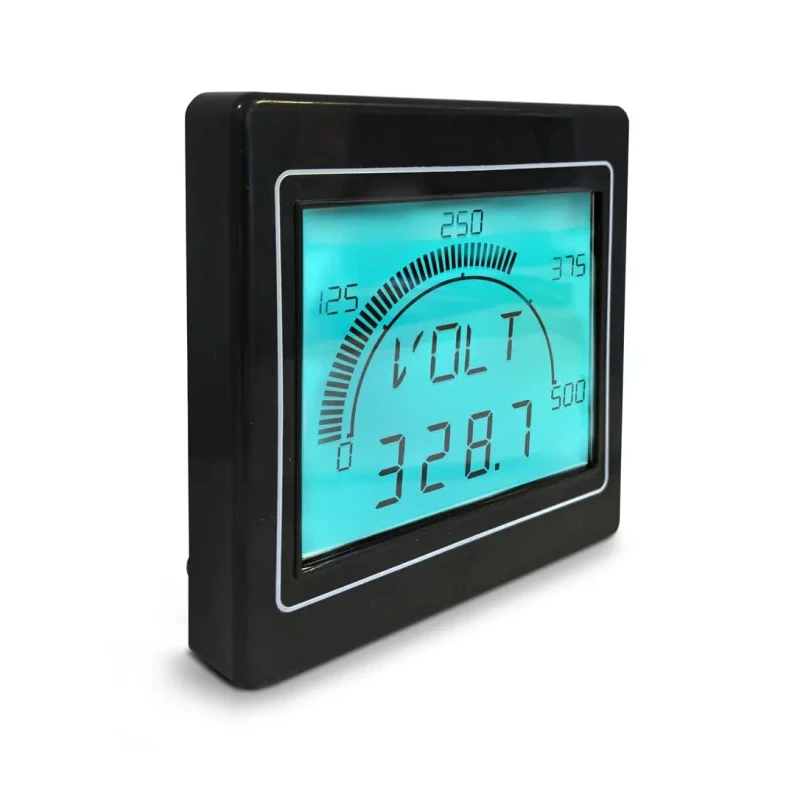

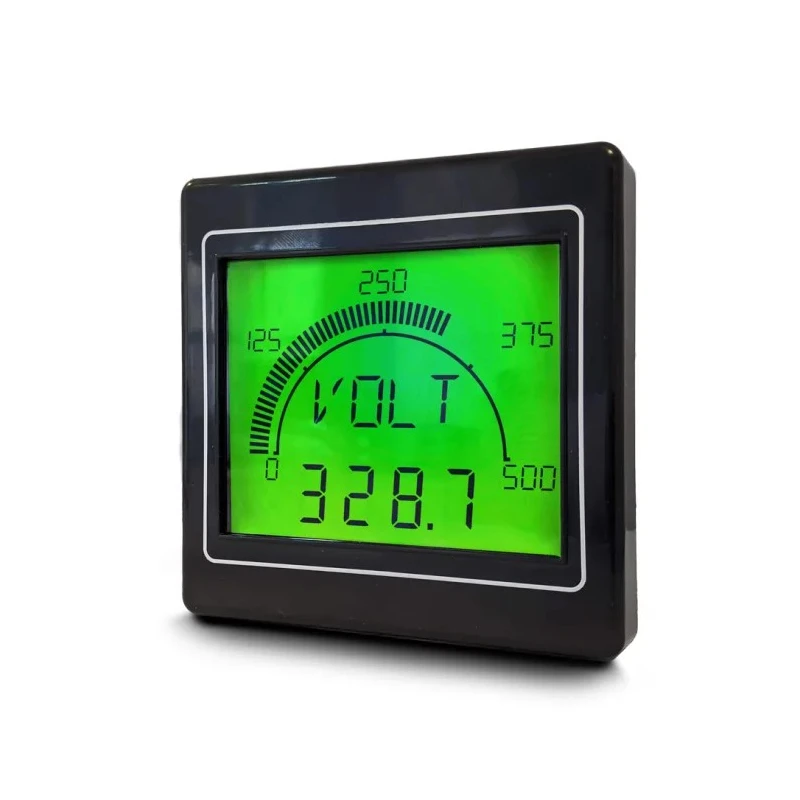

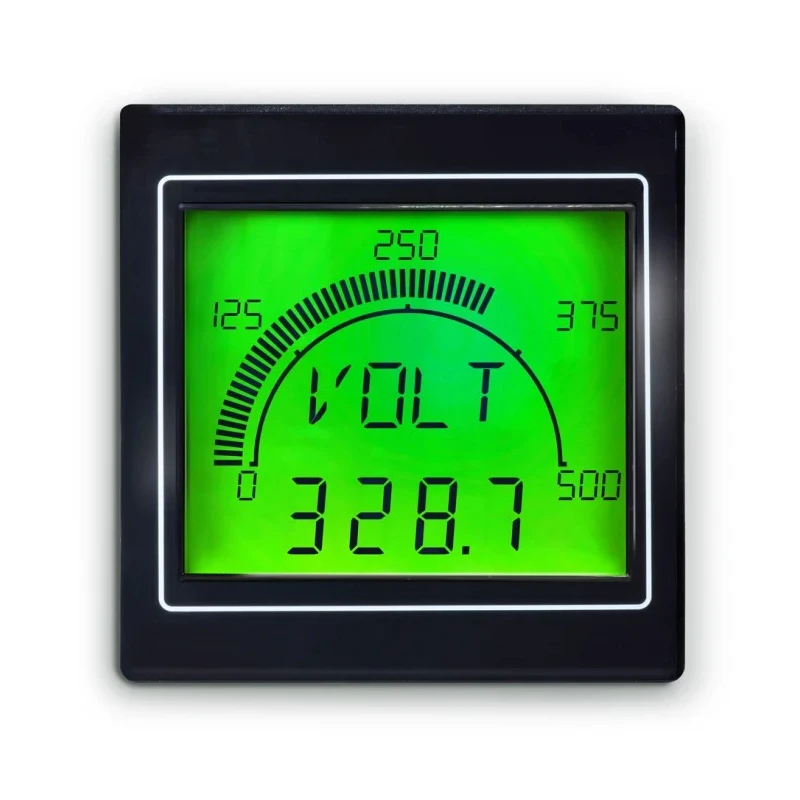

The device incorporates a full-colour RGB dynamic backlight that allows the display color and intensity to be configured for quick alerts and system status indications, making it suitable for industrial environments with bright lighting. The instrument’s display includes a starburst area dedicated to messages and alarm information, enhancing operational awareness.

This electronic panel meter supports extensive programmable scaling and range options such as minimum and maximum limits, offset, gain, and advanced 20-point non-linearization scaling for precise customization. It offers two independent alarm set-points and outputs, including two open collector digital outputs and one 4 - 20mA analogue output, facilitating flexible control and monitoring capabilities.

Communication is enabled through MODBUS RTU and TCP/IP protocols, allowing integration with external control systems and Trumeter’s IoT Gateway for remote monitoring via the Trumeter Cloud.

Built to industrial standards, the meter operates safely in ambient temperatures from -10°C to 60°C and carries RoHS, CE, and UL approvals. Its IP65 rating ensures protection against dust and water ingress, ideal for demanding electrical and process control environments.

The meter is ideal for industrial, manufacturing, HVAC, and process control applications requiring real-time electrical monitoring with configurable alarms and network communication.

Full colour display and extensive output options facilitate versatile integration into automated systems. Explore more professional automation and process control instruments in the Multi-Function Panel Meter category on EnvMart for comprehensive electrical measurement solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Trumeter APM-MAX-M23-PL-4B measures current, frequency, voltage, and power in lower voltage applications. Specific ranges for these measurements are not detailed in the provided specifications.

This panel meter has a cutout size of 68 mm x 68 mm and a depth of 45 mm.

It features a large 4-digit LCD display with a 60-segment bar graph, providing clear visual assessment of measurements.

The meter operates reliably in ambient temperatures ranging from -10°C to 60°C.

It offers two independent digital outputs (open collector) and one analogue output (4 - 20mA).

Communication is facilitated through MODBUS RTU and TCP/IP protocols, allowing for seamless integration with external control systems.

It complies with RoHS, CE, and UL standards, ensuring it meets industrial safety and environmental requirements.

Yes, it features a full-colour RGB dynamic backlight that can be configured for quick alerts and visibility in bright lighting conditions.

This feature allows for advanced customization of the meter's scaling, enabling precise adjustments for specific measurement requirements.

It is suitable for industrial, manufacturing, HVAC, and process control applications that require real-time electrical monitoring.

The meter has an IP65 rating, which indicates it is protected against dust and water ingress, making it suitable for demanding environments.

The digit height of the display is 14.5 mm, enhancing readability from a distance.
