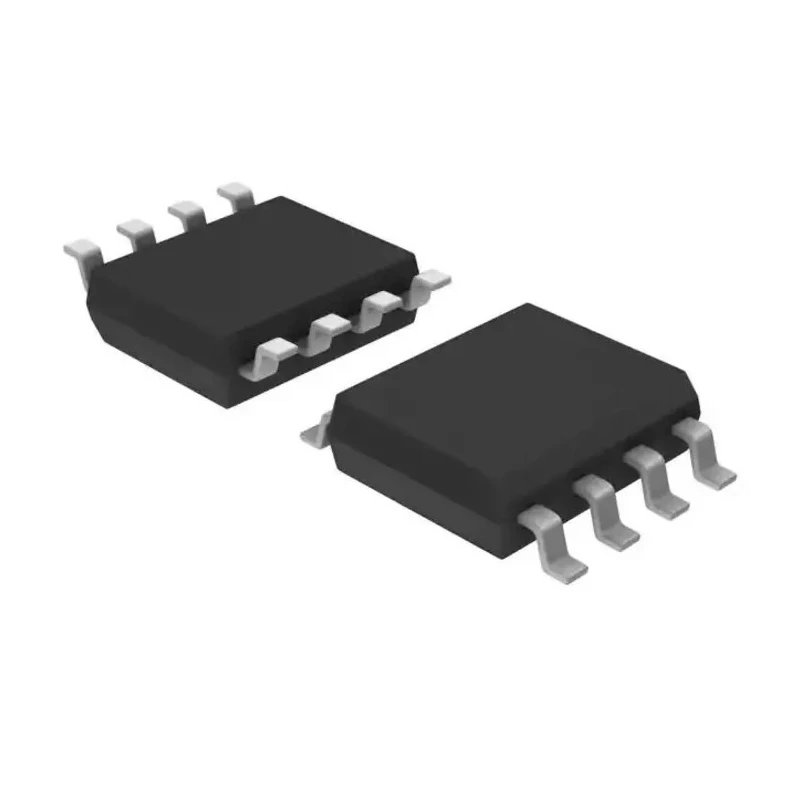

Alliance Memory NOR 2 MB SPI Flash Memory 8-Pin SOIC M45PE20-VMN6P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Alliance Memory |
| Height | 1.25mm |
| Length | 5mm |
| Cell Type | NOR |
| Model | M45PE20-VMN6P |
| Width | 4mm |
| Mount Type | Surface |
| Series | M45PE |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Memory size | 2MB |
| Interface Type | SPI |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.7V |
| Maximum Clock Frequency | 75MHz |
| Organisation | 256K x 8 |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 8ns |
Key Features
- High-speed SPI-compatible bus with a maximum clock frequency of 75 MHz.
- 2 Mbit (256K x 8) NOR-type serial paged flash memory.
- Supports page write instructions for writing 1 to 256 bytes sequentially.
- Operates on a single supply voltage from 2.7 V to 3.6 V.
- Wide temperature range from -40°C to 85°C for industrial applications.
- Surface mount type with compact SOIC package measuring 5 mm by 4 mm by 1.25 mm.
- Maximum random access time of 8 ns ensuring fast memory access.
- Ideal for embedded system memory and industrial control applications.
Product Description
Alliance Memory M45PE20-VMN6P is a 2 Mbit (256K x 8) serial paged NOR Flash Memory with high-speed SPI interface housed in an 8-Pin SOIC package. It features a maximum clock rate of 75 MHz and operates on a single supply voltage range of 2.7 to 3.6 volts, making it suitable for low power embedded systems.
This device supports page write instructions that allow writing 1 to 256 bytes per cycle, combining integrated erase and program operations to enhance write efficiency. The compact surface-mounted SOIC package measures 5 mm length, 4 mm width, and 1.25 mm height, ideal for space-constrained designs.
The flash memory offers robust industrial reliability with an operating temperature range from -40°C to 85°C and a maximum random access time of just 8 nanoseconds, suitable for demanding applications such as embedded controls, consumer electronics, and automotive systems (non-automotive standard).
Manufactured to Alliance Memory's stringent quality standards, this NOR flash memory is designed to store firmware code or system data reliably in various industrial and commercial electronics. Its serial SPI interface ensures easy integration with modern microcontrollers and processors.
Key technical features include 8-pin SOIC packaging, SPI compatibility, NOR cell type memory, 2 MB capacity, and surface mount assembly. The device does not carry specific automotive standards but meets general semiconductor requirements.
High-speed SPI-compatible bus with 75 MHz maximum clock frequency. 2 Mbit NOR flash memory organized as 256K x 8 bits. Page write capability for efficient programmed data updates. Voltage operation from 2.7V to 3.6V single supply.
Wide industrial operating temperature range of -40°C to 85°C. Compact 8-pin SOIC package with dimensions 5 x 4 x 1.25 mm. Fast access with 8 ns maximum random access time.
This product is ideal for industrial, embedded, and general electronics use, providing reliable non-volatile storage. Browse more semiconductor Flash Memory options in EnvMart’s extensive electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The M45PE20-VMN6P has a memory capacity of 2 Mbit, organized as 256K x 8 bits.
This model supports a maximum clock frequency of 75 MHz.
It operates on a single supply voltage ranging from 2.7 V to 3.6 V.
The maximum random access time is 8 nanoseconds.
The compact SOIC package measures 5 mm in length, 4 mm in width, and 1.25 mm in height.
This model uses NOR-type memory cells.
It operates within a temperature range of -40°C to 85°C, suitable for industrial applications.
It features a high-speed SPI-compatible interface.
It supports page write instructions for writing 1 to 256 bytes sequentially.
This flash memory is designed for surface mount assembly.
This model has 8 pins.
It is suitable for embedded system memory and industrial control applications.
