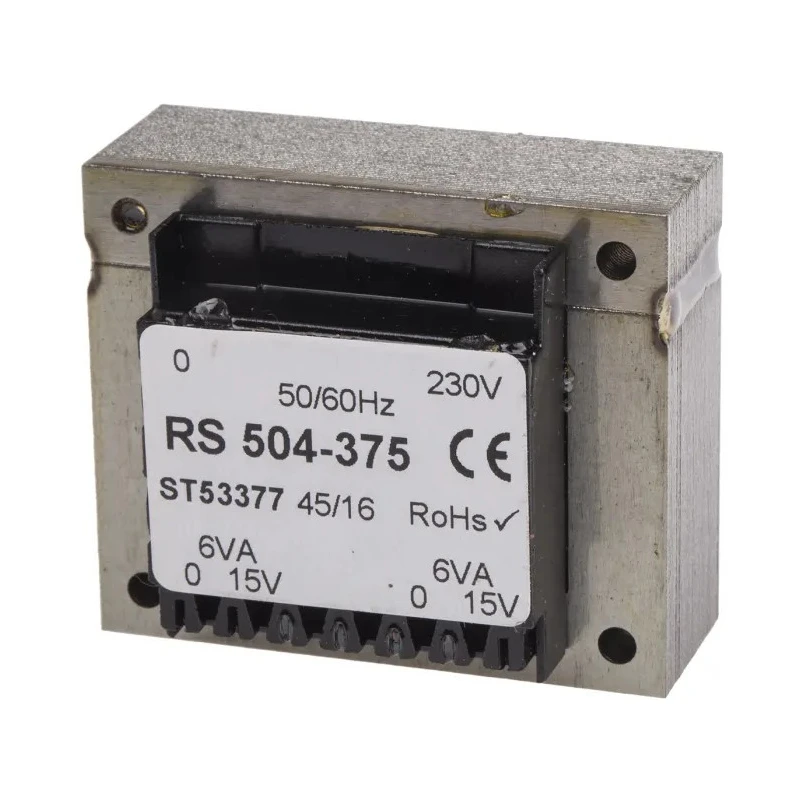

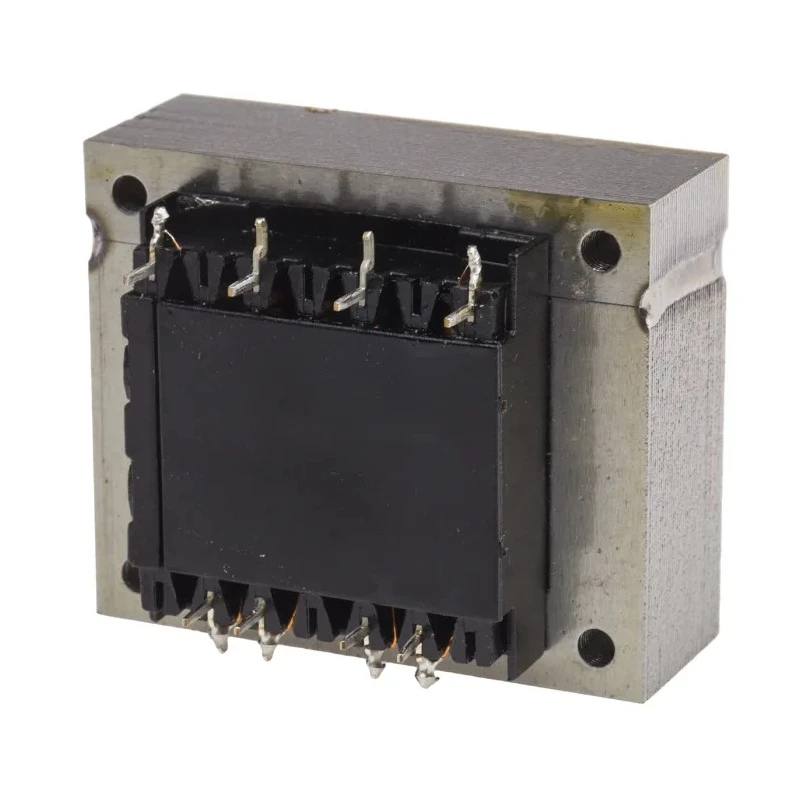

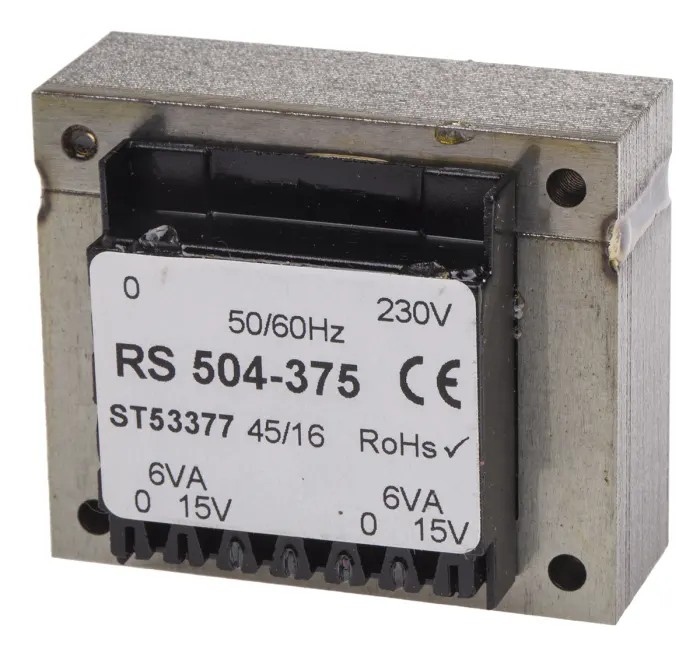

RS PRO PCB Transformer 5 to 24 V AC 2 Output Through Hole, 230 V AC Primary, 12 VA Power, 54x45x30.41 mm 504-375

RS PRO 504-375 PCB Transformer delivers a secondary voltage range from 5 to 24 V AC with 2 output windings, suitable for diverse electronic applications requiring stepped-down voltage. It operates on a 230 V AC primary voltage and is designed with a through hole mount type for secure fixing to printed circuit boards.

This transformer has a compact size measuring 54 mm in length, 45 mm in width, and 30.41 mm in depth, optimizing device footprint on PCB assemblies. It provides a power rating of 12 VA, with an efficiency of 82%, enabling efficient energy conversion while minimizing losses.

The maximum operating temperature rating is 130°C, allowing it to function reliably in warm environments. Its frequency operation spans 50 to 60 Hz, making it adaptable to various power systems globally. The transformer features fully shrouded bobbins with extra pins for secure mounting and full varnish impregnation for electrical insulation and durability.

Engineered to meet international standards such as CE, ASNZS 61558.1, ASNZS 61558.6, RoHS compliance, and IECBSEN 61558 series certifications, it ensures safety, quality, and environmental friendliness. Electrical testing and flash tests confirm its reliability according to BS3535 and EN 60742 standards.

This PCB Transformer is an ideal component for manufacturers and engineers working on power supplies, electronic device assemblies, instrumentation, and control systems in industrial, laboratory, and commercial contexts.

Secondary voltage range between 5 to 24 V AC supports versatile usage. Primary voltage rating is 230 V AC suitable for standard mains supply. Provides 2 independent output windings for flexible electrical configurations.

Compact dimensions optimize PCB space. High efficiency ensures energy saving during operation. Can operate safely up to 130°C ambient temperature. Frequency operation compatible with global power grids. Robust through hole mounting Secures PCB installation.

Compliance with CE, ASNZS, RoHS, and IECBSEN standards guarantees quality. Durable construction with varnish impregnation and shrouded bobbins. Explore more RS PRO transformers and PCB components on EnvMart for reliable power supply solutions.
