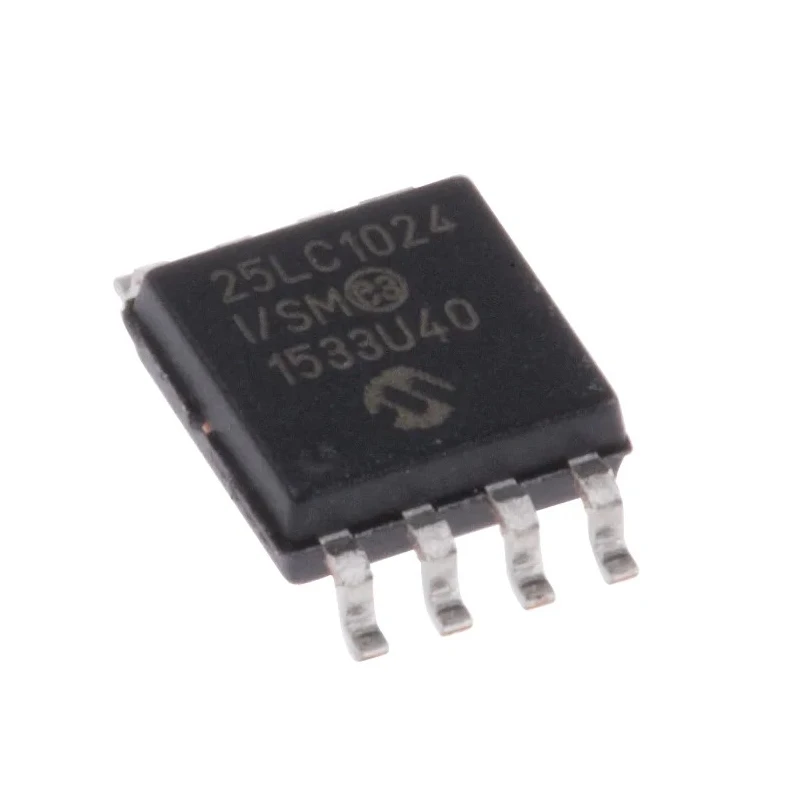

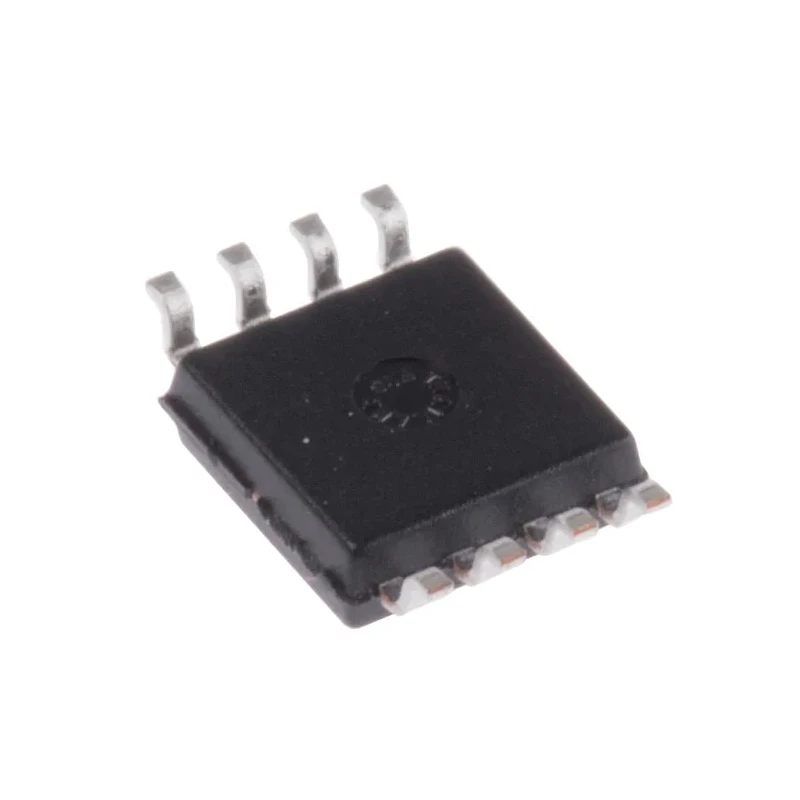

Microchip 1 MB Serial EEPROM 50 ns 8-Pin SOIJ Serial-SPI 25LC1024-I/SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Length | 5.26mm |
| Model | 25LC1024-I/SM |
| Width | 7.94mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIJ |
| Minimum Operating Temperature | -40°C |
| Memory size | 1MB |
| Interface Type | Serial-SPI |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 10mA |
| Maximum Clock Frequency | 20MHz |
| Organisation | 128K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 50ns |
| Number of Words | 128k |
| Microchip 25AA1024-I/SM, 1 MB Serial EEPROM, 250 ns 8-Pin SOIJ Serial-SPIBrand | Microchip |
Key Features
- The EEPROM memory size is 1 MB organized as 128K x 8 bits.
- Maximum clock frequency of 20 MHz enables fast data transfer.
- Designed for surface mount applications with an 8-pin SOIJ package.
- Operates reliably across a temperature range from -40°C to 85°C.
- Supply current is 10 mA ensuring efficient power consumption.
- Conforms to AEC-Q100 automotive standard for enhanced reliability.
- Data retention capability extends up to 200 years.
Product Description
Microchip 25LC1024-I/SM is a high-performance 1 MB Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for demanding semiconductor applications. Featuring an 8-pin Small Outline Integrated J-lead (SOIJ) package and a Serial Peripheral Interface (SPI), it offers robust surface mount compatibility and efficient SPI communication protocols.
This EEPROM is engineered for industrial, automotive, and electronics manufacturing environments requiring reliable memory storage solutions operating between -40°C and 85°C. The device supports a maximum clock frequency of 20 MHz, facilitating rapid data access with a maximum random access time of just 50 ns. Operating voltage ranges from 2.5 V to 5.5 V, suitable for various power supply systems.
With a memory organization of 128K x 8 bits, the chip ensures extensive data storage capability totaling 1 MB. It draws a modest supply current of 10 mA, balancing performance with power efficiency, and complies with AEC-Q100 automotive quality standards, ensuring long-term operational reliability. The data retention period is rated at 200 years, making it ideal for long-use applications.
The compact dimensions of length 5.26 mm and width 7.94 mm allow for easy integration into tightly constrained circuit board layouts. This Serial SPI EEPROM is widely adopted in applications such as embedded systems, control units, automotive electronics, industrial controllers, and consumer electronics where durable memory solutions are essential.
The EEPROM memory size is 1 MB organized as 128K x 8 bits. Maximum clock frequency of 20 MHz enables fast data transfer. Designed for surface mount applications with an 8-pin SOIJ package. Operates reliably across a temperature range from -40°C to 85°C.
Supply current is 10 mA ensuring efficient power consumption. Conforms to AEC-Q100 automotive standard for enhanced reliability. Data retention capability extends up to 200 years. Compact dimensions: length 5.26 mm and width 7.94 mm.
This Microchip Serial EEPROM fulfills requirements in the electronics and automotive industries, supporting efficient production and reliable memory storage. Explore more semiconductor memory chips and EEPROM products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EEPROM has a memory size of 1 MB, organized as 128K x 8 bits.
It supports a maximum clock frequency of 20 MHz, enabling fast data transfer.
This model operates reliably across a temperature range from -40°C to 85°C.
The supply current is 10 mA, ensuring efficient power consumption.
It uses a Serial Peripheral Interface (SPI) for communication.
The dimensions are 5.26 mm in length and 7.94 mm in width.
The maximum random access time is 50 ns, facilitating quick data access.
It conforms to the AEC-Q100 automotive standard for enhanced reliability.
The operating voltage ranges from 2.5 V to 5.5 V.
It is designed for surface mount applications with an 8-pin SOIJ package.
