Cynergy3 SPST PCB Reed Switch 100 mA 24 V AC/DC, Rhodium Contacts, 0.6ms Operating Time

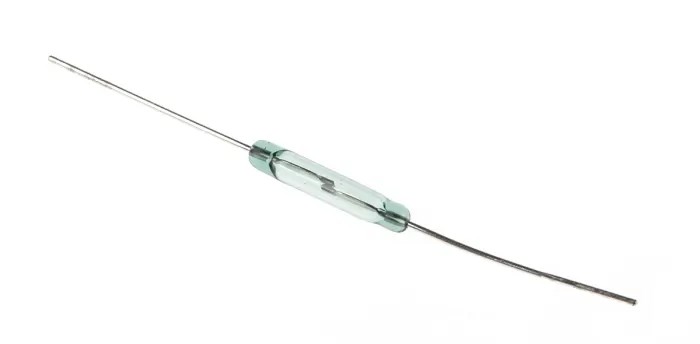

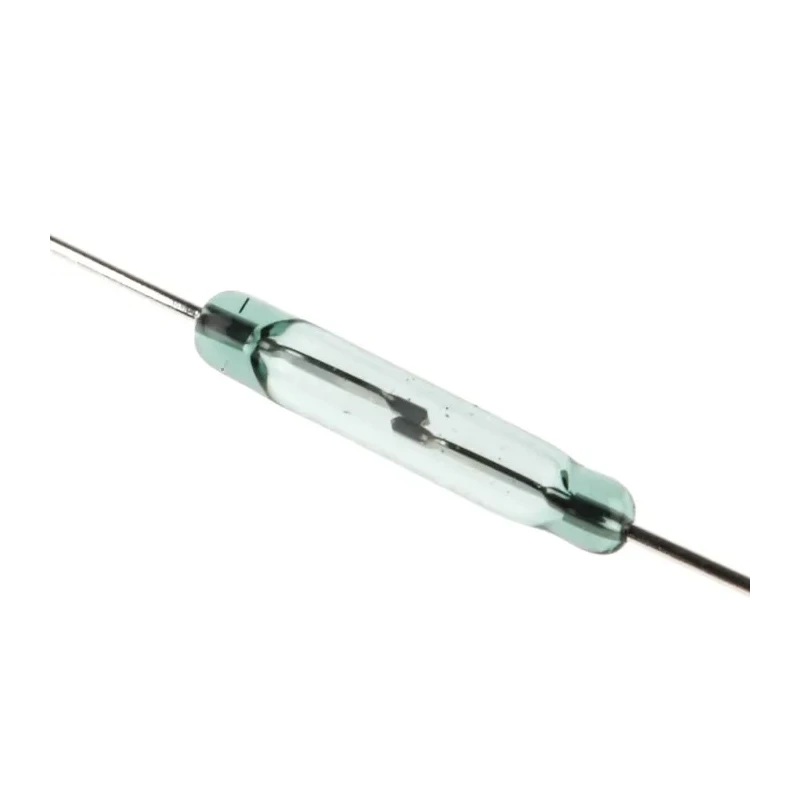

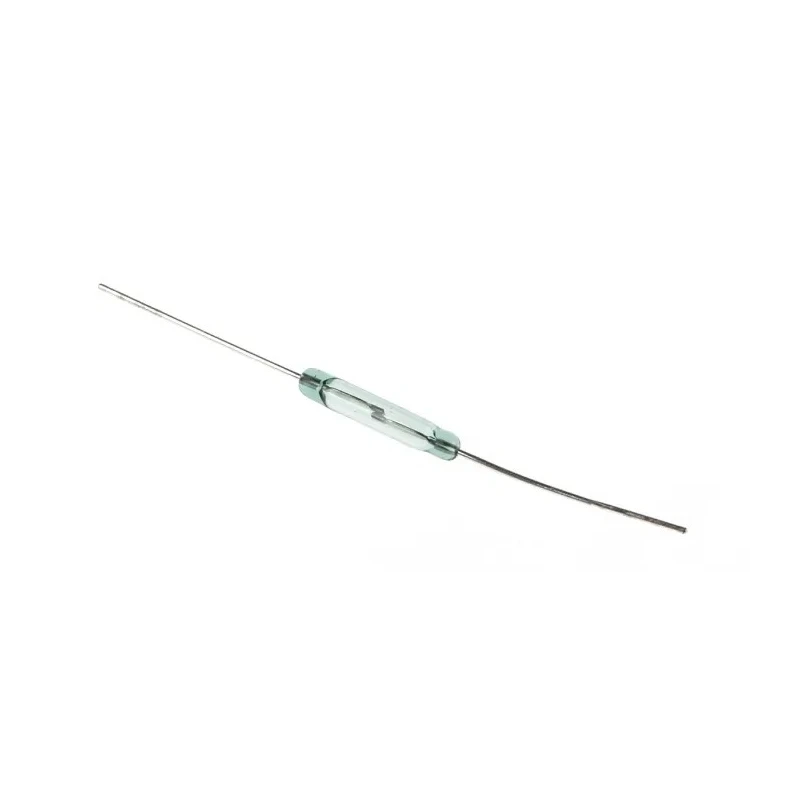

Cynergy3 TRA211G/15-20 SPST PCB Reed Switch 100 mA 24 V AC/DC is a precision electrical switch engineered for controlling current flow in low-power electronic circuits. Featuring rhodium contact material, it offers excellent signal integrity and reliability for industrial and commercial applications.

This reed switch has a SPST (Single Pole Single Throw) contact configuration, making it ideal for simple on/off control within printed circuit board assemblies. Its maximum switching current rating of 100 mA and voltage tolerance of 24 volts AC/DC suit it for various automation, sensing, and control systems.

This component is hermetically sealed, ensuring that it does not spark during actuation, which enhances safety and longevity when used in demanding environments. It operates over a wide temperature range from -40 degrees Celsius to +150 degrees Celsius, making it suitable for harsh environmental conditions.

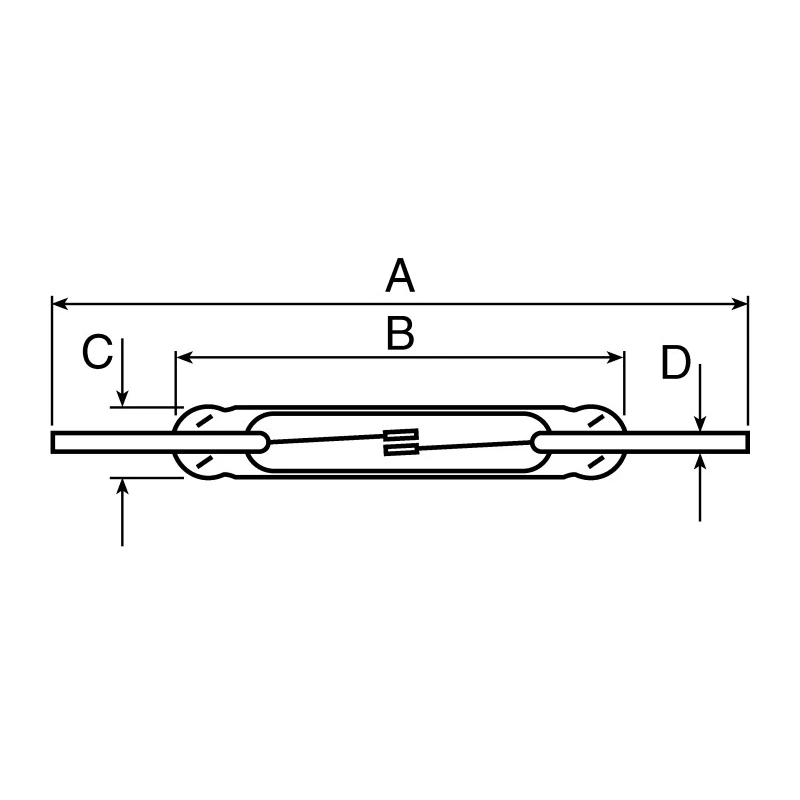

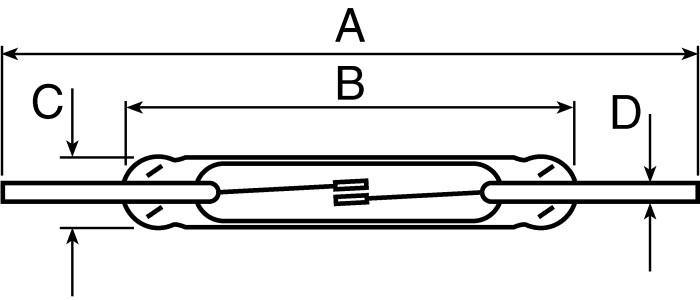

Measuring 55mm in length and 2.6mm in width and depth, this switch fits well with DIP components and is commonly utilized in proximity sensors and automatic door systems. The fast operating time including bounce of 0.6 milliseconds facilitates swift response in dynamic industrial control applications.

The wire terminal design allows secure and straightforward PCB mounting, supporting robust connectivity in design and manufacturing workflows. SPST contact configuration for simple on/off switching. Rhodium contact material reduces signal loss and enhances durability.

Maximum switching current of 100 mA suits low-power applications. Voltage rating of 24 V AC/DC for versatile circuit integration. Wide operating temperature range from -40°C to 150°C ensures environmental resilience. Compact dimensions allow use in DIP and proximity sensor components.

Hermetically sealed to prevent sparking and wear. Fast operating time including bounce of 0.6 ms for rapid switching actions. Wire terminal type facilitates PCB mounting and secure connections.

This Reed Switch is widely used in electrical automation, industrial control equipment, proximity sensing, and electronics manufacturing for reliable switching performance. Its durable construction and precise specifications meet the demanding standards of modern industrial and laboratory environments.
