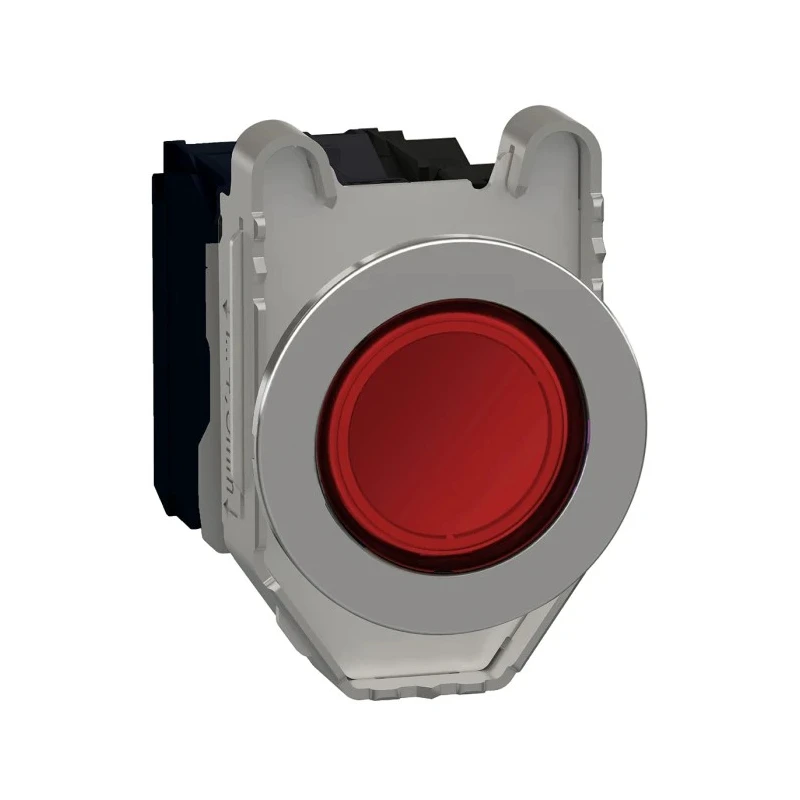

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout XB4FW34G5

Schneider Electric XB4FW34G5 Harmony XB4 Series Illuminated Push Button Switch is designed for panel mounting with a 30 mm cutout. Featuring a spring return mechanism and SPDT contact configuration, this push button switch includes a red LED for illumination, providing clear operational indication. Its flush mount design combines aesthetics and ergonomics suitable for demanding industrial environments.

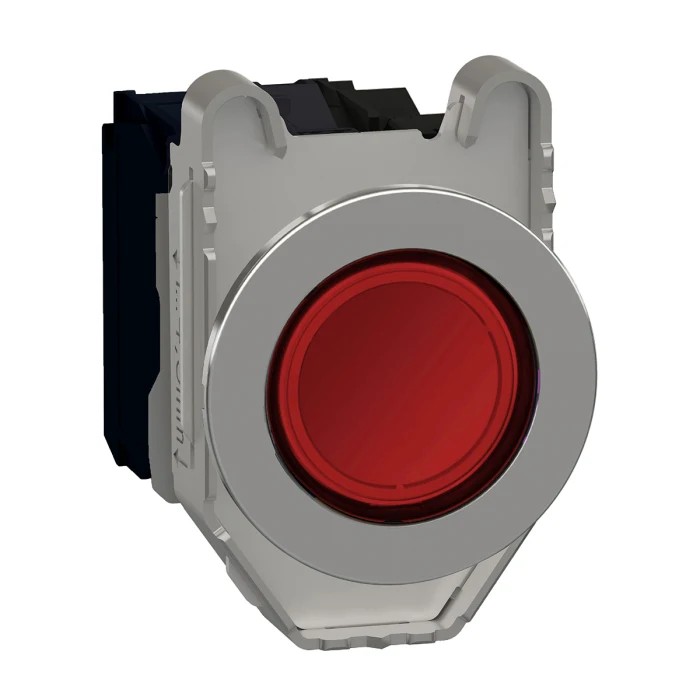

Operating voltage is rated at 120 V AC with a switch contact current of 6 A, making it suitable for a wide range of electrical applications. The actuator is round with a red color, surrounded by a chromium-plated bezel and a zamak fixing collar, enhancing durability and appearance.

The device functions reliably within temperatures ranging from -40°C to 70°C and offers robust protection rated at IP66, IP67, IP69, and IP69K, ensuring resistance to dust, water ingress, and mechanical impacts (IK06). This makes it ideal for industries such as food and beverage, automotive manufacturing, outdoor mining, water treatment, building, and infrastructure.

Certified by multiple standards including EN/IEC 60947 series, UL 508, CSA C22.2, CE marking, CCC, EAC, JIS, and marine certifications, this push button switch meets stringent global safety and performance requirements.

The product offers versatile connectivity options with screw clamp terminals, connectors, Faston connectors, spring terminals, and printed circuit board mounting. A broad range of contact blocks and accessories such as metal circular blanking plugs, metal rings, spacers, protective washers, and flush mounting kits are available separately to allow panel customization and ease of installation.

The packaging includes one push button switch unit. Installation is straightforward with cross head screwdrivers. The product’s design counters vibration effects via secure contacts and heads, enhancing mounting reliability and wiring security.

Schneider Electric’s Harmony XB4 Series Push Button Switches are engineered to deliver performance, durability, and safety in diverse industrial applications. Browse EnvMart’s extensive range of high-quality electrical switches and components for automation and control solutions.

Flush mounted design with ergonomic and aesthetic appeal. Red actuator colour with round actuator style and chromium-plated bezel. Rated for 120 V AC supply voltage and a switch contact current of 6 A. Operates reliably between -40°C to 70°C with high vibration resistance.

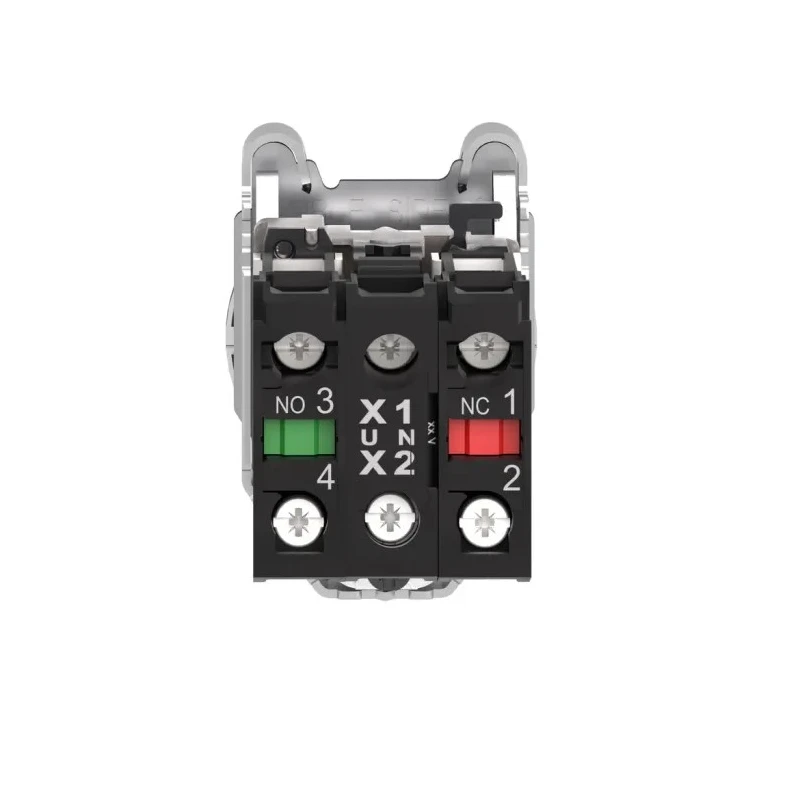

Contact configuration is 1 NO/1 NC with screw clamp terminals for secure wiring. Suitable for industrial applications including food and beverage, automotive, outdoor mining, and water treatment. Protection rated to IP66, IP67, IP69, and IP69K: resistant to dust, water, and high impact.

Certified to EN/IEC, CE mark, UL, CSA, CCC, EAC, JIS, and marine approvals. Comes with various connection options and a range of accessories for panel customization. Compact dimensions: height 47 mm, width 36.6 mm, length 55 mm with a weight of 132 grams.
