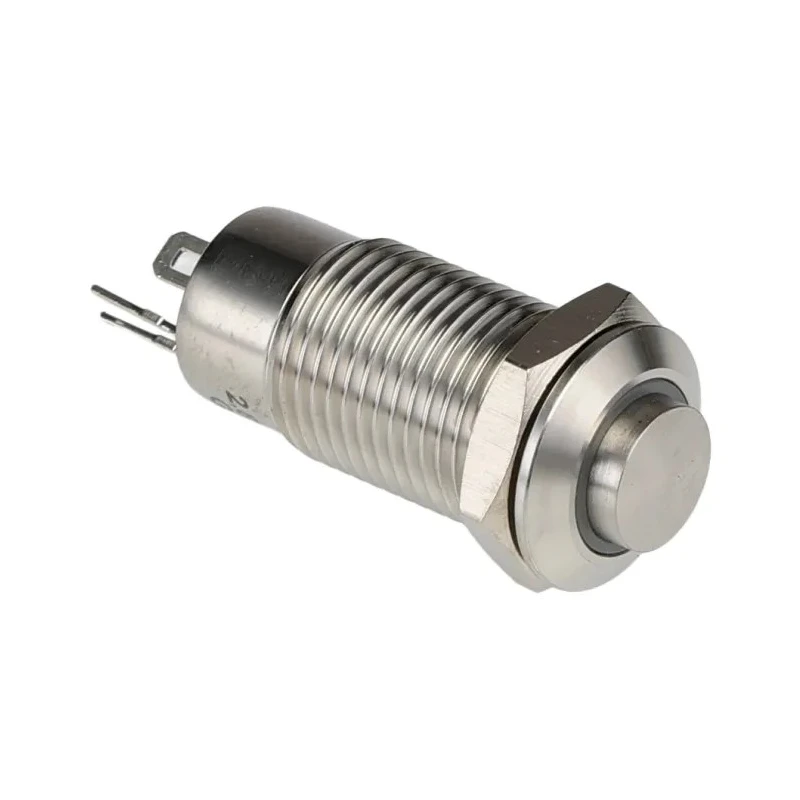

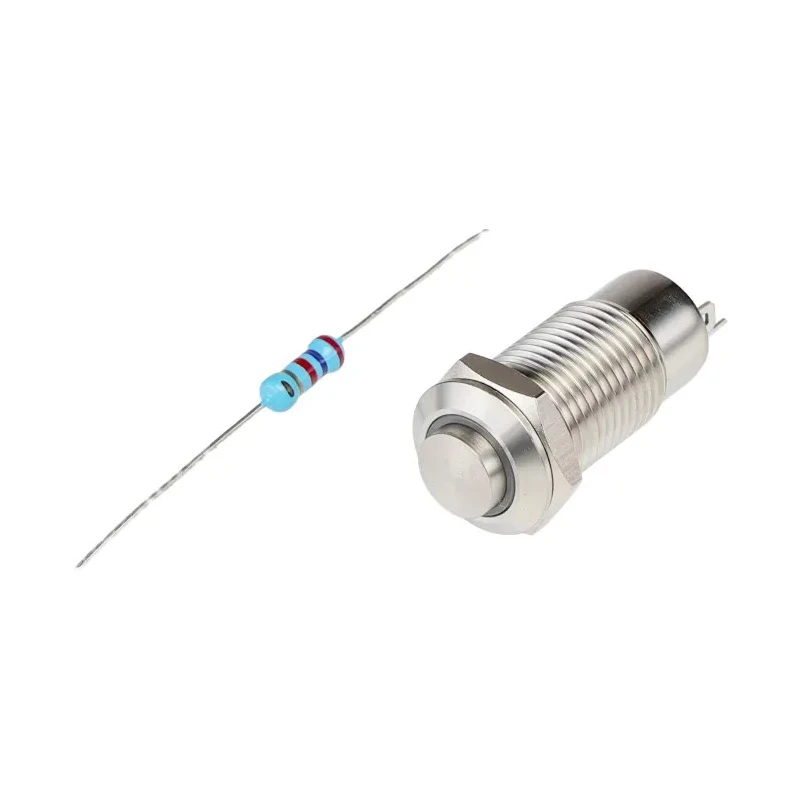

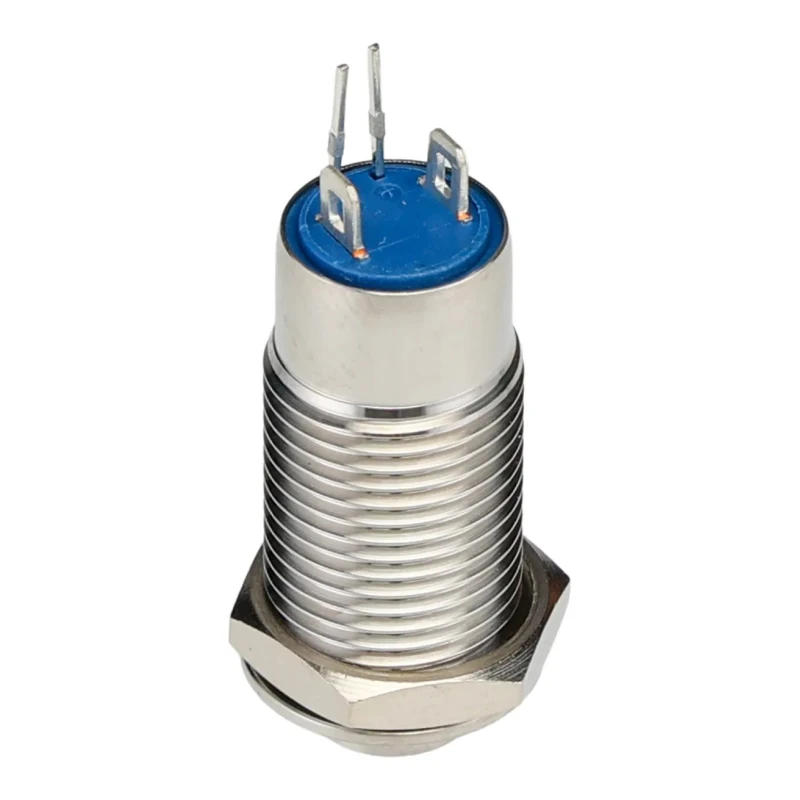

RS PRO Illuminated Latching Push Button Switch 36V DC, SPST, Panel Mount, 12 mm Cutout, Green LED, IP40 111-6516

Name: RS PRO Illuminated Latching Push Button Switch 36V DC, SPST, Panel Mount, 12 mm Cutout, Green LED, IP40 111-6516
Brand: RS PRO
SKU: 88081
Price: 1163.42 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	111-6516
IP Rating	IP40
Mount Type	Panel
Series	1116516
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Switch Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	12 mm
Terminal type	Quick Connect
Standards/Approvals	RoHS
LED Colour	Green
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	36V dc
Actuator Style	Round
Switch Contact Current	1A

Key Features

Illuminated green LED push button switch suitable for panel mount.
Latching operation with single pole single throw (SPST) contact configuration.
Designed for 12 mm cutout size and quick connect terminals.
Rated for 36V DC contact voltage and 1A contact current.
IP40 rated enclosure for basic dust protection.
Silver actuator with round, raised style.
Operating temperature range from -20°C to 55°C.
Applicable in control panels, security interfaces, and industrial equipment.

Product Description

The RS PRO 111-6516 series illuminated latching push button switch is engineered for reliable panel mount installation in industrial control, automation, and commercial interface systems. Combining a green LED indicator with a robust SPST contact configuration, this switch enables clear visual feedback and secure switching action. Its latching function means the switch maintains its state until manually reset, supporting critical control circuit requirements.

The device accepts a 12 mm panel cutout and utilizes quick connect terminals for streamlined installation. The round actuator, finished in silver, features a raised design for tactile engagement. IP40 ingress protection offers basic dust resistance, suitable for indoor environments and protected electronic enclosures.

Performance parameters include a maximum contact voltage of 36V DC and a 1A current rating, supporting low voltage control systems. The switch operates effectively within a wide temperature range of -20°C to 55°C and meets RoHS standards for environmental compliance. The green LED illumination enhances user awareness, especially in signal indication and interface panels.

This push button switch is commonly used across security keypads, signal-controlled equipment, vending machines, ticketing interfaces, and transport applications. The latching operation is valuable for toggling circuits, pressing-to-activate, or switching functions in industrial panels or commercial systems.

Additional technical highlights include a durable construction, reliable contact material, and compatibility with panel mount hardware. Engineering teams specify this device when clarity, durability and safety matter in push-button interfaces.

Illuminated green LED push button switch suitable for panel mount. Latching operation with single pole single throw (SPST) contact configuration. Designed for 12 mm cutout size and quick connect terminals. Rated for 36V DC contact voltage and 1A contact current.

IP40 rated enclosure for basic dust protection. Silver actuator with round, raised style. Operating temperature range from -20°C to 55°C. Applicable in control panels, security interfaces, and industrial equipment. Explore more RS PRO Push Button Switches and control solutions in EnvMart's category for industrial automation and panel accessories.
