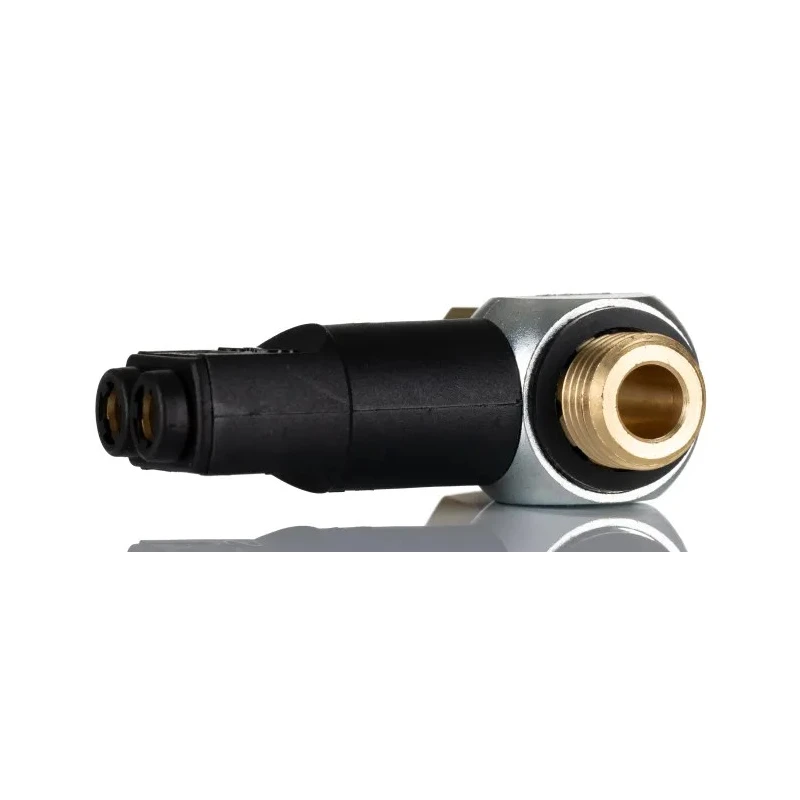

Legris Pressure Decay Sensor Polymer Material, 8 bar Maximum Operating Pressure, 6 bar Breaking Pressure, Female 7818 04 13

Legris 7818 04 13 Pressure Decay Sensor is a high-quality pneumatic sensor designed for industrial fluid power applications. Made from robust polymer material, this sensor ensures long-lasting operation with resistance to corrosion and wear.

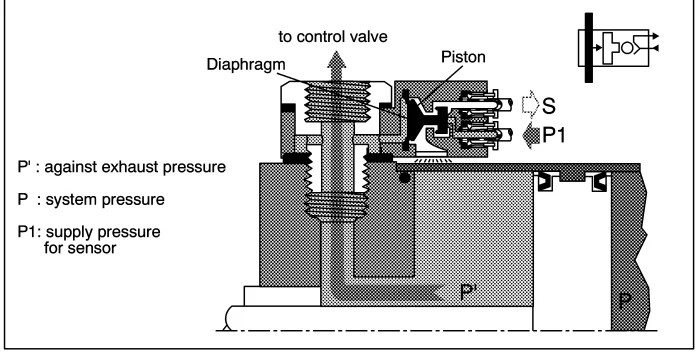

It operates at a maximum pressure of 8 bar with a breaking pressure of 6 bar, providing reliable detection of the pneumatic cylinder's end-of-stroke by sensing the exhaust back pressure.

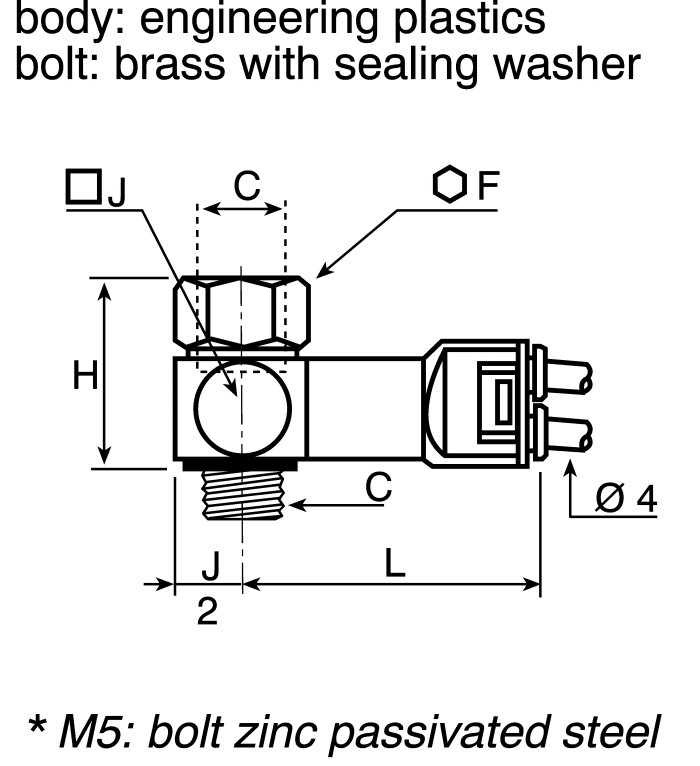

The sensor includes a female inlet port with a 1/4 inch connection size and a 4 mm outlet tube, facilitating easy integration into existing pneumatic systems. Its wide operating temperature window of -15°C to 60°C makes it adaptable for diverse industrial environments.

With a rapid response time of just 3 milliseconds, it guarantees fast and accurate pneumatic signals, essential for optimizing machine performance and control.

The device complies with ELV, WEEE, and RoHS standards, ensuring environmental safety and regulatory adherence. Its soft start and pressure decay features allow gradual pressure increase on air line restart, protecting system components from shock caused by immediate full pressure application.

Manufactured in France, this sensor embodies superior engineering quality and is used extensively in mechanical, pneumatic, and automation industries for precise pressure monitoring and control.

Constructed from durable polymer material ensuring lightweight and corrosion resistance. Operates with a maximum pressure of 8 bar and breaking pressure at 6 bar for reliable performance. Features a female inlet port with 1/4 inch connection size and a 4 mm outlet tube.

Wide operating temperature range from -15°C to 60°C suitable for various industrial environments. Extremely fast response time of 3 milliseconds for precise pneumatic control. Meets ELV, WEEE, and RoHS standards confirming environmental compliance.

Soft start and pressure decay functionalities optimize air line pressurisation and prevent mechanical shocks. Manufactured in France with high quality engineering and robust design.

Ideal for industrial and manufacturing sectors including pneumatic automation, fluid power tools, equipment monitoring, and safety systems. EnvMart offers this Legris pressure decay sensor as a reliable choice for enhancing pneumatic system accuracy.
