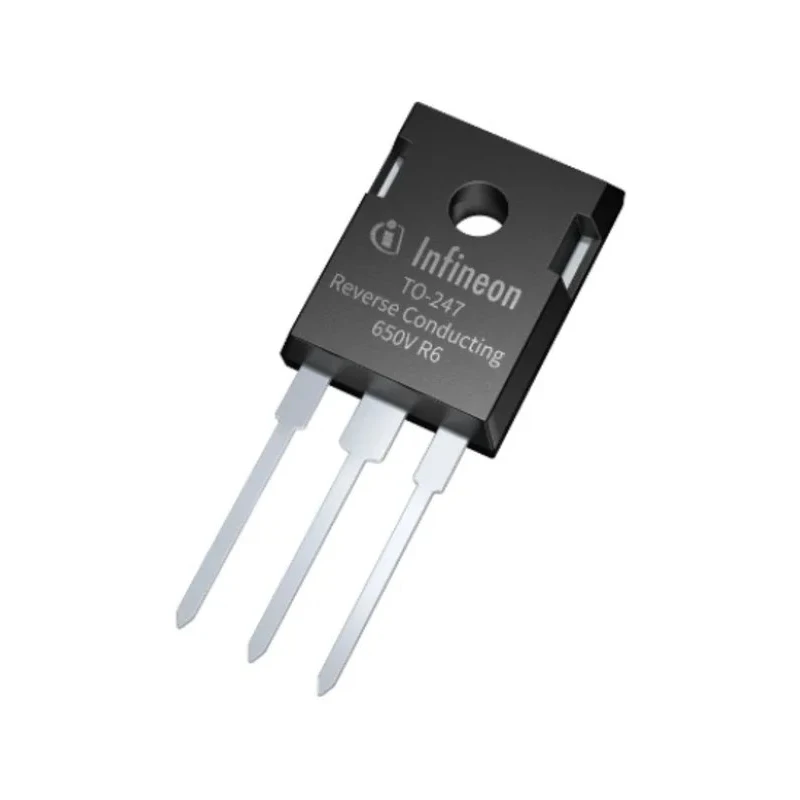

Infineon N-Channel IGBT 83 A 650 V, 3-Pin PG-TO-247 Surface Mount TrenchStop Series IHW40N65R6XKSA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon N-Channel IGBT 83 A 650 V, 3-Pin PG-TO-247 Surface Mount TrenchStop Series IHW40N65R6XKSA1

Name: Infineon N-Channel IGBT 83 A 650 V, 3-Pin PG-TO-247 Surface Mount TrenchStop Series IHW40N65R6XKSA1
Brand: Infineon
SKU: 293364
Price: 2.46 USD
Availability: InStock



Category IGBT Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	5.3mm
Length	16.3mm
Model	IHW40N65R6XKSA1
Width	21.5mm
Mount Type	Surface
Series	TrenchStop
Maximum Operating Temperature	175°C
Package Type	PG-TO-247
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Continuous Collector Current Ic	83A
Maximum Collector Emitter Voltage Vceo	650V
Maximum Collector Emitter Saturation Voltage VceSAT	1.6V
Channel Type	N
Maximum Power Dissipation Pd	210W
Maximum Gate Emitter Voltage VGEO	20 V

Key Features

This IGBT supports a maximum continuous collector current of 83 A.
It has a maximum collector emitter voltage rating of 650 V.
The device features a maximum power dissipation of 210 W.
The package type is PG-TO-247 suitable for surface mounting.
Maximum gate emitter voltage is rated at 20 V for reliable operation.
Maximum collector emitter saturation voltage is 1.6 V ensuring efficient conduction.
Operating temperature ranges from -40°C to a maximum of 175°C.
The TrenchStop series technology provides low EMI and tight parameter distribution.

Product Description

Infineon IHW40N65R6XKSA1 is an N-Channel Insulated Gate Bipolar Transistor (IGBT) rated for 83 A collector current and 650 V collector emitter voltage, housed in a 3-Pin PG-TO-247 surface mount package. This TrenchStop series component is engineered for robust performance in demanding applications such as industrial induction heating systems utilizing half-bridge resonant topologies.

The device boasts a maximum power dissipation of 210 W and features a maximum gate emitter voltage of 20 V. It offers low electromagnetic interference (EMI) thanks to its TrenchStop technology and provides a very tight parameter distribution for consistency in circuit design.

Operating temperature ranges from -40°C up to 175°C, making it suitable for harsh industrial and commercial environments. The physical dimensions of 16.3 mm length, 21.5 mm width, and 5.3 mm height facilitate integration in compact PCB layouts.

This IGBT is surface mountable, enhancing ease of assembly and reliability. It does not conform to Automotive Standards but meets RoHS compliance for environmental safety. This IGBT supports a maximum continuous collector current of 83 A.

Maximum collector emitter voltage rating of 650 V enables use in moderate voltage applications. High power dissipation capability of 210 W suits high-load scenarios. Compact PG-TO-247 package optimized for surface mounting.

Maximum gate emitter voltage of 20 V ensures operational safety margin. Low collector emitter saturation voltage of 1.6 V reduces conduction losses. Wide temperature operating range from -40°C to 175°C for reliability. TrenchStop series provides low EMI and consistent performance.

Dimensions are optimal for PCB space-constrained designs. Applications include industrial and laboratory power electronics, manufacturing equipment, and HVAC systems.

Discover the complete range of Infineon semiconductor components and enhance your industrial power circuit designs with high-quality, dependable IGBTs. Explore EnvMart’s extensive catalog for advanced electronic components engineered to meet modern industrial requirements.
