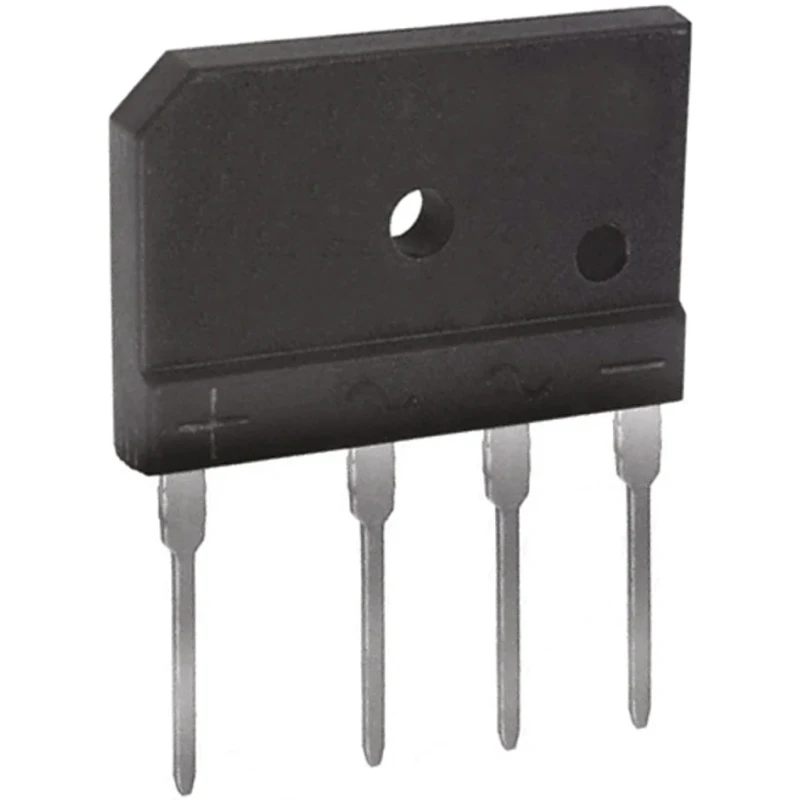

DiodesZetex Bridge Rectifier 1000 V 170 A 4-Pin Through Hole GBJ Package GBJ1010-F

DiodesZetex GBJ1010-F Bridge Rectifier is a high-performance component designed to convert alternating current (AC) to direct current (DC) efficiently. Rated at a peak reverse repetitive voltage of 1000 V and capable of handling a peak non-repetitive forward surge current of 170 A, this bridge rectifier is suitable for demanding electronic and industrial applications.

Constructed with a glass passivated die, the GBJ1010-F ensures enhanced reliability and low reverse leakage current, contributing to reduced power loss in circuits. Its compact form factor (30.3 mm length, 20.3 mm height, and 4.8 mm width) and 4-pin GBJ through-hole package design allow easy mounting on PCBs, providing stability and durability in various setups.

The device operates effectively over a temperature range from -65°C to 150°C, making it suitable for harsh environments, including industrial and power supply applications. With a maximum forward current of 10 A and a peak forward voltage of 1.05 V, it provides efficient conduction with minimal voltage drop.

This single-phase bridge rectifier also features a high case dielectric strength of 2500 VRMS, ensuring robust insulation and operational safety. Its design facilitates use in applications requiring reliable rectification with low electrical noise and high surge capacity.

Designed for efficient AC to DC conversion in electronic circuits. Supports maximum forward current of 10 A for reliable performance. Operates within a temperature range of -65°C to 150°C for versatile applications. Compact dimensions: 30.3 mm length, 20.3 mm height, and 4.8 mm width.

Features glass passivated die construction for enhanced durability. Ensures low reverse leakage current of 500 μA, minimizing power loss. Peak forward voltage is 1.05 V, optimizing energy efficiency. Designed for SIL PCB mounting with a single-phase configuration.

High dielectric strength of 2500 VRMS for robust insulation. Ideal for use in industrial, power supply, and electronic applications.

This Bridge Rectifier is an excellent choice for use in industrial equipment, power supplies, and general electronic assemblies, where reliable and efficient rectification is required. DiodesZetex's GBJ1010-F combines robust electrical characteristics with a compact design to meet demanding engineering specifications.
