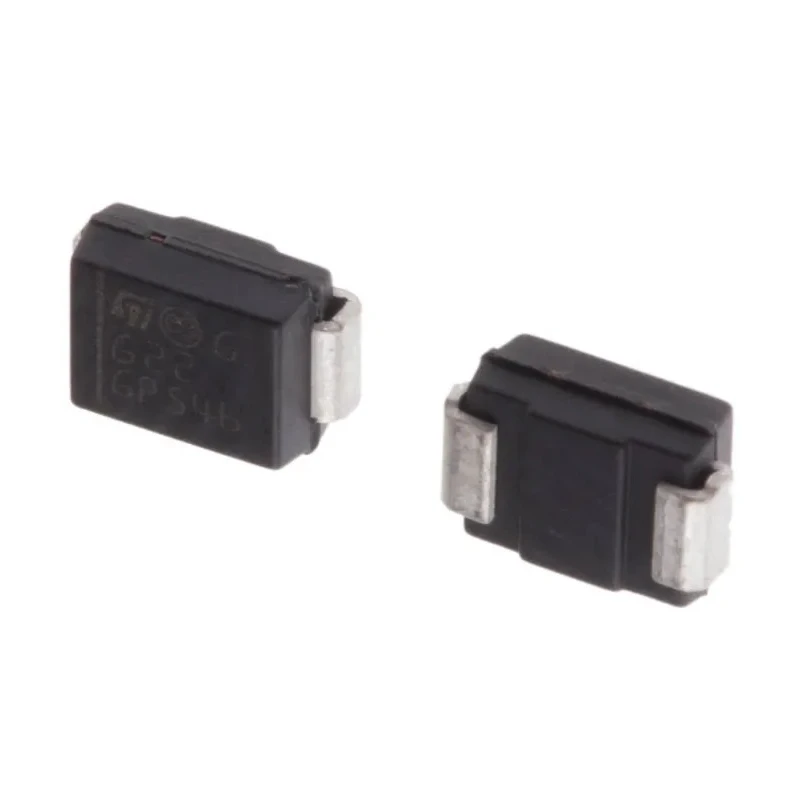

STMicroelectronics 200 V 10 A Schottky Diode Surface Mount DO-214AA 2-Pin STPS2200U
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS2200U |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STPS2200 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.58V |
Key Features
- Features a 2-pin DO-214AA package suitable for surface mounting.
- Maximum forward voltage of 0.58 V ensures efficient conduction.
- Designed for operating temperatures between -40°C and 175°C.
- Peak non-repetitive forward surge current up to 100 A.
- Compact dimensions with 4.6 mm length, 3.95 mm width, and 2.45 mm height.
- Low peak reverse current of 2.5 mA for minimal leakage.
- Single diode configuration optimized for power and rectifier applications.
- Qualified for use in various industrial and electronic equipment requiring Schottky barrier diodes.
Product Description
STMicroelectronics STPS2200U is a high-performance 200 V, 10 A Schottky barrier diode designed in a compact 2-pin DO-214AA surface mount package. It offers excellent forward voltage and rapid switching suitable for power conversion, voltage clamping, and rectification tasks in electronic circuits.
The device operates reliably over a temperature range of -40°C to 175°C, supporting high surge currents up to 100 A, which makes it ideal for demanding industrial, automotive, and power supply applications. Its low forward voltage drop of 0.58 V improves efficiency by reducing power dissipation in high current paths.
With minimal peak reverse current of 2.5 mA, this diode maintains low leakage currents, enhancing circuit reliability. The single diode configuration and surface mount design facilitate easy PCB integration for automated manufacturing processes.
Typical applications include switching power supplies, freewheeling diodes in motors, solar charge controllers, and electronic load protection. The dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height provide a small footprint suitable for compact electronics.
Features a 2-pin DO-214AA surface mount package. Maximum continuous forward current: 10 A. Peak reverse repetitive voltage rating: 200 V. Forward voltage drop: 0.58 V at rated current. Operating temperature range: -40°C to 175°C.
High surge forward current capability of 100 A. Low leakage current for efficient operation. Single diode electrical configuration.
This Schottky diode from STMicroelectronics complies with industry standards, ensuring durable and consistent performance in industrial, laboratory, manufacturing, and commercial electronic systems. It is a reliable component choice for enhancing power efficiency and circuit stability.
Explore more semiconductor and diode components by STMicroelectronics on EnvMart for diverse electronic design requirements.
Explore more products in our Semiconductor Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the STPS2200U is 0.58 V at the rated current.
The peak reverse repetitive voltage rating for this model is 200 V.
The maximum continuous forward current for this diode is 10 A.
The dimensions of the STPS2200U are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
This Schottky diode operates within a temperature range of -40°C to 175°C.
The peak non-repetitive forward surge current capability of this model is up to 100 A.
The STPS2200U uses a 2-pin DO-214AA surface mount package.
The peak reverse current for the STPS2200U is 2.5 mA.
The STPS2200U has a single diode configuration.
This diode is suitable for applications such as switching power supplies, freewheeling diodes in motors, solar charge controllers, and electronic load protection.
The rectifier type of the STPS2200U is Schottky.
The STPS2200U is manufactured in India.
