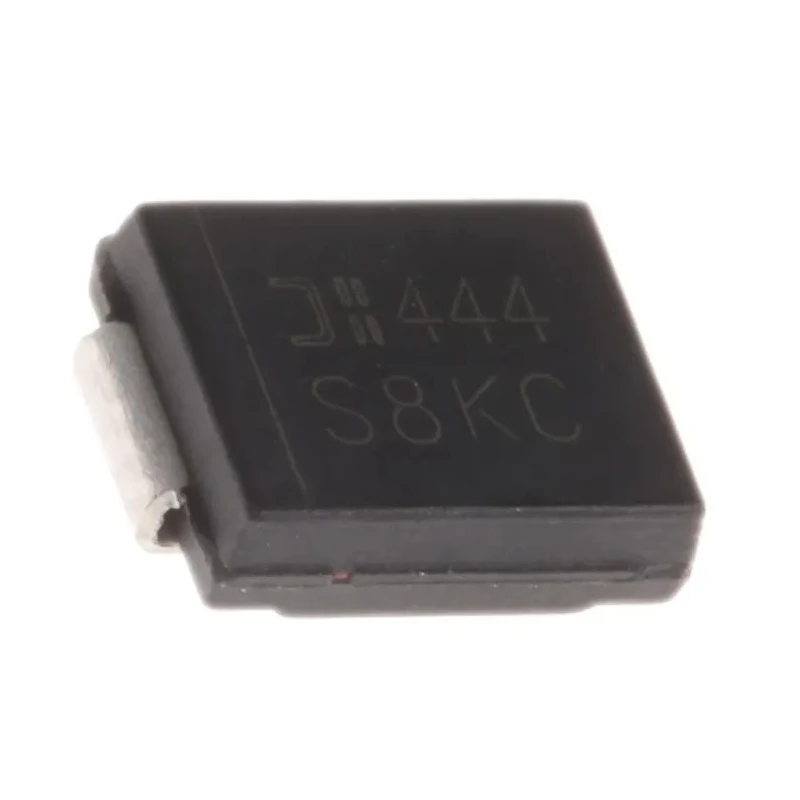

DiodesZetex General Purpose 800 V 8 A Diode 2-Pin Surface Mount DO-214AB S8KC-13

DiodesZetex S8KC-13 is a general purpose rectifier diode with a peak repetitive reverse voltage rating of 800 V and a continuous forward current rating of 8 A. Packaged in a DO-214AB (SMC) 2-pin surface mount configuration, it is ideal for efficient rectification in electronic and power applications.

This diode features a low maximum forward voltage of 985 mV, minimizing power loss during conduction. It supports high surge currents up to 200 A, allowing it to withstand transient current spikes common in industrial and power supply environments.

Engineered to operate over a wide temperature range from -65°C to 150°C, it is suitable for use in demanding industrial, manufacturing, and commercial electronics applications. The compact physical size, with dimensions 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, enables space-saving designs on printed circuit boards requiring surface mount technology.

The diode exhibits a peak reverse recovery time of 2700 ns, allowing proper switching performance in power electronic circuits and reducing switching losses. Its peak reverse current of 250 μA indicates low leakage current, aiding in efficient operation and thermal management.

While it does not carry specific automotive or regulatory approvals, this diode is produced under quality manufacturing controls. Originating from China, it represents a reliable and cost-effective component for general purpose rectification needs across the electronics industry.

Typical applications include power supplies, industrial machine electronics, and general control systems. Its robust ratings and compact form make it suitable for various semiconductor discrete devices in commercial and industrial contexts.

This diode features a maximum forward voltage of 985 mV for efficient rectification. It withstands peak non-repetitive forward surge currents up to 200 A for transient conditions. Operates reliably within temperatures ranging from -65°C to 150°C, suitable for industrial environments.

Compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height support high-density PCB mounting. Single diode configuration designed for general purpose rectifier applications in power electronics. Peak reverse recovery time of 2700 ns ensures switching efficiency in power circuits.

Low peak reverse current (250 μA) minimizes leakage, enhancing overall circuit performance. Made in China under strict quality standards but no automotive or special approvals are specified. Explore more Schottky Diodes and Rectifiers for advanced semiconductor solutions by DiodesZetex on EnvMart.
