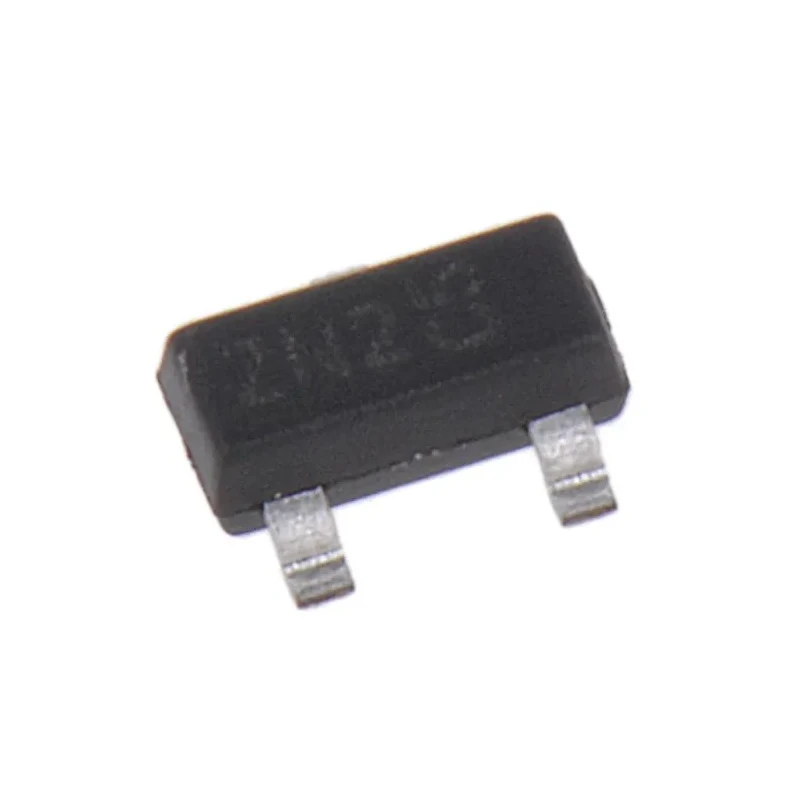

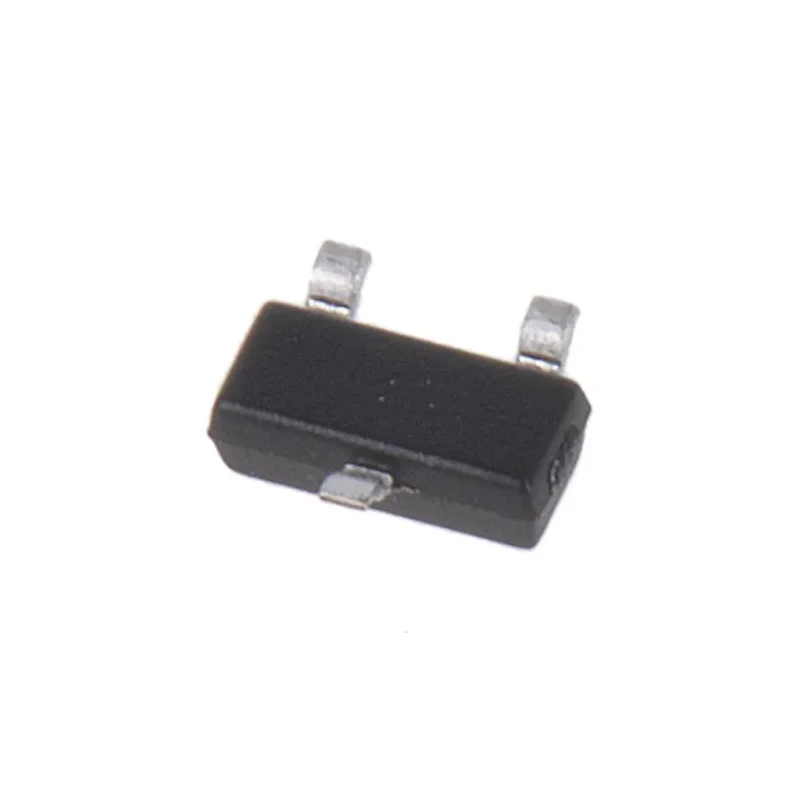

DiodesZetex NPN Transistor, 2 A Collector Current, 40 V Voltage, 600 mW Power Dissipation, 3-Pin SOT-23 Package DSS4240T-7

DiodesZetex DSS4240T-7 is a high-performance NPN bipolar transistor featuring a maximum collector current of 2 amperes and a collector-emitter voltage of up to 40 volts. Housed in a compact 3-pin SOT-23 surface mount package, this transistor is optimized for switching and amplification tasks in electronic circuits.

This component offers a power dissipation capacity of 600 milliwatts, enabling dependable operation in medium-power applications. It supports operating temperatures ranging from -55°C to 150°C, making it suitable for industrial, automotive, and general-purpose electronic uses.

The transistor features a minimum DC current gain (hFE) of 150 and a maximum transition frequency of 100 MHz, ensuring efficient signal amplification and switching speeds. Its small form factor with dimensions 3 mm (length) x 2.5 mm (width) x 1.1 mm (height) facilitates compact PCB designs and effective surface mounting.

Compliant with the automotive industry standard AEC-Q101, the DSS4240T-7 transistor is a reliable choice for automotive electronics and other robust applications requiring quality and durability. It integrates well in industrial controls, consumer electronics, and DIY electronic projects.

Available in reel packaging for high-volume manufacturing processes, this transistor enhances production efficiency by enabling seamless automated insertion. Designed for general purpose switching and amplification applications.

Maximum collector-emitter voltage rated at 40 V. Collector current capacity up to 2 amperes. Maximum power dissipation of 600 milliwatts ensures reliable operation. High minimum DC gain of 150 for effective amplification.

Package type SOT-23 with a pin count of three pins. Operating temperature range from -55°C to 150°C suitable for harsh environments. Automotive standard compliant with AEC-Q101 for quality assurance. Compact dimensions: 3 mm length, 2.5 mm width, 1.1 mm height.

Surface mount technology facilitates automated PCB assembly.

EnvMart recommends this transistor for professionals and hobbyists seeking a dependable NPN transistor solution across a wide range of electronic and automotive applications. Explore the extensive range of semiconductor components available at EnvMart for all your design and production needs.
