| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C8V2-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-35 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 8.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 7Ω |

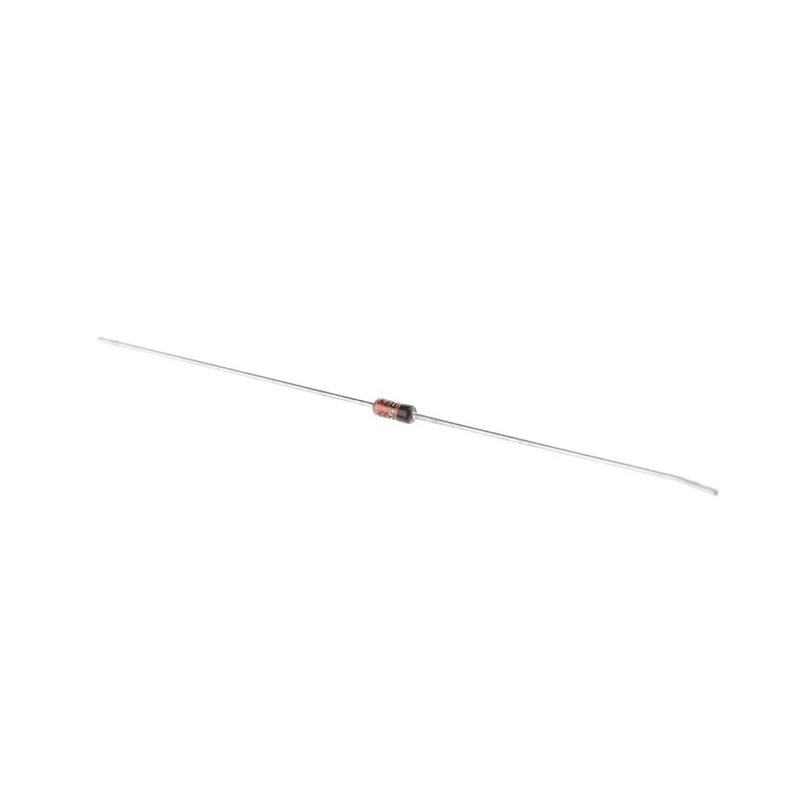

Vishay BZX55C8V2-TAP is a precision single element Zener diode providing a nominal Zener voltage of 8.2 V with a power dissipation capability of 500 mW. Packaged in a through hole 2-pin DO-35 format, this component offers high stability and low noise performance ideally suited for voltage regulation and reference circuits in industrial and automotive electronics.
The diode exhibits a low maximum Zener impedance of 7 ohms and a tight voltage tolerance of ±6%, ensuring accurate voltage stabilization under varying electrical loads. It supports operation over a wide ambient temperature range from -65°C to 175°C, qualified to meet automotive standard AEC-Q101, thus ensuring reliability in harsh environments.
Designed with compact dimensions of 1.7 mm height and 3.9 mm length, the BZX55C8V2-TAP fits efficiently into PCBs where space efficiency is crucial. Its maximum reverse leakage current of 100 nA minimizes power consumption, enhancing overall circuit efficiency. The device is tested at a current of 5 mA to maintain consistent electrical characteristics.
This Zener diode is suitable for use in industrial, automotive, and general electronic equipment requiring stable voltage regulation and reference functions. It is supplied as single units in tape packaging for automated insertion processes, enhancing production efficiency in manufacturing settings.
The diode configuration is single element providing precise voltage regulation. It features a maximum Zener impedance of 7 ohms ensuring stable voltage during operation. This diode operates reliably in temperatures ranging from -65°C to 175°C.
Maximum reverse leakage current is limited to 100 nA minimizing power losses. The device is automotive standard AEC-Q101 qualified for high reliability applications. Compact dimensions of 1.7 mm height and 3.9 mm length make it suitable for space-constrained electronic assemblies.
This Zener Diode is optimized for voltage regulation and voltage reference applications. Test current is rated at 5 mA to ensure consistent performance. Explore Vishay and related semiconductor products on EnvMart for advanced electronics components to support varied industrial and commercial applications.
