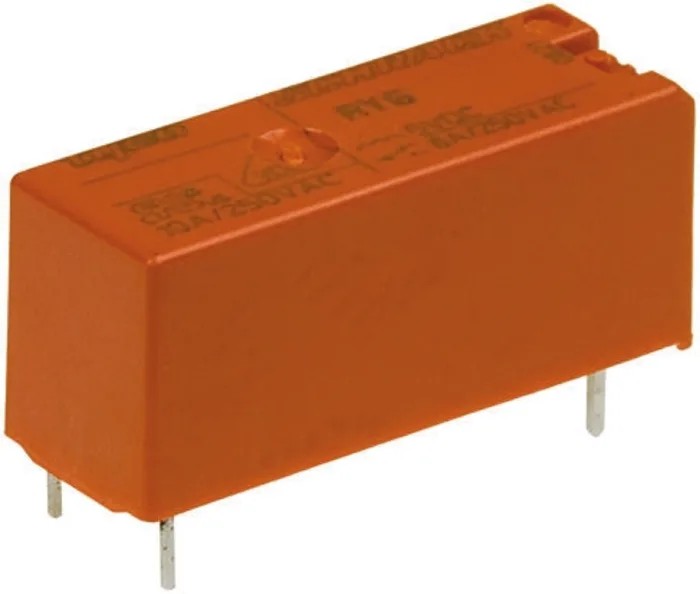

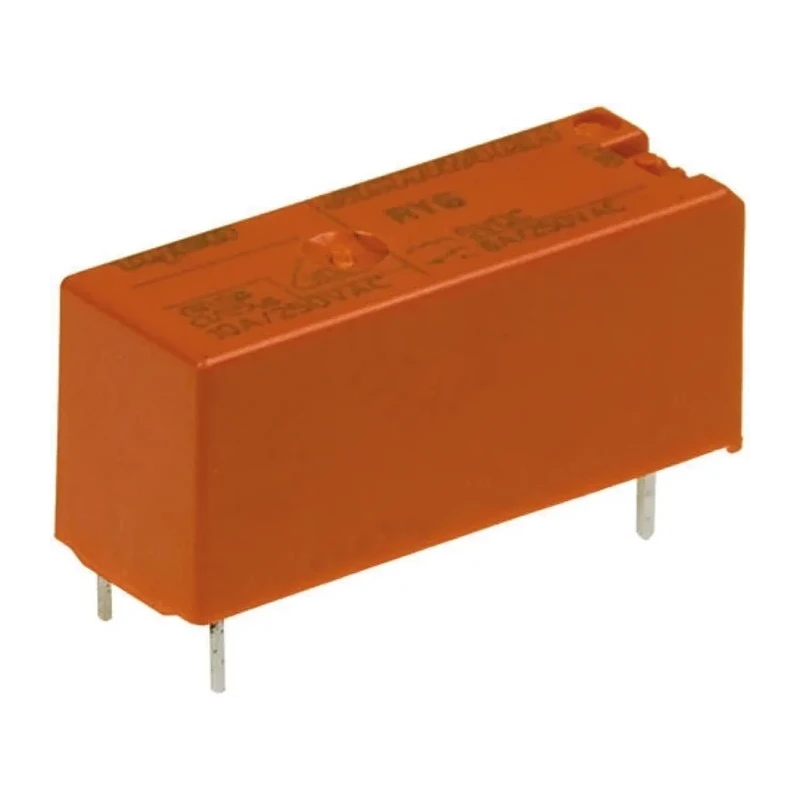

TE Connectivity PCB Power Relay, 12V dc Coil, 8A Switching Current, SPDT RY612012

TE Connectivity RY612012 is a high-quality PCB Power Relay designed for industrial, automation, and electrical control applications. Featuring a 12V dc coil and an 8A switching current, this relay provides reliable single-pole double-throw (SPDT) contact configuration suitable for switching AC voltages up to 400V.

The relay is engineered to operate efficiently within an ambient temperature range of -40°C to 70°C, making it adaptable to harsh environments encountered in manufacturing and industrial settings. Compactly sized at 28.5mm (L) x 10.1mm (W) x 12.3mm (H), it supports PCB mounting with solder terminals ensuring secure and stable electrical connectivity.

With a coil resistance of 627Ω and coil power consumption of only 250mW, this relay is energy efficient and integrates well into power-sensitive designs. The gold plated contact material enhances electrical performance and durability, reducing contact wear and resistance over time.

RY612012 carries essential certifications and approvals including IEC 60335-1, RoHS compliance, and VDE approval, ensuring adherence to international safety and quality standards. Its design includes a 3.2mm pinning and 8mm creepage and clearance distances offering enhanced insulation and safety for industrial electronic circuits.

This relay is manufactured in the Czech Republic under the robust RY II series, reflecting a proven track record for quality. It finds applications widely in automation systems, control panels, power management, and industrial equipment requiring reliable switching performance.

Designed for PCB mounting with solder terminal type ensuring solid electrical connections. Compact dimensions measuring 28.5mm length, 10.1mm width, and 12.3mm height. Operates within a wide temperature range from -40°C to 70°C for versatile industrial applications.

Gold plated contacts increase conductivity and reduce wear for extended durability. Low coil power consumption rated at 250mW for energy efficient operation. Conforms to international standards including IEC 60335-1, RoHS, and VDE approvals.

Rated for switching AC voltage up to 400V and switching power of 2kVAC. Features 3.2mm pinning with 8mm creepage and clearance distances for enhanced safety. Manufactured in the Czech Republic with a robust RY II series design.

Suitable for various industrial, automation, and electrical control applications. Explore more high-quality Power Relays and components in the Electronics & Electricals category at EnvMart for your industrial and automation needs.
