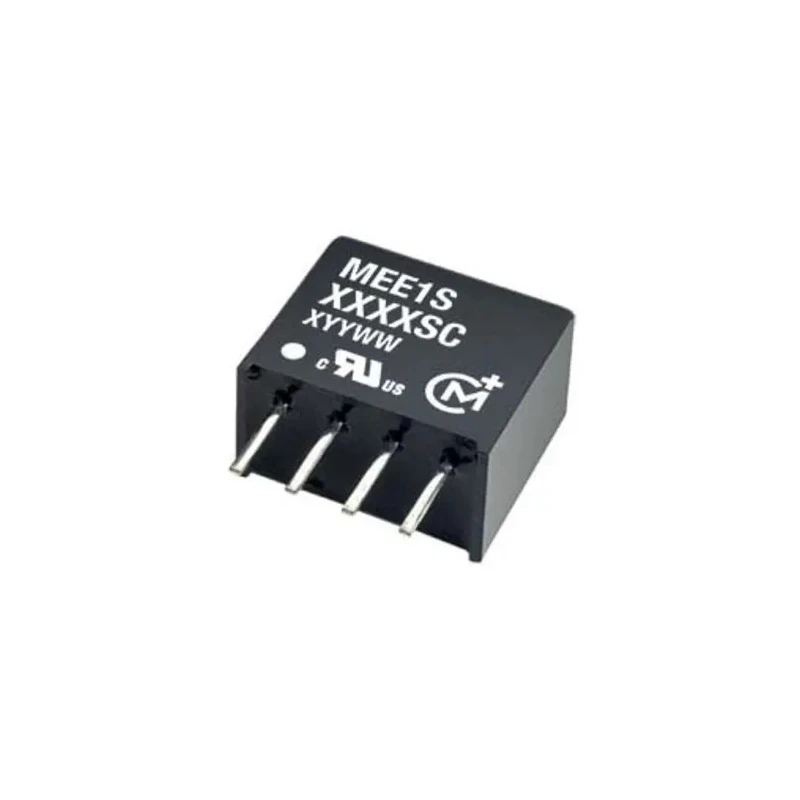

Murata Power Solutions DC/DC Converter 26.4V DC Input 21.6V Input 1 W Max Operating Temp 85 °C Model MEE1

Murata Power Solutions MEE1S2405SC DC/DC Converter is a high-performance power supply device designed to convert DC voltages efficiently within electronic and industrial systems. This converter features a maximum input voltage of 26.4 volts DC and a minimum of 21.6 volts DC, delivering up to 1 watt of output power with an efficiency of 83%, ensuring minimal energy loss during conversion operations.

The converter utilizes a DIP (Dual Inline Package) form factor with precise dimensions of 11.53 mm in width, 11.48 mm in length, and 10 mm in depth, facilitating easy PCB mounting and integration in various hardware designs. It is engineered to withstand harsh environmental conditions, operating reliably across a wide temperature spectrum from a low of -40 degrees Celsius up to a high of 85 degrees Celsius.

Equipped with a galvanic isolation voltage rating of 1kV dc, the MEE1S2405SC significantly reduces switching noise and enhances safety by isolating input and output circuits. This feature makes it particularly valuable for control system boards and sensitive instrumentation applications where electrical noise must be minimized.

The device offers a single isolated output pin configuration, making it an excellent solution for local supply requirements. It maintains industry standard pinouts and is pin compatible with other series such as LME, NME, NKE, and NML, allowing straightforward replacement or redesigns in existing applications.

This DC/DC converter supports a wide input voltage range from 21.6V to 26.4V DC. Maximum output power is 1 watt, with typical efficiency reaching 83% to 87%. Package type is DIP with compact dimensions suitable for PCB mounting.

Operational temperature range is robust from -40°C up to 85°C. Offers galvanic isolation of 1kV DC, reducing electrical noise. Complies with UL 60950 and RoHS directives for safety and environmental standards. Designed for applications in industrial, electronic, laboratory and power management systems.

Power density of 1.305 W/cm³ supports efficient power supply in compact spaces. Pin compatible with LME, NME, NKE, and NML series for flexible application.

This converter is manufactured in China and designed for new applications requiring reliable and efficient DC/DC conversion within constrained spaces and challenging environments. It is widely used in power supplies, electronic controls, and instrumentation in industrial and commercial equipment. For additional products in the DC/DC Converter category or other Murata Power Solutions devices, explore the EnvMart collection.
