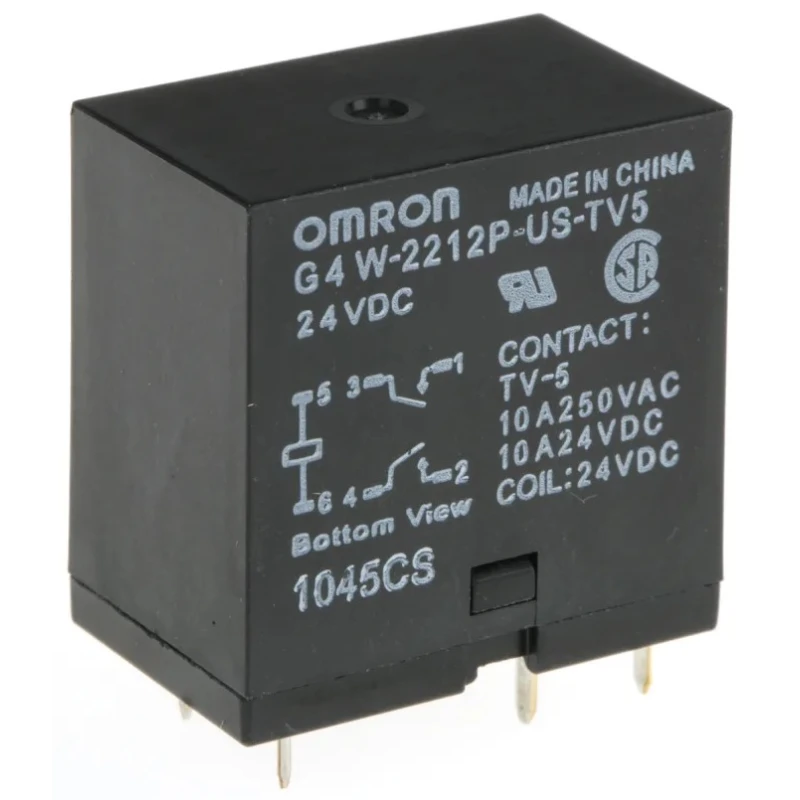

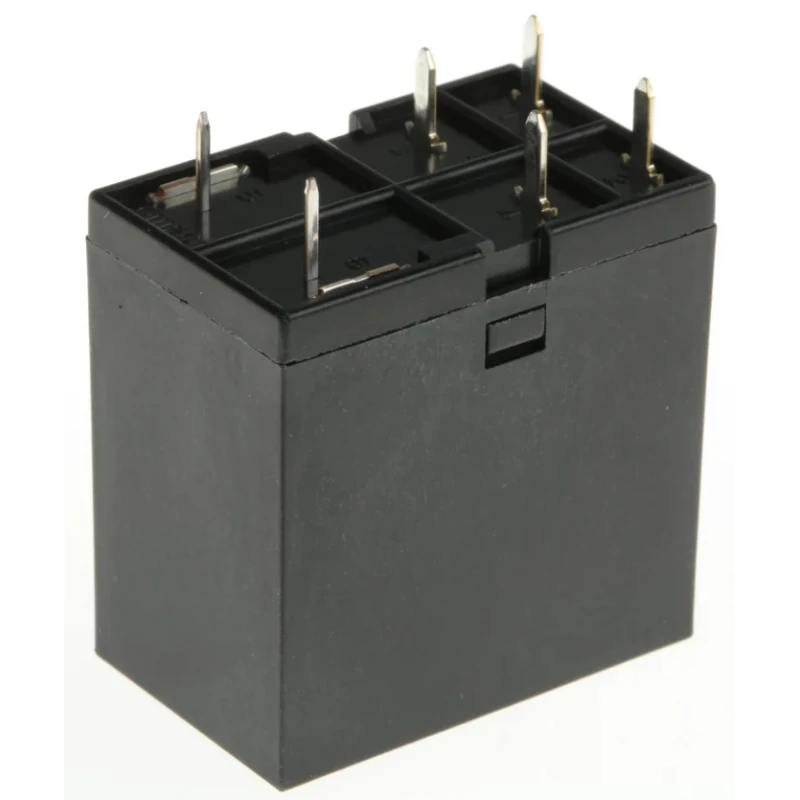

Omron Power Relay PCB Mount DPST 24V DC Coil 10A Switching Current G4W-2212P-US-TV5 DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 30.5mm |
| Length | 30.5mm |
| Model | G4W-2212P-US-TV5 DC24 |
| Width | 19.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G4W |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | CSA, RoHS, UL, VDE |
| Coil Resistance | 720Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.8W |
Key Features
- Coil voltage of 24V DC ensures stable relay operation.
- DPST contact configuration provides double-pole single-throw switching.
- Supports switching current up to 10 amperes.
- Compact size with 30.5mm length, width of 19.5mm, and height of 30.5mm for PCB mounting.
- Operates within temperature range of -25°C to 55°C for diverse environments.
- Low coil power consumption at 0.8W for energy efficiency.
- Silver alloy contact material for durability and reliable conductivity.
- Designed to switch 24V DC and 250V AC loads effectively.
Product Description
Omron G4W-2212P-US-TV5 DC24 Power Relay is a robust PCB-mount power relay featuring a DPST contact configuration and 24V DC coil voltage. It supports a switching current of 10A, making it suitable for various industrial and automation control applications including power supply switching and signal conditioning in electronics.
This relay has a compact design with dimensions 30.5mm by 19.5mm by 30.5mm, facilitating easy integration on circuit boards. Its coil resistance is 720Ω, with low power consumption of 0.8W, helping reduce energy use in control circuits.
Operating temperature range from -25°C to 55°C allows reliable function in harsh environments. The silver alloy contacts ensure excellent conductivity and long-term durability. The relay supports switching voltages of 24V DC and up to 250V AC loads, enabling versatility in different circuits.
It meets rigorous international standards including CSA, RoHS, UL, and VDE approvals, assuring high quality and compliance. The relay is also designed with an impulse withstand voltage of 10,000V between input coil and contact output, providing robust insulation and reliability.
This Omron relay is ideal for industrial, manufacturing, automation, HVAC, and laboratory applications, where dependable power relay switching is critical. It facilitates effective control in compact PCB assemblies and enhances overall system reliability.
Coil voltage of 24V DC ensures stable relay operation. DPST contact configuration provides double-pole single-throw switching. Supports switching current up to 10 amperes. Compact size enables easy PCB mounting integration.
Wide operating temperature range of -25°C to 55°C. Low coil power consumption enhances energy efficiency. Silver alloy contact material ensures durability. Switches 24V DC and 250V AC voltages effectively. Complies with CSA, RoHS, UL, and VDE standards.
Impulse withstand voltage rating of 10,000V for reliable insulation. Explore more Power Relays and contactors for industrial and automation needs within the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC, ensuring stable operation during use.
This model supports a maximum switching current of 10 amperes.
The relay has a compact size with dimensions of 30.5mm in length, 19.5mm in width, and 30.5mm in height.
It features a DPST (Double-Pole Single-Throw) contact configuration, allowing for versatile switching applications.
The relay operates effectively within a temperature range of -25°C to 55°C, suitable for various environments.
The coil power consumption is low at 0.8W, contributing to energy efficiency in control circuits.
The contacts are made of silver alloy, which ensures reliable conductivity and durability.
It is designed to switch 24V DC and up to 250V AC loads effectively.
The relay features solder terminal types for secure connections on PCB.
It complies with several standards including CSA, RoHS, UL, and VDE, ensuring quality and compliance.
The impulse withstand voltage rating is 10,000V between the input coil and contact output, providing robust insulation.
This relay is suitable for various industrial and automation control applications, including power supply switching and signal conditioning.
