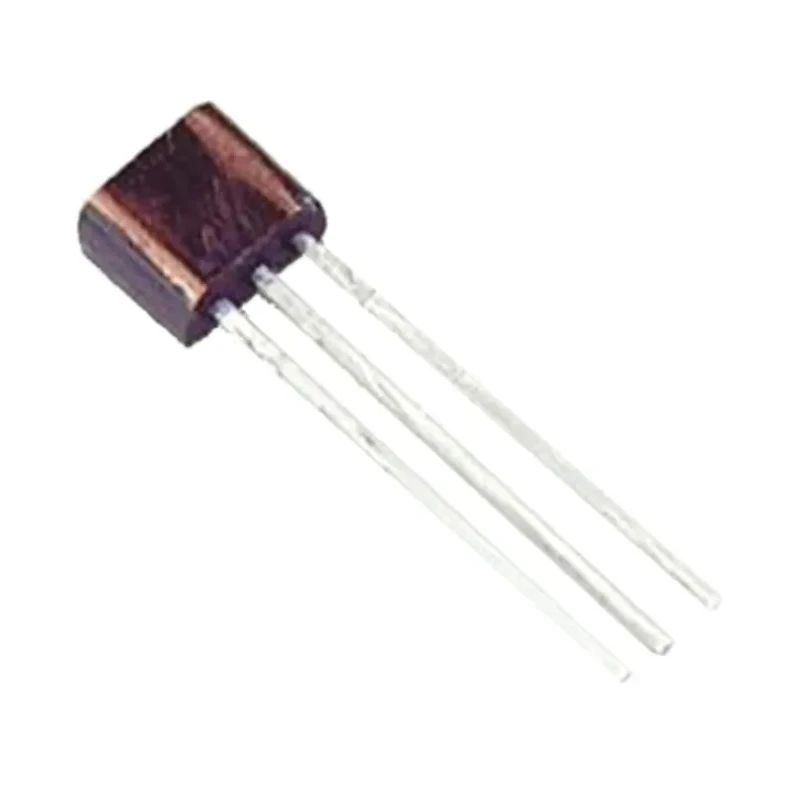

DiodesZetex NPN Transistor ZTX653STZ 2 A 100 V, 3-Pin TO-92 Package

DiodesZetex ZTX653STZ is a high-performance NPN bipolar transistor designed for general-purpose electronic applications. It supports a maximum DC collector current of 2 amps and can withstand collector emitter voltages up to 100 volts. The transistor comes in a compact 3-pin TO-92 through-hole package, making it ideal for hand assembly or automated insertion in printed circuit boards.

This transistor offers a minimum DC current gain of 100, which ensures efficient signal amplification for digital and analog circuits. The power dissipation rating of 1 watt provides reliability under moderate load conditions.

With a high transition frequency of 175 MHz, the ZTX653STZ is suitable for high-speed switching applications in communication and signal processing equipment. The transistor maintains stable operation over a wide temperature range from -55°C to 200°C, meeting the demands of industrial and commercial environments.

The NPN polarity type makes it compatible with standard transistor circuits requiring switching or amplification. The maximum collector base voltage of 120 volts safeguards against voltage spikes to ensure longevity and robust operation.

The TO-92 package is widely used for discrete transistors and facilitates easy mounting and replacement in various circuits. Through-hole mount type enhances mechanical stability on PCBs. Suitable for industrial, laboratory, and consumer electronics.

Robust semiconductor design from Diodes Inc for high reliability. Ideal for switching, amplification, and general-purpose transistor functions. Explore more Bipolar Transistors and semiconductor components in EnvMart's extensive electronics catalog for industrial and commercial applications.
